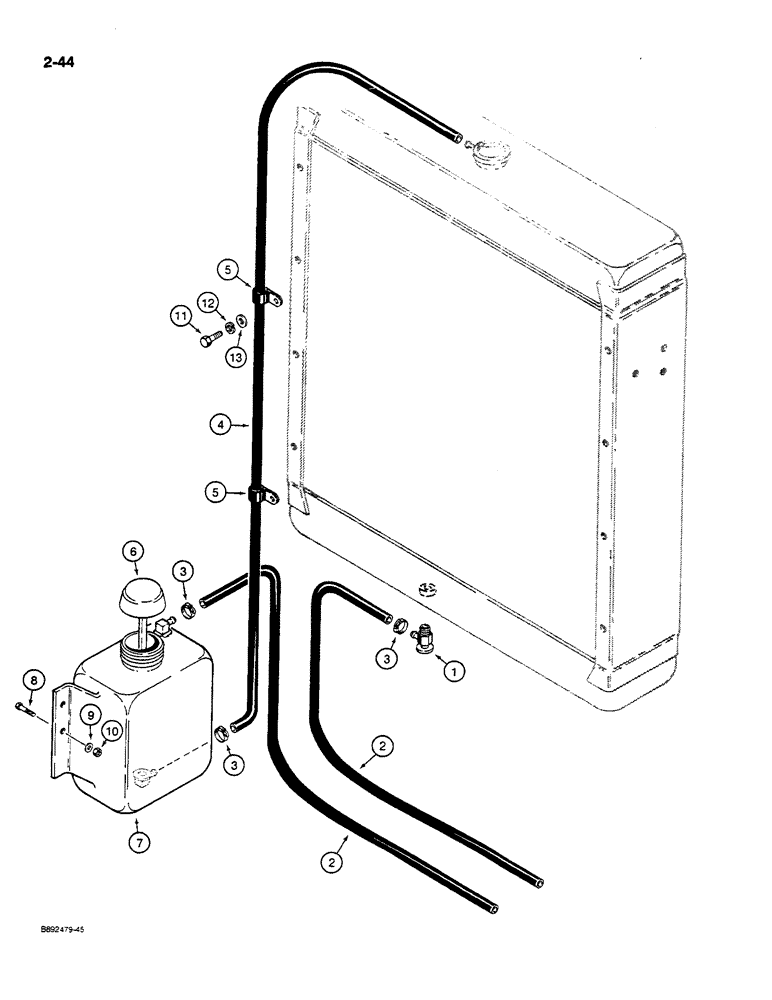

Запчасти Case W14C (2-44) - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

A27862

COCK, DRAIN

VALVE - radiator drain

1шт.

2

D94979

FUEL HOSE,7.90 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

HOSE 7.90 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

2шт.

3

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj. #4, 0.25/0.62 Type F Worm

3шт.

4

A171087

HOSE,7.50 mm ID, 8.30 mm ID x 1275.00 mm, SAE J30

Cut from L126767 hose, See below 7.50 mm ID, 8.30 mm ID x 1275.00 mm, SAE J30

1шт.

5

49768

CLIP

- hose

2шт.

6

1547924C1

CAP

- coolant recovery reservoir (replaces A184079 )

1шт.

Ref: #6 Per ECN C920172, A184079 cap made by Flambeau, is replaced by (No Sub) New Cap 1547924C1 made by Kelch. Old #A184079 is retained for other applications.

1шт.

7

L127093

RESERVOIR

RESERVOIR - coolant recovery

1шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

9

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

10

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

S120317

HOSE,0.31" ID x 300.00", SAE 30R2 Type 1

0.31" ID x 300.00", SAE 30R2 Type 1

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.
