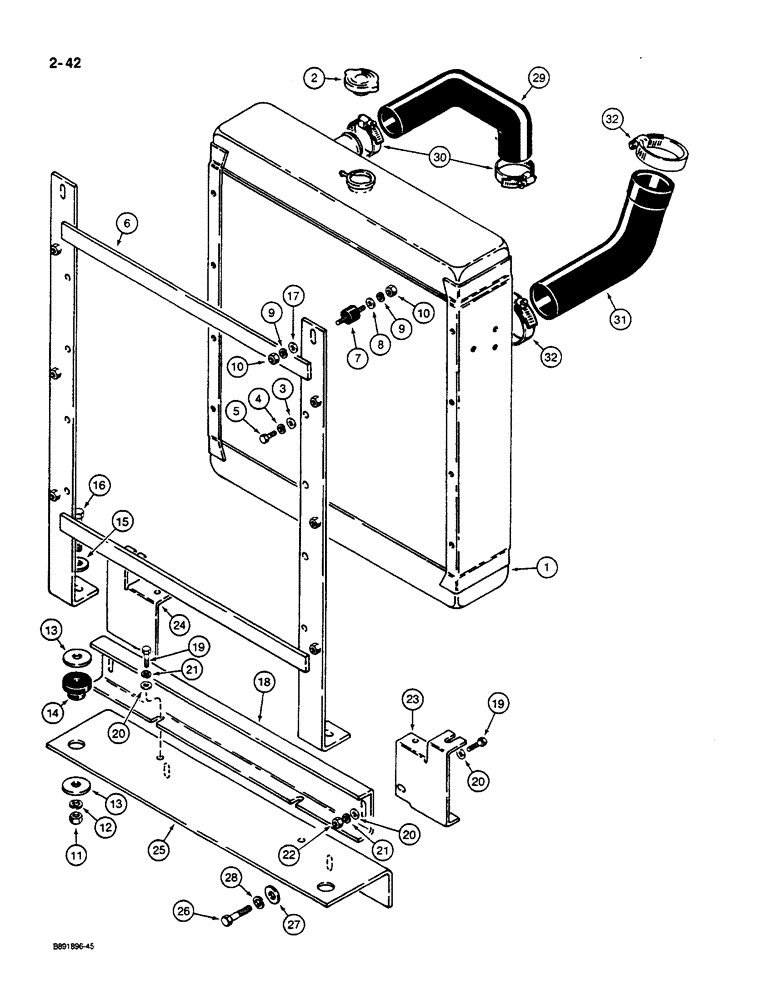

Запчасти Case W14C (2-42) - RADIATOR MOUNTING (02) - ENGINE

1

A172534

RADIATOR

- cooling

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

8шт.

4

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

8шт.

6

L114557

SUPPORT

- radiator

1шт.

7

L127163

BOLT

BOLT - special

2шт.

8

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

9

492-11038

LOCK WASHER,3/8"

4шт.

10

425-106

NUT,3/8"-16, Cl 5

4шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

13

195-2260

WASHER,5/8" x 2" x .095"

- flat, 1/2 inch

4шт.

14

L46821

SHOCK ABSORBER

BUSHING - rubber, radiator mount

2шт.

15

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

16

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

17

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- special, hardened

2шт.

18

L113037

PLATE

BAFFLE - air, lower

1шт.

19

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

20

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

425-106

NUT,3/8"-16, Cl 5

2шт.

23

L113984

BAFFLE

- air, right-hand

1шт.

24

L113985

BAFFLE

- air, left-hand

1шт.

25

L113032

BRACKET

- radiator mounting

1шт.

26

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

27

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

29

L112580

RADIATOR HOSE,44.50 mm ID x 301.60 mm, SAE 20R4 Class SC or D-1

- Upper, Formed 44.50 mm ID x 301.60 mm, SAE 20R4 Class SC or D-1

1шт.

30

214-176

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

CLAMP - adj, 1-3/4 - 2-5/8 inch dia

2шт.

31

L112579

RADIATOR HOSE

Lower, Formed

1шт.

32

214-177

CLIP

CLAMP - adj, 2-1/4 to 3-1/8 inch dia

2шт.
