Запчасти Case W14C (2-38) - PISTONS, 6T-590 ENGINE (02) - ENGINE

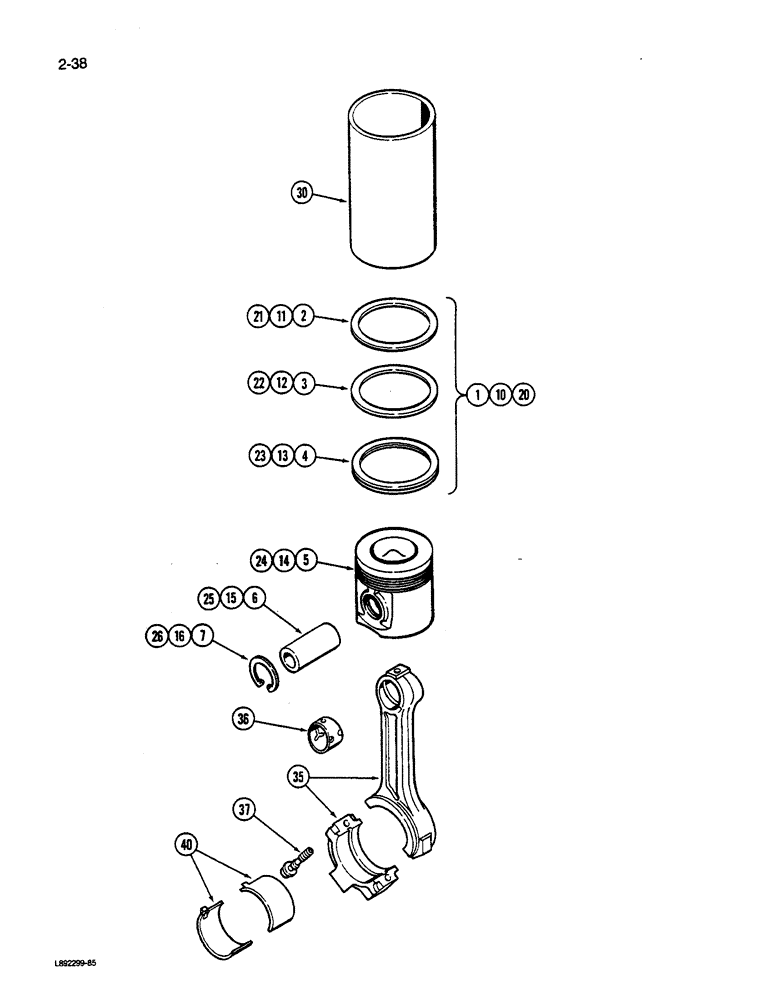

Схема запчастей Case W14C - (2-38) - PISTONS, 6T-590 ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

A77419

PISTON

KIT - engine (Standard)

6шт.

1

A77500

PISTON RING SET

RING KIT - piston (Standard)

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

4

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - cylinder (Standard) (Stamped 7163)

1шт.

6

J901793

PISTON PIN

PIN - piston

1шт.

7

J901706

RING

- retainer, pin

2шт.

A77638

PISTON

KIT - engine (0.5 mm oversize)

6шт.

10

A77501

PISTON RING SET

RING KIT - engine (0.5 mm oversize)

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

12

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

13

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - cylinder (0.5 mm oversize) (Stamped 8815)

1шт.

15

J901793

PISTON PIN

PIN - piston

1шт.

16

J901706

RING

- retainer, pin

2шт.

A77637

PISTON

KIT - engine (1.0 mm oversize)

6шт.

20

A77502

PISTON RING SET

RING KIT - engine (1.0 mm oversize)

1шт.

21

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

22

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

23

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - cylinder (1.0 mm oversize) (Stamped 8816)

1шт.

25

J901793

PISTON PIN

PIN - piston

1шт.

26

J901706

RING

- retainer, pin

2шт.

30

J904166

SLEEVE

LINER - piston (Used only in engine block repair)(When liner is installed, use only A77419 piston kit)

1шт.

35

J901569

ROD, CONNECTING

ROD ASSEMBLY - connecting, new

6шт.

35

JR901569

ROD

Assembly - connecting, remanufactured

6шт.

35

JC901569

CORE-ROD CONNECTING

Return Number - use this part number to return connecting rod for credit

6шт.

35

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

35

JC942581

CORE-ROD CONNECTING

Return Number - use this part number to return connecting rod for credit

6шт.

35

84145405R

REMAN-CONNECTING ROD

W14C, Reman For New PN J901569

6шт.

35

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

36

NSS

NOT SOLD SEPARAT

BUSHING - rod to piston pin (Order J901569), connecting

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex special, 11 mm - 1 x 26 mm, connecting rods

2шт.

40

A77465

BEARING SET

BEARING KIT - connecting rod (set, upper and lower, standard)

6шт.

40

A77466

BEARING SET

BEARING KIT - connecting rod (set, upper and lower,0.25 mm undersize)

6шт.

40

A77467

BEARING LINER

BEARING KIT - connecting rod (set, upper and lower,0.5 mm undersize)

6шт.

40

A77468

BEARING SET

BEARING KIT - connecting rod (set, upper and lower,0.76 mm undersize)

6шт.

40

A77469

BEARING SET

BEARING KIT - connecting rod (set, upper and lower,1.0 mm undersize)

6шт.

Выбрано товаров: 39
