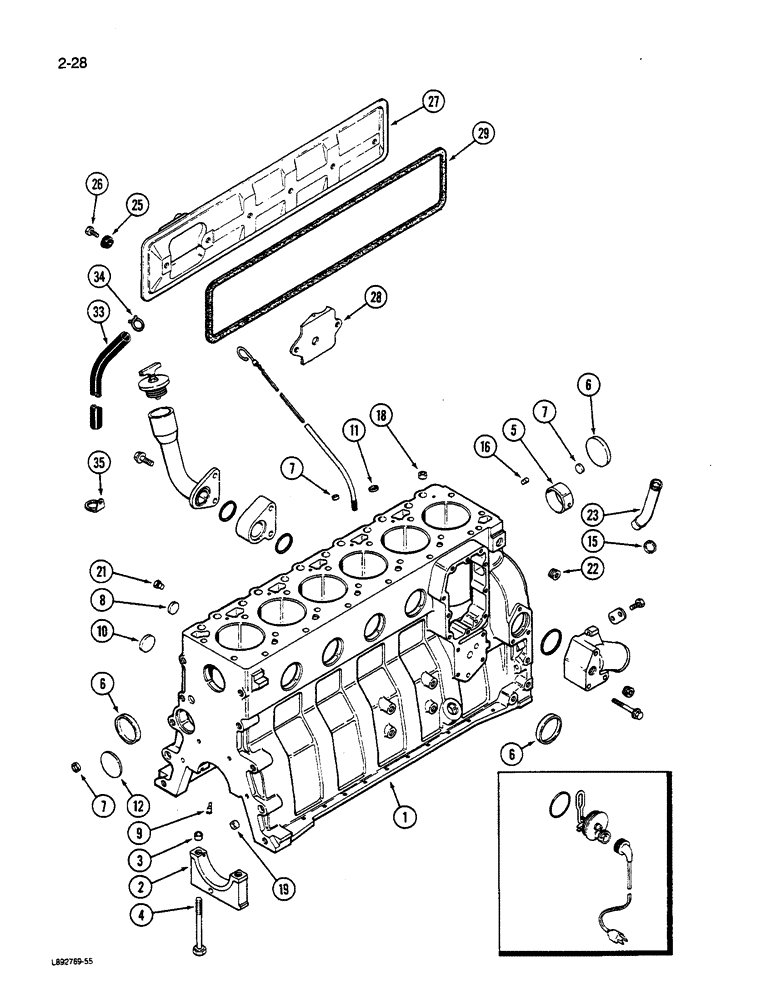

Запчасти Case W14C (2-28) - CYLINDER BLOCK, 6T-590 ENGINE (02) - ENGINE

A174171

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe)

1шт.

1989096C3R

REMAN-BASIC ENGINE

W14C

1шт.

1989096C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

JR910510

ENGINE, EXCHANGE

Engine (Exchange) Block Assembly - engine short, remanufactured

1шт.

JC910510

CORE-ENGINE

Return Part Number - engine short block (Use this part number to return block core for credit)

1шт.

J910510

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine (New)(Includes stripped block pistons, connecting rods and bearings, crankshaft and bearings) (Order block and J905813 kit)

1шт.

1

J905810

CRANKCASE

BLOCK ASSEMBLY - stripped engine (Order block and J905813 kit)

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front (See Figure 2-34)

1шт.

6

J900965

PLUG

PLUG - expansion, 58 mm OD

6шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

A77539

PLUG

PLUG - expansion, 26 mm

4шт.

J905813

PACKAGE, REPAIR

KIT - block hardware

1шт.

9

J901020

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

2шт.

12

J900687

PLUG

PLUG - expansion, (Welch) 60 mm OD

1шт.

15

A77439

PLUG

PLUG - expansion, 0.886 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, locating, 16 mm

2шт.

18

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

PLUG - hex socket pipe, 1/8-27 PT

2шт.

22

A77429

PLUG

PLUG - hex socket pipe, 1/2-14 PT

1шт.

23

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

25

J900267

SEAL

SEAL ASSEMBLY - cover bolt

4шт.

26

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

4шт.

27

J911822

COVER

COVER - tappet

1шт.

28

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

29

J904776

GASKET

GASKET - tappet cover

1шт.

33

J906593

HOSE

Breather

1шт.

34

J904230

CLAMP,25.4mm

CLAMP - spring hose

1шт.

35

J909670

CLIP

CLIP - retaining

1шт.
