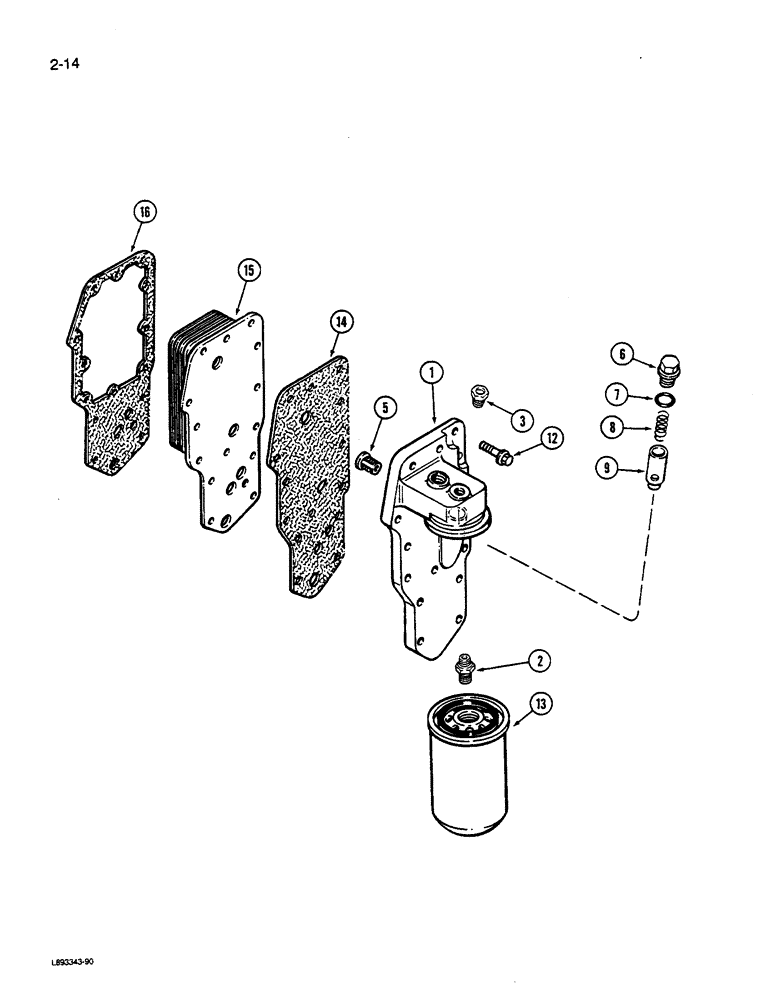

Запчасти Case W14C (2-14) - OIL FILTER AND COOLER, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

J915243

FILTER COVER

HEAD ASSEMBLY - with adapter

1шт.

1

J909352

FILTER COVER

HEAD ASSEMBLY - filter and cooler (Order J915243)

1шт.

2

J909355

ADAPTER

- filter head

1шт.

3

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 PT

1шт.

5

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

6

J915787

PLUG

- pipe

1шт.

7

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing

1шт.

8

J903261

SPRING

- compression

1шт.

9

J914084

VALVE

PLUNGER - regulator, pressure

1шт.

12

J900632

FLANGE BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

BOLT - hex flange head, 8 mm - 1.25 x 35 mm

14шт.

13

J908615

FILTER

- engine oil

1шт.

14

J912532

GASKET

- filter head

1шт.

15

J911940

HEAT-EXCHANGER

CORE - cooler, oil

1шт.

16

J914387

GASKET

- cooler core

1шт.
