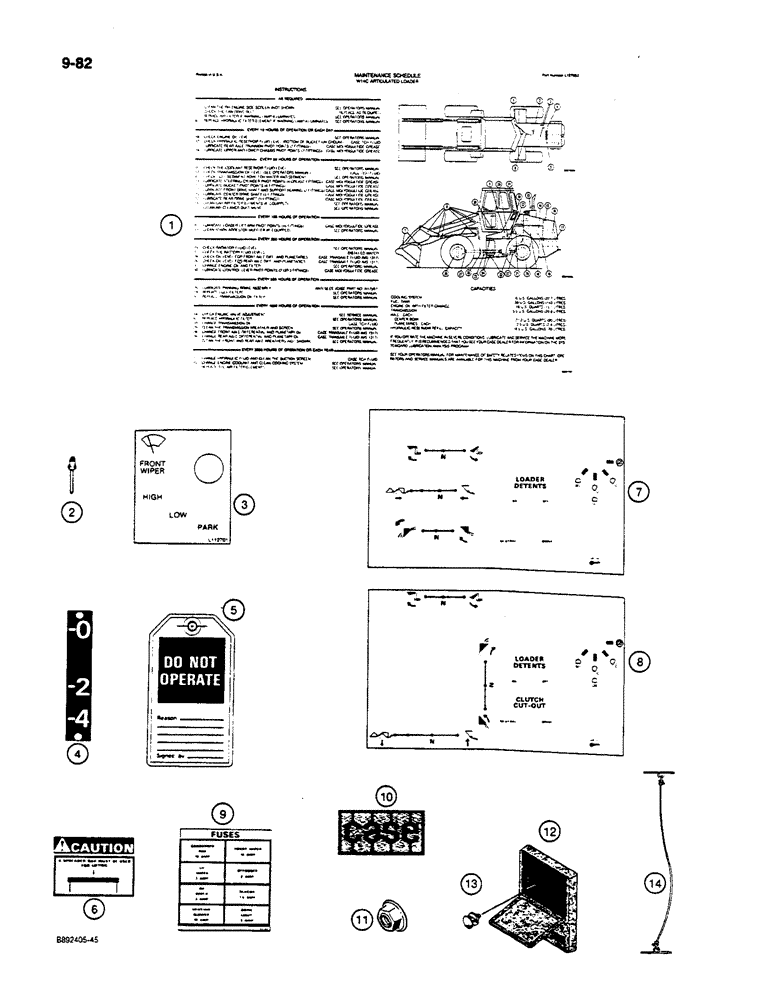

Запчасти Case W14C (9-82) - DECALS AND OPERATORS MANUAL BOX (09) - CHASSIS/ATTACHMENTS

1

L127652

BOARD

DECAL - Maintenance Schedule

1шт.

2

151-525

RIVET,Pop, 1/8" x .275"

- pop, 1/8 x 15/64 inch

4шт.

3

L112701

DECAL

- front wiper, if used

1шт.

4

L114181

DECAL

- clam bucket opening indicator, if used, see Figure 9-16 for hardware

1шт.

5

321-4614

TAG

- do not operate

1шт.

6

321-3574

DECAL

- spreader bar, if used

2шт.

7

L127497

DECAL

- console, individual levers control pattern, if used

1шт.

Ref: #7 L127497 Decal - Contains Words "Clutch cut-out"

1шт.

8

L127494

DECAL

- console, combination lever control pattern, if used

1шт.

9

R52564

DECAL

- fuses in cab, attaches to right-hand interior side panel, if used

1шт.

10

321-4739

EMBLEM

- Case, metal

1шт.

11

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push, self threading, 1/4 inch, attaches emblem to grille

2шт.

12

A177376

BOX

- operators manual, attaches to loader control tower

1шт.

13

A162364

FASTENER

- special, operators manual box

3шт.

14

A141917

ROPE

CORD -, Serial Range: manual-box

1шт.

Ref. A & B parts had this decal but Rev. C dropped it in error. A revision will be made to add it back in.

1шт.
