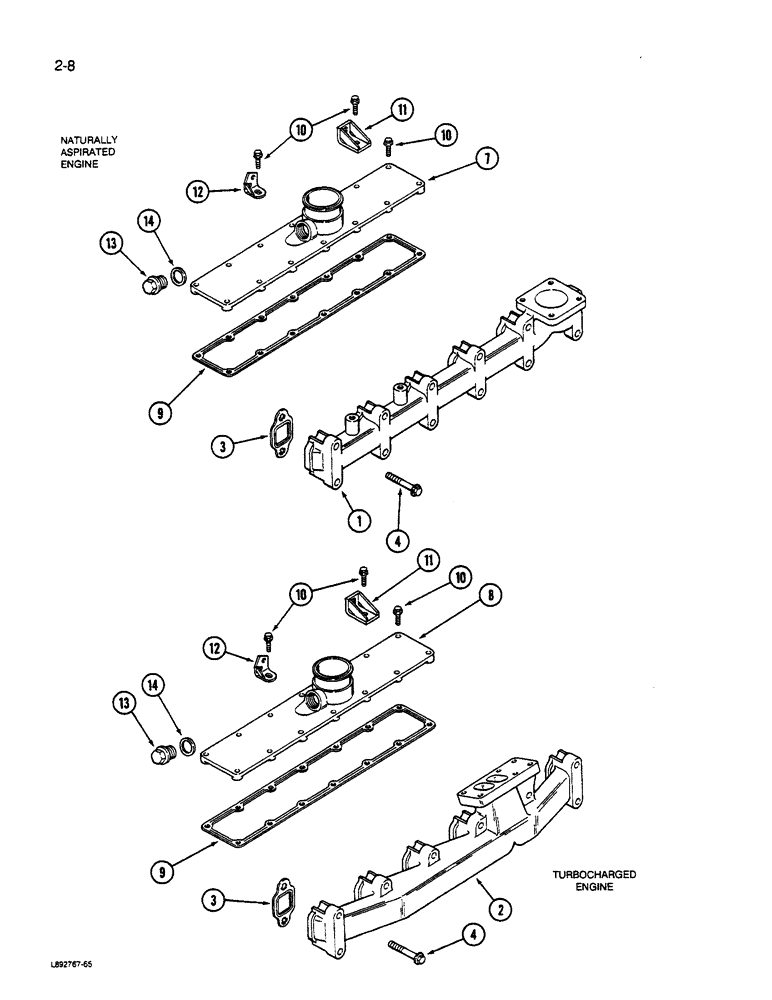

Запчасти Case W14C (2-08) - MANIFOLDS, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

1

J901326

MANIFOLD

- exhaust, naturally aspirated

1шт.

1

J901683

MANIFOLD

- exhaust, turbocharged

1шт.

2

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

3

J901448

FLANGE BOLT,Hex, M10 x 65mm

BOLT - hex flange, 10 - 1.50 x 65 mm

12шт.

7

NSS

NOT SOLD SEPARAT

COVER - intake manifold, naturally aspirated (Order A77417 kit)

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - intake manifold, turbocharged (Order A77418 kit)

1шт.

9

J914029

GASKET

- intake cover

1шт.

10

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

- flanged hex, 8 x 16 mm, intake

2шт.

11

REF

INSTRUCTION

BRACKET - fuel line (See Page 3-08), intake

2шт.

12

REF

INSTRUCTION

BRACKET - fuel line (See Page 3-08), intake

2шт.

13

J907185

PLUG

ASSEMBLY - manifold (If equipped), intake

1шт.

14

J906773

WASHER

- plug sealing (If equipped), intake

1шт.

A77417

VALVE

INTAKE MANIFOLD KIT - naturally aspirated (Includes Ref. 7, 13 and 14)

1шт.

A77418

KIT

INTAKE MANIFOLD KIT - turbocharged (Includes Ref. 8, 13 and 14)

1шт.
