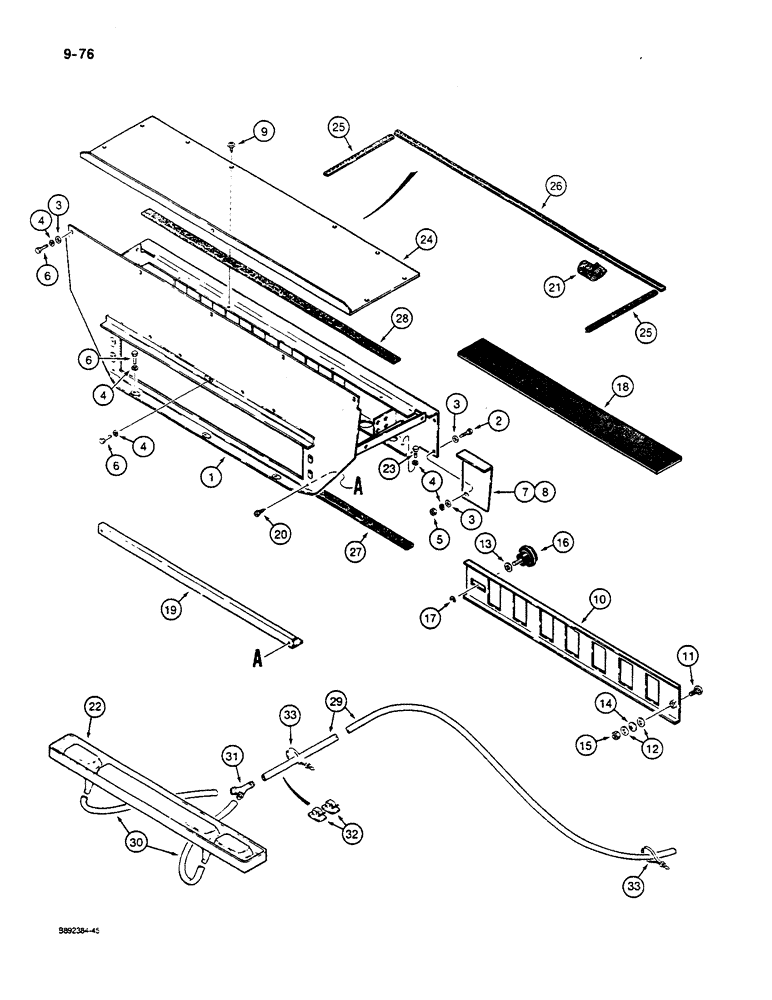

Запчасти Case W14C (9-76) - CAB VENTILATION COMPARTMENT, AND AIR CONDITIONING DRAIN (09) - CHASSIS/ATTACHMENTS

1

F96788

DUCT

PLENUM - heating and air conditioning

1шт.

2

187-1900

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - hex washer head, 1/4 NC x 3/4 inch

4шт.

3

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

13шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

13шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

6

187-1900

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - hex washer head, 1/4 NC x 3/4 inch

9шт.

7

F45309

PLATE

- seal, left-hand

1шт.

8

F45310

PLATE

- seal, right-hand

1шт.

9

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - special, self-tapping, Phillips head, with washer, No. 10 - 16 x 3/4 inch

8шт.

10

F96827

COVER ASSY

PLATE - sliding, air circulation

1шт.

11

111-255

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5

1шт.

12

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

13

F64867

WASHER

- special, plastic

1шт.

14

D71411

WASHER

- bowed

1шт.

15

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 inch NC

1шт.

16

F64253

KNOB

- sliding plate

1шт.

17

T39518

SNAP RING,#25, Ext

Ring, Snap, , knob #25, Ext

1шт.

18

F63671

SEAL

- rubber, top of evaporator core, adheres to top cover models with heating and air conditioning

1шт.

19

F45043

SEAL

BRACKET - heater core seal, models with only heating

1шт.

20

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer head, slotted, self-tap, No 10 x 1/2 inch, use with item 19 only

2шт.

21

345-45

TAPE

- duct, 2 inch (51 mm) x 20 ft (7 m) long, grey vinyl, covers slots in cab floor plate on models with air conditioning drain pan

1шт.

22

F64529

PAN

- condensation drain, air conditioning

1шт.

23

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

24

R53889

COVER

- plenum, one piece

1шт.

25

R54171

FOAM

SEAL - foam, 11-1/4 inch (257 mm) long, plenum cover end, for service cut from R54172 seal, item 26

2шт.

26

R54172

FOAM

SEAL - foam, 41 inch (1040 mm) long, plenum cover

1шт.

27

R54173

FOAM

SEAL - foam, 38 inch (970 mm) long, plenum base, for service cut from item 28, R54174 seal, item 28

1шт.

28

R54174

FOAM

SEAL - foam, 45 inch (1140 mm) long, plenum top edge

1шт.

29

L110304

TUBE,12.7 mm OD x 1600 mm L

- drain, 63 inch (1600 mm) long, air conditioning, cut from S118404 bulk tube, see below

1шт.

30

L110305

TUBE,12.7 mm OD x 450 mm L

- drain, 17-3/4 inch (450 mm) long, air conditioning, cut from S118404 bulk tube, see below

2шт.

31

L109362

CONNECTOR, ELEC

CONNECTOR - drain tubes, air conditioning

1шт.

32

L100659

CLIP

- drain tubes

4шт.

33

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

S118404

HOSE,600.00", SAE J844

- Tube, Bulk 600.00", SAE J844

1шт.
