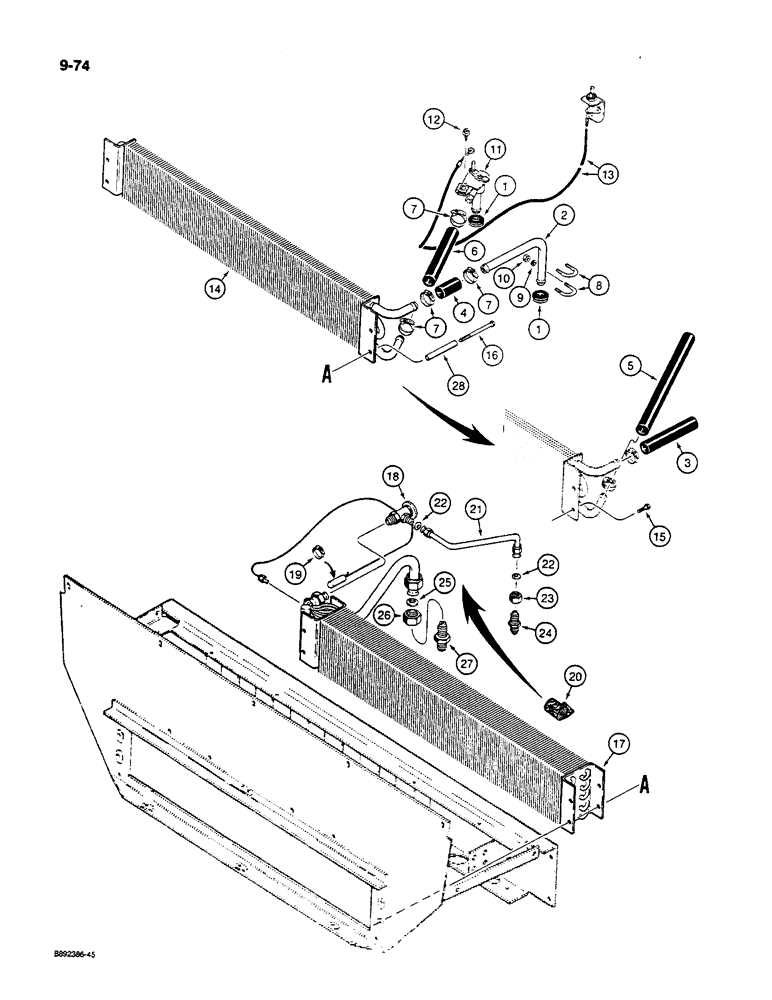

Запчасти Case W14C (9-74) - HEATING AND AIR CONDITIONING CORES AND CONNECTIONS (09) - CHASSIS/ATTACHMENTS

1

A37563

GROMMET

- heating tubes at cab floor plate

2шт.

2

R53523

HEATER TUBE,15.88 mm OD x 192, 115 mm L

TUBE - heating return

1шт.

3

1975733C1

HEATER HOSE,15.50 mm ID x 180.00 mm

HOSE , Heater Core, Upper, Cut from 97252C1 bulk, Models with only heating 15.50 mm ID x 180.00 mm

1шт.

4

R54967

HEATER HOSE,15.50 mm ID x 70.00 mm

- Core, Upper, Cut from 97252C1 bulk, Models with heating and air conditioning 15.50 mm ID x 70.00 mm

1шт.

5

1975734C1

HEATER HOSE,15.50 mm ID x 250.00 mm

HOSE , Heater Core, Lower, Cut from 97252C1 bulk, Models with only heating 15.50 mm ID x 250.00 mm

1шт.

6

1975733C1

HEATER HOSE,15.50 mm ID x 180.00 mm

HOSE , Heater Core, Lower, Cut from 97252C1 bulk, Models with heating and air conditioning 15.50 mm ID x 180.00 mm

1шт.

7

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, #24

4шт.

8

L78949

U-BOLT

- heating return tube

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

11

R54333

VALVE

- flow control, heater

1шт.

12

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer head, slotted, self-tap, No 10 x 1/2 inch

1шт.

13

L108188

CABLE

- heating control

1шт.

14

L106940

RADIATOR

CORE - heater

1шт.

15

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Models with heating only Hex, 1/4"-20 x 1/2", G5, Full Thd

4шт.

16

113-50

BOLT,Hex, 1/4" - 20 x 3-1/2", Gr 5

- hex, 1/4 NC x 3-1/2 inch, models with heating and air conditioning

4шт.

17

L106912

EVAPORATOR

CORE - evaporator, air conditioning

1шт.

18

F64389

VALVE

- expansion, air conditioning

1шт.

19

98157C1

CLAMP

- expansion valve sensor

1шт.

20

A42902

SEALING STRIP

TAPE - cork, insulating, bulk roll, 360 inch (91,400 mm) long

1шт.

21

L107292

TUBE,0.375" OD

- from expansion valve

1шт.

22

222-993

GASKET,3/8 Tube, Fl, Copper

(9 mm) 3/8 Tube, Fl, Copper

2шт.

23

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex jam, 5/8 inch NF

1шт.

24

L107840

FITTING

ADAPTER - bulkhead, expansion valve tube

1шт.

25

222-995

SEALING WASHER,15.88mm ID

- copper, 5/8 inch (16 mm)

1шт.

26

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

1шт.

27

L107841

FITTING

ADAPTER - bulkhead, evaporator core tube

1шт.

28

14233L

SPACER,3/8" Pipe x 2 7/8"

- heater core, models with heating and air conditioning

4шт.

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

1шт.
