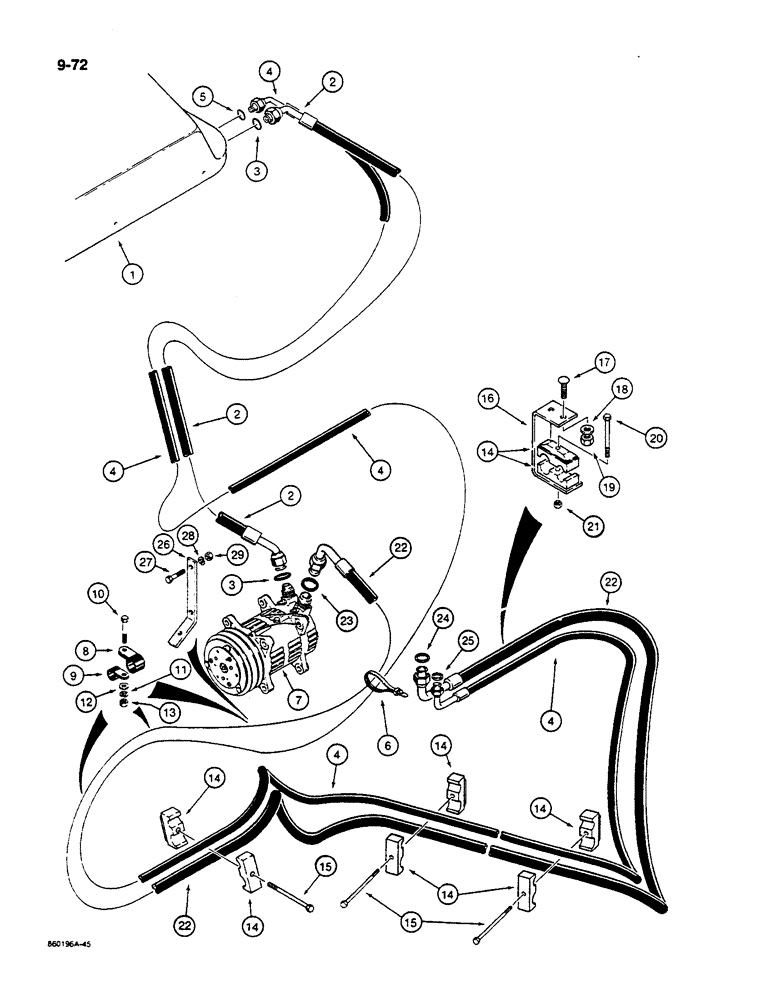

Запчасти Case W14C (9-72) - CONDENSER AND COMPRESSOR TO EVAPORATOR CORE (09) - CHASSIS/ATTACHMENTS

1

L115234

CONDENSER

ASSEMBLY - air conditioning, parts list Figure 9-66, for mounting parts see Figure 9-64

1шт.

2

L114458

HOSE ASSY.

HOSE - 483 mm long, Serial Range: condenser-compressor

1шт.

3

N13633

O-RING,7/16" ID x 1/16" Width

- hose

2шт.

4

L114460

HOSE ASSY.

HOSE - 4490 mm long, condenser to evaporator core in cab

1шт.

5

A61198

O-RING,0.07" Thk x 0.301" ID, -11

- hose, at condenser

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

7

A177564

COMPRESSOR

ASSEMBLY - parts list on Figure 9-70, mounting parts on Figure 9-68

1шт.

8

R24840

CLAMP,1.12", Coat, 0.41" Bolt Hole, P Type

- P-style, 1-1/8 inch ID

2шт.

9

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- P-style, 3/4 inch ID

2шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), if used 3/8"

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

L115096

CLAMP

- double, includes both plastic halves and top steel plate

4шт.

15

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

3шт.

16

L114538

BRACKET

- hose clamps, bolts to front main frame

1шт.

17

111-371

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", Full Thd

2шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

425-106

NUT,3/8"-16, Cl 5

2шт.

20

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

1шт.

21

131-351

LOCK NUT,5/16"-18, GA

NUT - hex lock, 5/16 inch NC

1шт.

22

L114457

HOSE ASSY.

HOSE - 4128 mm long, evaporator core in cab to compressor, return

1шт.

23

N13634

O-RING,9/16" ID x 1/16" Width

- hose

1шт.

24

222-995

SEALING WASHER,15.88mm ID

- copper, 5/8 inch (16 mm)

1шт.

25

222-993

GASKET,3/8 Tube, Fl, Copper

(9 mm) 3/8 Tube, Fl, Copper

1шт.

26

L118417

BRACKET

- hose support, at hydraulic tank

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

425-106

NUT,3/8"-16, Cl 5

2шт.
