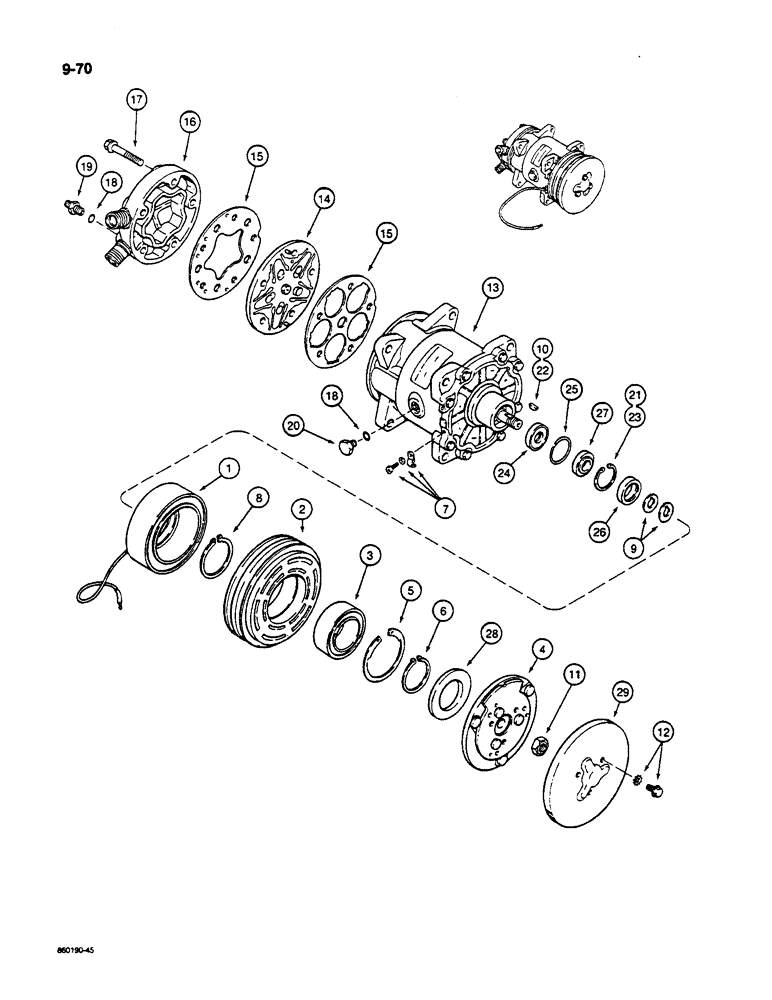

Запчасти Case W14C (9-70) - AIR CONDITIONING COMPRESSOR ASSEMBLY (09) - CHASSIS/ATTACHMENTS

A177564

COMPRESSOR

ASSEMBLY - air conditioning

1шт.

A49705

CLUTCH

ASSEMBLY - compressor

1шт.

1

A49704

COIL

- 24 volt

1шт.

2

A49660

PULLEY ASSY.

PULLEY ASSEMBLY - drive, two groove

1шт.

3

A49663

BALL BEARING,40 mm ID x 62 mm OD x 24 mm

BEARING - pulley

1шт.

4

A49677

PLATE

- front

1шт.

5

NSS

NOT SOLD SEPARAT

RING - snap, pulley

1шт.

A49673

KIT

- accessory, clutch

1шт.

6

NSS

NOT SOLD SEPARAT

RING - snap, clutch

1шт.

7

NSS

NOT SOLD SEPARAT

CLAMP - lead wire, includes hardware which is not serviced separately

1шт.

8

NSS

NOT SOLD SEPARAT

RING - snap, clutch

1шт.

9

NSS

NOT SOLD SEPARAT

SHIM - clutch

1шт.

10

NSS

NOT SOLD SEPARAT

KEY - clutch drive

1шт.

11

NSS

NOT SOLD SEPARAT

NUT - retainer

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - includes lock washer, retainer

1шт.

A49672

COMPRESSOR

ASSEMBLY - field

1шт.

13

NSS

NOT SOLD SEPARAT

BLOCK ASSEMBLY - compressor, component parts not serviced separately

1шт.

14

A49662

PLATE

ASSEMBLY - valve

1шт.

15

A49668

GASKET KIT

KIT - gasket, includes two valve plates

1шт.

16

A49661

HEAD (CYLINDER)

HEAD - cylinder

1шт.

17

A49669

SCREW,Cylinder

BOLT - hex flange head

5шт.

18

A49666

O-RING

- rubber

3шт.

19

A49670

PORT

FITTING - service port

2шт.

20

A49667

PLUG

- oil, filler

1шт.

21

A49664

CIRCLIP

RING - snap, seal seat

1шт.

22

A49671

KEY

- shaft, compressor

1шт.

A49665

SEAL KIT

KIT - seal, compressor

1шт.

23

A49664

CIRCLIP

RING - snap, compressor

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - housing

1шт.

26

NSS

NOT SOLD SEPARAT

RING - felt

1шт.

27

NSS

NOT SOLD SEPARAT

SEAT - seal, shaft

1шт.

28

A49674

BEARING COVER,36 mm ID x 62 mm OD x 1.2, 4.2 mm

COVER - dust, bearing

1шт.

29

A49675

COVER

- dust, clutch

1шт.
