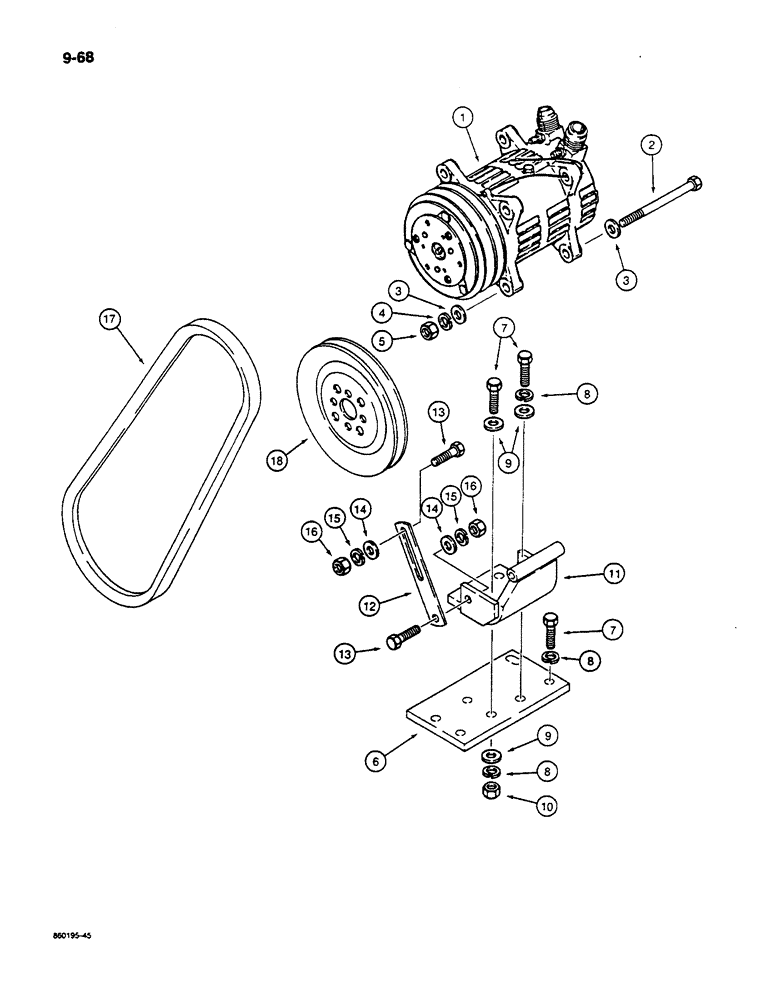

Запчасти Case W14C (9-68) - AIR CONDITIONING COMPRESSOR AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

A177564

COMPRESSOR

ASSEMBLY - air conditioning, parts list Figure 9-70

1шт.

2

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, 10 - 1.5 x 130 mm

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

4

892-11010

LOCK WASHER,M10

1шт.

5

825-1110

NUT,M10, Cl 8

hex M10, Cl 8

1шт.

6

A177345

PLATE

- compressor mounting

1шт.

7

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

5шт.

8

892-11010

LOCK WASHER,M10

5шт.

9

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

5шт.

10

825-1110

NUT,M10, Cl 8

hex M10, Cl 8

2шт.

11

A177341

BRACKET

- compressor mounting

1шт.

12

K207316

STRAP

- compressor adjusting

2шт.

13

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

14

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

15

892-11010

LOCK WASHER,M10

4шт.

16

825-1110

NUT,M10, Cl 8

hex M10, Cl 8

4шт.

17

A75577

V-BELT,0.50" W

Compressor Drive 0.50" W

1шт.

18

A189155

PULLEY

- compressor drive

1шт.
