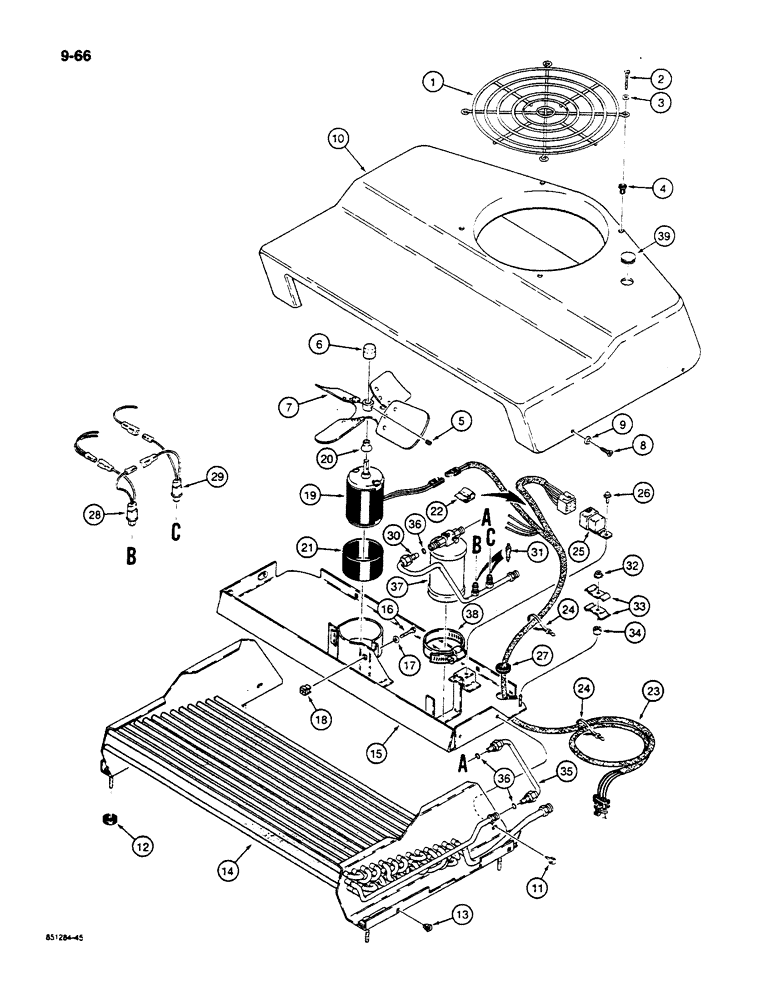

Запчасти Case W14C (9-66) - AIR CONDITIONING CONDENSER (09) - CHASSIS/ATTACHMENTS

1

L117107

GUARD

- fan

1шт.

L115234

CONDENSER

ASSEMBLY - air conditioner

1шт.

2

182-529

SCREW,Sl Pan Hd, #10 - 32 x 1 1/2"

- machine, pan head slotted, No. 10 NF x 1-1/2 inch

4шт.

3

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch

4шт.

4

N13336

FASTENER

- special, plastic push-in with threads

4шт.

5

178-413

SET SCREW,Hex Soc, #10-24 x 1/4"

SCREW - set, hex socket headless, No. 10 NC x 1/4 inch, flat

1шт.

6

NSS

NOT SOLD SEPARAT

CAP - fan shaft

1шт.

7

N9945

FAN

- condenser

1шт.

8

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, oval Phillips head, No. 10 x 3/4 inch

6шт.

9

F63765

WASHER

- special

6шт.

10

N13337

COVER

- condenser

1шт.

11

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - hex washer head, self-tapping, 1/4 x 1/2 inch

4шт.

12

N7911

BUMPER

SPACER - rubber

4шт.

13

131-648

SPRING NUT,Tinn, U, #10-24

- U-type, No. 10 inch NC

6шт.

14

N13138

COIL

- condenser

1шт.

15

NSS

NOT SOLD SEPARAT

BASE - condenser

1шт.

16

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

17

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

1шт.

18

131-852

SPRING NUT,Ret, 1/4"-20

1шт.

19

N9946

MOTOR

- 24 volt

1шт.

20

NSS

NOT SOLD SEPARAT

SLINGER - motor

1шт.

21

D83118

ISOLATOR

INSULATOR - motor

1шт.

22

NSS

NOT SOLD SEPARAT

CLIP - harness, plastic stick-on

1шт.

23

N13141

HARNESS

- condenser

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

25

N9948

RELAY

- condenser

1шт.

26

193-522

SCREW,SEMS, Hex Hd, #10-32 x 5/8"

- mach, hex, No. 10 NC x 5/8 inch, ext tooth lock washer

1шт.

27

N13338

GROMMET

- harness

1шт.

28

N13137

SWITCH

- low pressure

1шт.

29

R48818

IGNITION SWITCH

SWITCH - high pressure

1шт.

30

N13143

TUBE

- condenser

1шт.

31

N13140

CORE

STEM - senser

2шт.

32

193-1006

NUT,Keps, w/LW, 1/4"-20

- with lock washer, 1/4 inch NC

1шт.

33

NSS

NOT SOLD SEPARAT

CLAMP - tube

2шт.

34

D45998

SPACER

- clamp

1шт.

35

N13139

TUBE

- receiver-drier

1шт.

36

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Drier

3шт.

37

N13142

AIR CONDITIONER

RECEIVER-DRIER - condenser

1шт.

38

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - adj, 3-9/16 to 4-1/2 inch dia

1шт.

39

353-252

PLUG,1"

- button, 1 inch

1шт.
