Запчасти Case W14C (9-64) - AIR CONDITIONING CONDENSER AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

L115234

CONDENSER

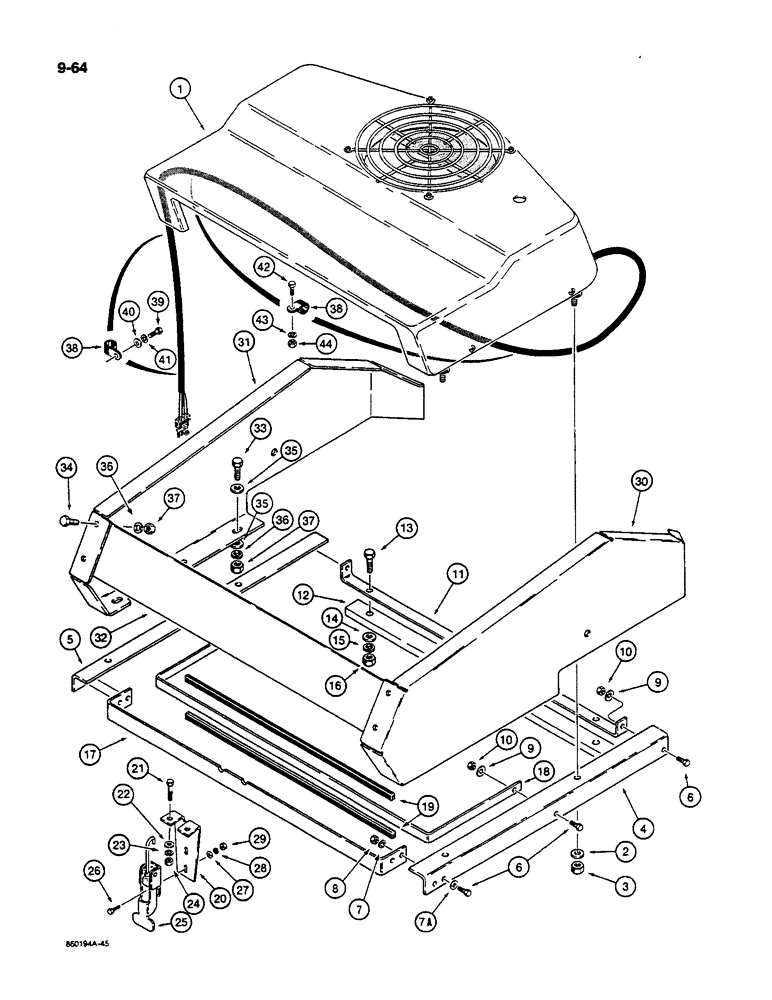

- air conditioning, parts list Figure 9-66

1шт.

2

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

3

131-351

LOCK NUT,5/16"-18, GA

NUT - hex lock, 5/16 inch NC

4шт.

4

L116721

SUPPORT

BRACKET - condenser mounting, right-hand

1шт.

5

L116720

SUPPORT

BRACKET - condenser mounting, left-hand

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

7a

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

8

425-106

NUT,3/8"-16, Cl 5

4шт.

9

L105055

WASHER

SPRING - belleville, side bracket mounting

4шт.

10

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

4шт.

11

L114418

BRACKET

- condenser mounting, front

1шт.

12

L116005

PLATE

- condenser mounting, front

1шт.

13

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

14

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

17

L115478

BASE

BRACKET - rear of condenser, latch retaining

1шт.

18

L116718

SUPPORT

- condenser mounting

1шт.

19

L114499

MOLDING

TRIM - bracket and support, 23-5/8 inch (600 mm) long, cut from F42827, see below

2шт.

20

L115524

BRACKET

- hood, latch mounting

1шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

22

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

23

492-11038

LOCK WASHER,3/8"

2шт.

24

425-106

NUT,3/8"-16, Cl 5

2шт.

25

L114483

LATCH

- condenser retaining

1шт.

26

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

27

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

2шт.

28

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

30

L117139

GUARD

- air conditioning condenser, right-hand

1шт.

31

L117140

GUARD

- air conditioning condenser, left-hand

1шт.

32

L117247

PLATE ASSY.

GUARD - rear, air conditioning condenser

1шт.

33

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

34

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

35

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

12шт.

36

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

10шт.

37

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

10шт.

38

49845

CLAMP

- harness, air conditioning condenser to hood and radiator

4шт.

39

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 16 mm

2шт.

40

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch

2шт.

41

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

42

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

43

492-11038

LOCK WASHER,3/8"

2шт.

44

425-106

NUT,3/8"-16, Cl 5

2шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 116 inch (2946 mm) long

1шт.
