Запчасти Case W14C (9-62) - HEATING LINES (09) - CHASSIS/ATTACHMENTS

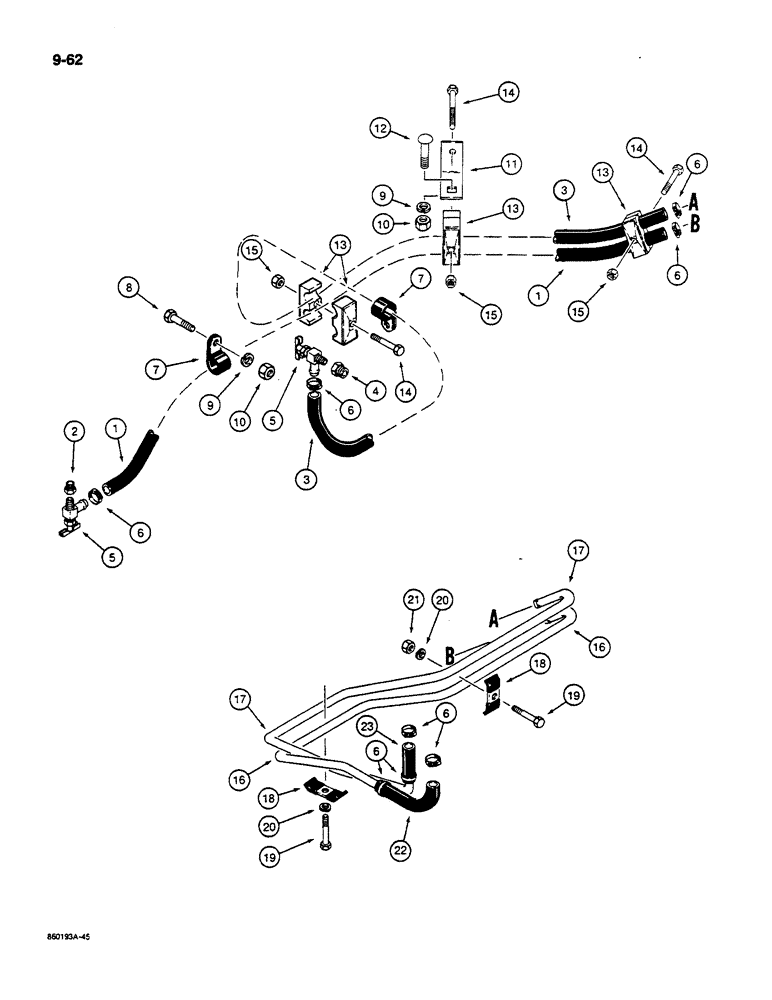

Схема запчастей Case W14C - (9-62) - HEATING LINES (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

L19220

HOSE ASSY.,0.63" ID x 87.00", SAE 20R3 Class R

HEATER HOSE - Heating return to water pump, Suction side, Cut from 97252C1, See below 0.63" ID x 87.00", SAE 20R3 Class R

1шт.

2

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2 to 3/8 inch PT, at water pump

1шт.

3

L114579

HOSE

- 5/8 inch (16 mm) x 91 inch (2311 mm) long, heating supply from engine water manifold, cut from 97252C1, see below

1шт.

4

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

Bushing, at engine manifold Hex, 3/4" x 3/8" NPT

1шт.

5

A16764

VALVE

- shutoff, heating lines

2шт.

6

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - adj, 9/16 to 1-1/16 inch dia

8шт.

7

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- P-style, hoses

2шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

425-106

NUT,3/8"-16, Cl 5

2шт.

11

L116227

BRACKET

- clamp mounting

1шт.

12

111-320

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

1шт.

13

L107932

CLAMP

- double, includes both plastic halves and top steel plate, which are not serviced separately

3шт.

14

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

3шт.

15

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

3шт.

16

L117180

HEATER TUBE,15.87 mm OD

TUBE - heating return, lower

1шт.

17

L117179

HEATER TUBE,15.87 mm OD

TUBE - heating supply, upper

1шт.

18

D33316

CLAMP

- heating tubes

2шт.

19

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

22

1975868C1

HEATER HOSE,15.00 mm ID x 89.00 mm

HOSE , 90 Degree Bend, Heating Return Line at Cab Floor 15.00 mm ID x 89.00 mm

1шт.

23

F43183

HEATER HOSE

HOSE - straight, to heating flow control valve, supply line, 2 inch (51 mm) long, cut from 97252C1, see below

1шт.

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

1шт.

Выбрано товаров: 24
