Запчасти Case W14C (2-06) - FRONT GEAR COVER, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

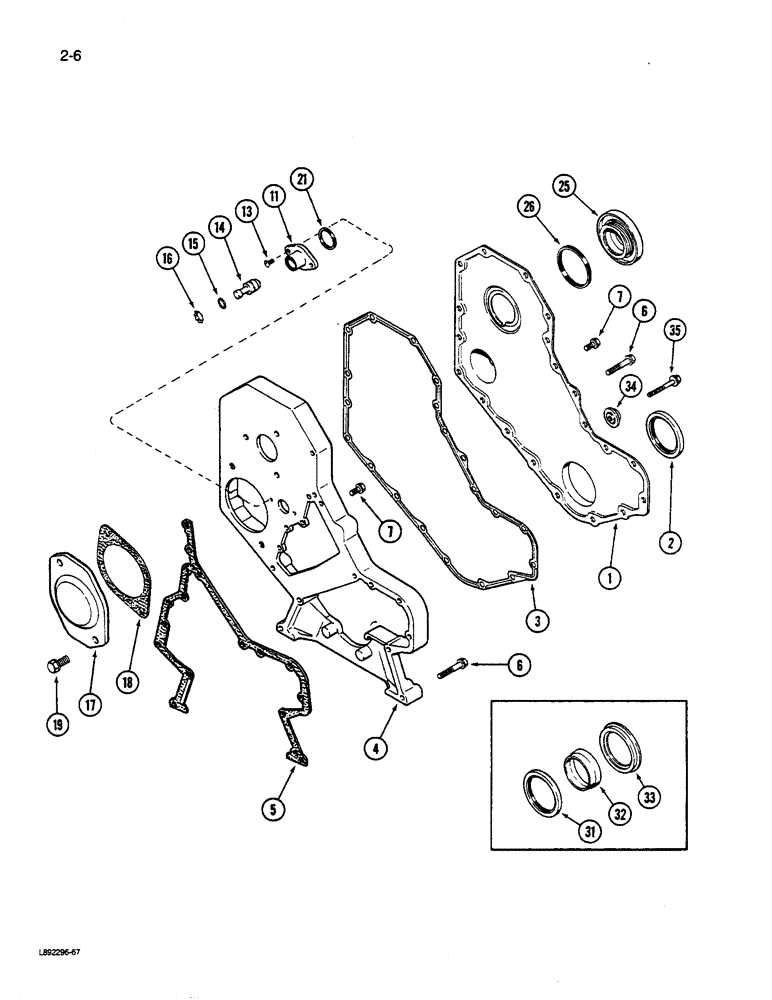

Схема запчастей Case W14C - (2-06) - FRONT GEAR COVER, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

J903794

COVER

- gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, crankcase front (Order Ref.30)

1шт.

3

J914385

GASKET,1.02mm Thk

- front cover

1шт.

4

J910411

HOUSING

- timing gear

1шт.

5

J916131

GASKET

- gear housing

1шт.

6

J900633

BOLT,Hex Flg, M8 x 50mm, Cl 8.8

- hex, 8 mm - 1.25 x 50 mm

10шт.

7

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

16шт.

11

J905933

HOUSING

- timing pin

1шт.

13

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

14

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

15

J913994

O-RING

- sealing

1шт.

16

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

17

J909918

PLATE

- cover, access

1шт.

18

J913192

GASKET

- cover plate

1шт.

19

J901249

FLANGE BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT - hex flange, 12 - 1.75 x 25 mm

2шт.

21

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING, rectangular

1шт.

25

J903463

PLUG,M63 x 5

- front access

1шт.

26

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover

1шт.

J904353

GASKET KIT

SEAL KIT - oil, crankshaft front

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

34

J912772

RETAINER

- bolt

1шт.

35

J901446

FLANGE BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 60 mm

1шт.

Выбрано товаров: 24
