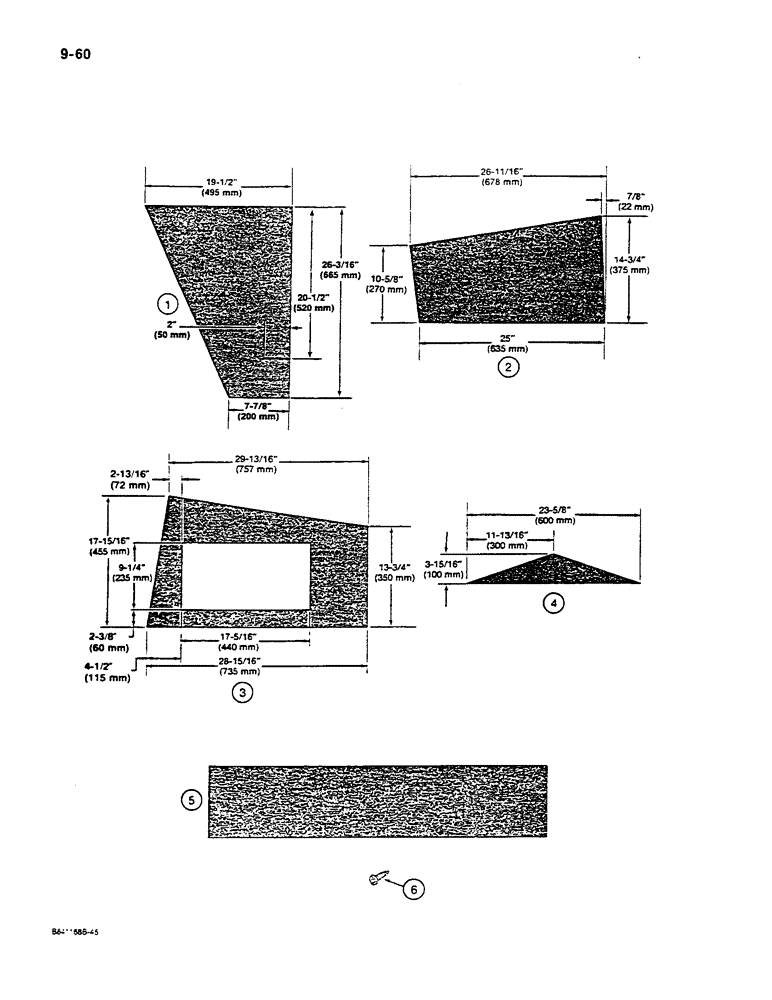

Запчасти Case W14C (9-60) - CAB NOISE REDUCTION AND ANTIRECIRCULATION PADS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

PAD - rear sides of cab, cut from R30870

2шт.

2

REF

INSTRUCTION

PAD - below rear filters, cut from R30870

2шт.

3

REF

INSTRUCTION

PAD - around rear filters, cut from R30870

2шт.

4

REF

INSTRUCTION

PAD - cab blower mounting plate, below blower, cut from R30870

1шт.

5

L112310

PAD

- antirecirculation, cab blower area

1шт.

6

L111437

SCREW

RETAINER - item 5 pad

7шт.

R30870

PAD

- bulk, 54 inch (1372 mm) x 72 inch (1829 mm) x 1 inch (25 mm)

1шт.
