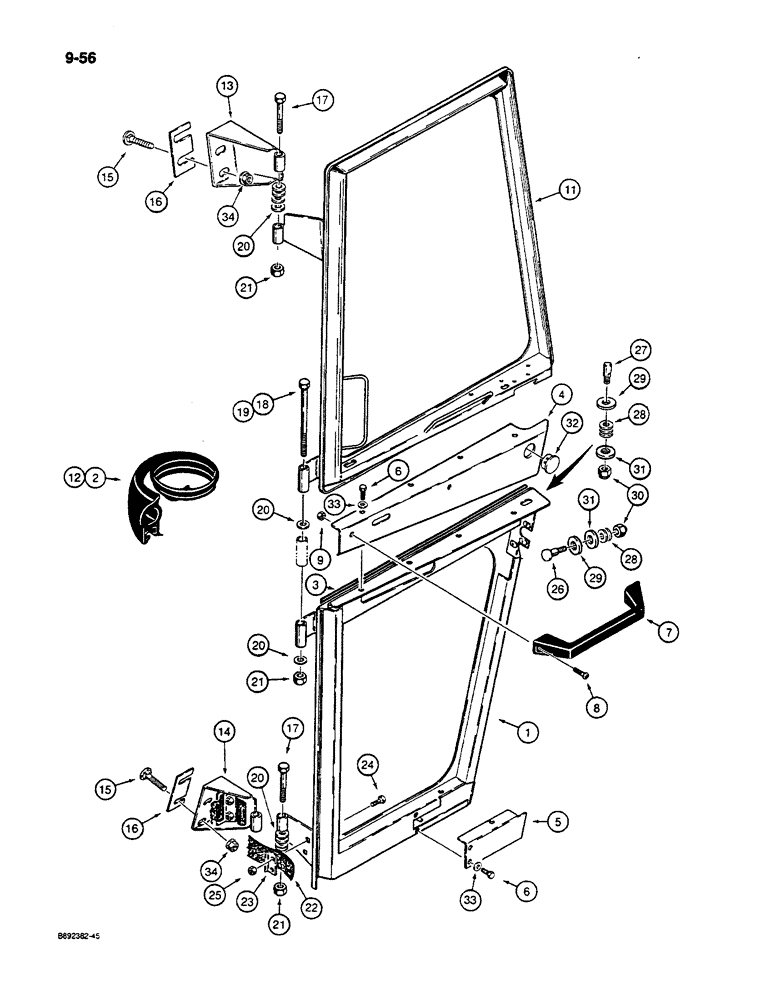

Запчасти Case W14C (9-56) - CAB DOOR AND WINDOW MOUNTING, (INSIDE OF LEFT-HAND DOOR AND (09) - CHASSIS/ATTACHMENTS

1

F96908

FRAME

- door, lower, left-hand

1шт.

2

R54131

SEAL - left-hand door frame, 72 inch (1833 mm) long, cut from R53628 bulk, see below

1шт.

3

F45161

SEAL

- door frame to upper window, adhesive-backed

1шт.

4

F45033

COVER

- latch release rod, upper

1шт.

5

F96786

COVER

- door handle mechanism, lower

1шт.

6

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

7шт.

7

F64547

HANDLE

- grab, inner door

1шт.

8

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips head, 1/4 NC x 3/4 inch

2шт.

9

131-1280

JAM NUT,Jam, 1/4"-20

NUT - hex, jam, self-locking, 1/4 inch NC

2шт.

10

F96910

DOOR SEAL

FRAME - window, right-hand, not shown

1шт.

11

F96909

FRAME

- window, left-hand

1шт.

12

R54132

SEAL

- window frame, 111 inch (2819 mm) long

2шт.

13

F45125

HINGE

- left-hand window, upper

1шт.

14

F45123

HINGE

- left-hand door, lower, and right-hand window, upper

2шт.

15

111-274

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 3/4", G5

BOLT - round head square neck, 5/16 NC x 1-3/8 inch

6шт.

16

F45179

BLOCK

SHIM - hinge mounting

1шт.

17

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3шт.

18

113-255

BOLT,Hex, 3/8" - 16 x 7", Gr 5

- hex, 3/8 NC x 7 inch, center, left-hand side

1шт.

19

113-253

BOLT,Hex, 3/8" - 16 x 5", Gr 5

center, RH side Hex, 3/8"-16 x 5", G5

1шт.

20

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust, hinge

15шт.

21

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex, jam, self-locking, 3/8 inch NC

5шт.

22

F45153

STRAP

- left-hand, lower door stop

1шт.

23

F45154

STRAP

BRACKET - strap mounting

2шт.

24

111-133

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G5

BOLT, CARRIAGE, Short NK, 1/4"-20 x 5/8", G5

4шт.

25

131-1280

JAM NUT,Jam, 1/4"-20

NUT - hex, jam, self-locking, 1/4 inch NC

4шт.

26

F66210

STRIKER PLATE

STRIKER - lower door

1шт.

27

R51754

STRIKER

STRIKER - upper window retaining (replaces R51754 and f45073)

2шт.

To use R51754, quality comments on F45073 advise to shim the R51754 under the head as necessary to provide clearance.

1шт.

28

195-2207

WASHER,7/16" x 1 1/4" x .065"

- flat, 7/16 x 1-1/4 x 1/16 inch

8шт.

29

F44748

SPRING WASHER

SPRING - belleville, striker

3шт.

30

131-595

NUT,7/16"-14

NUT - hex, self-locking, 7/16 inch NC

3шт.

31

195-2029

WASHER,7/16" x 1 1/4" x .134"

- flat, 7/16 x 1-1/4 x 1/8 inch

3шт.

32

353-422

PLUG,Dome, 1.250" hole, Nylon

Door latch release rod Dome, 1.250" hole, Nylon

1шт.

33

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

7шт.

34

131-937

FLANGE NUT,Flg, 5/16"-18

NUT - hex, flange, special locking, 5/16 inch NC

6шт.

R53628

SEAL

- bulk, window and door frames, 182 inch (4620 mm) long

1шт.
