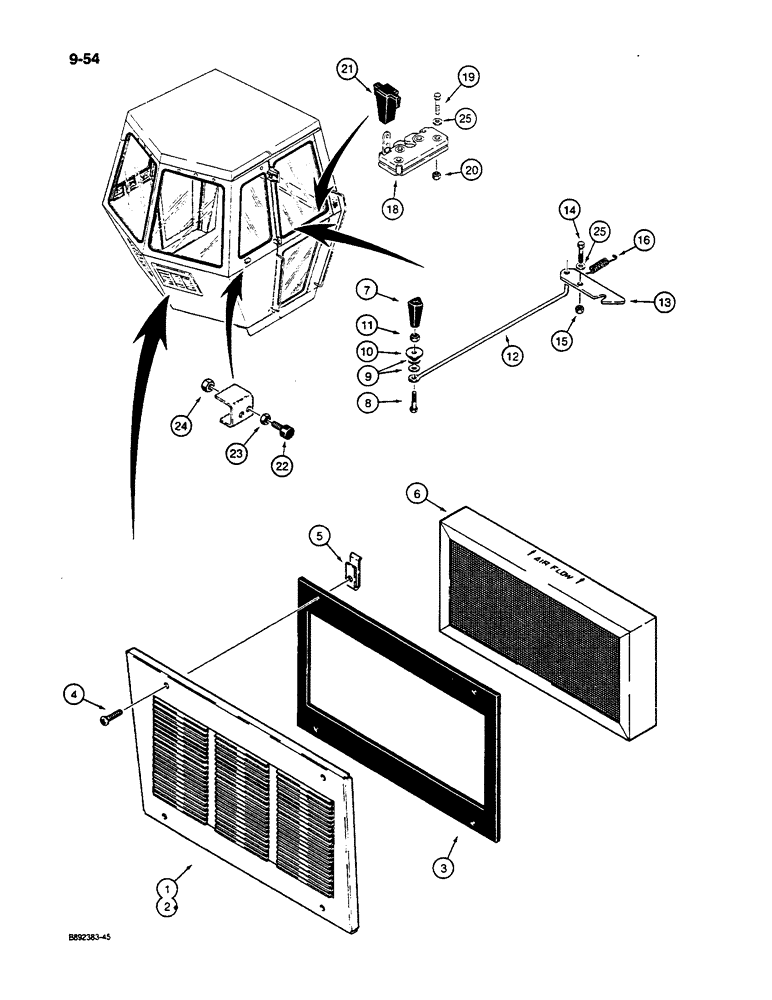

Запчасти Case W14C (9-54) - CAB FILTERS AND WINDOW LATCHES (09) - CHASSIS/ATTACHMENTS

1

F96794

PLATE

COVER - filter, with louvers, right-hand

1шт.

2

F96795

PLATE

COVER - filter, with louvers, left-hand

1шт.

3

F45060

SEAL

SEAL - filter

2шт.

4

182-509

SCREW,Cross Pan Hd, 5/16" - 18 x 1"

- machine, pan Phillips head, 5/16 NC x 1 inch

8шт.

5

131-639

SPRING NUT,U, Rtnr, 5/16" - 18

- U-type, 5/16 inch NC

8шт.

6

D80562

AIR CLEANER

FILTER - air

2шт.

7

F64341

KNOB

- window latch release

2шт.

8

123-4

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5, Full Thd

- hex, full thread, 1/4 NC x 1-1/4 inch

2шт.

9

F64384

WASHER

- nylon, knob

4шт.

10

F64340

WASHER

- special, shoulder

2шт.

11

131-1280

JAM NUT,Jam, 1/4"-20

NUT - hex, jam, self-locking, 1/4 inch NC

2шт.

12

F45134

STEM

ROD - window latch release

2шт.

13

F45352

PLATE

LATCH - window retaining, open position

2шт.

14

413-418

BOLT,Hex, 1/4" - 20 x 1-1/8", Gr 5

- hex, 1/4 NC x 1-1/8 inch

2шт.

15

131-1280

JAM NUT,Jam, 1/4"-20

NUT - hex, jam, self-locking, 1/4 inch NC

2шт.

16

F45162

SPRING

- window latch release

2шт.

17

R55003

LATCH ASSY.

LATCH - window, closed position, shown

1шт.

18

R55002

LATCH

- window, closed position, not shown

1шт.

19

413-418

BOLT,Hex, 1/4" - 20 x 1-1/8", Gr 5

- hex, 1/4 NC x 1-1/8 inch

8шт.

20

131-1280

JAM NUT,Jam, 1/4"-20

NUT - hex, jam, self-locking, 1/4 inch NC

8шт.

21

F64911

HANDLE

KNOB - window latch

2шт.

22

F44935

BUMPER

- window, open position

2шт.

23

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

24

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

25

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

10шт.
