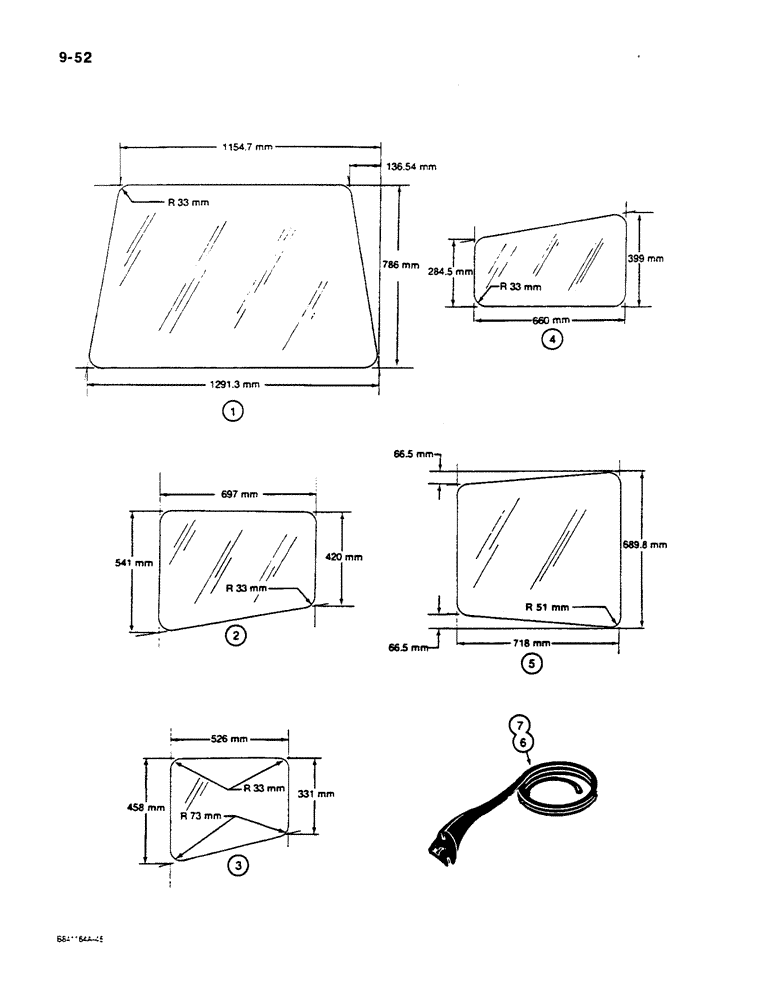

Запчасти Case W14C (9-52) - CAB GLASS, METRIC DIMENSIONS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

GLASS - windshield, see Figure 9-50 for glass with U.S. dimensions

1шт.

All glass to be obtained from local source and must be 5.60 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

2

REF

INSTRUCTION

GLASS - side, front, upper, see Figure 9-50 for glass with U.S. dimensions

2шт.

All glass to be obtained from local source and must be 5.60 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

3

REF

INSTRUCTION

GLASS - side, front, lower, see Figure 9-50 for glass with U.S. dimensions

2шт.

All glass to be obtained from local source and must be 5.60 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

4

REF

INSTRUCTION

GLASS - side, rear, see Figure 9-50 for glass with U.S. dimensions

2шт.

All glass to be obtained from local source and must be 5.60 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

5

REF

INSTRUCTION

GLASS - rear, see Figure 9-50 for glass with U.S. dimensions

2шт.

All glass to be obtained from local source and must be 5.60 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

6

A42677

MOLDING

SEAL - used around all glass except windshield glass, 15,240 mm long

1шт.

7

F43628

MOLDING

SEAL - used around windshield glass only, 30,480 mm long

1шт.
