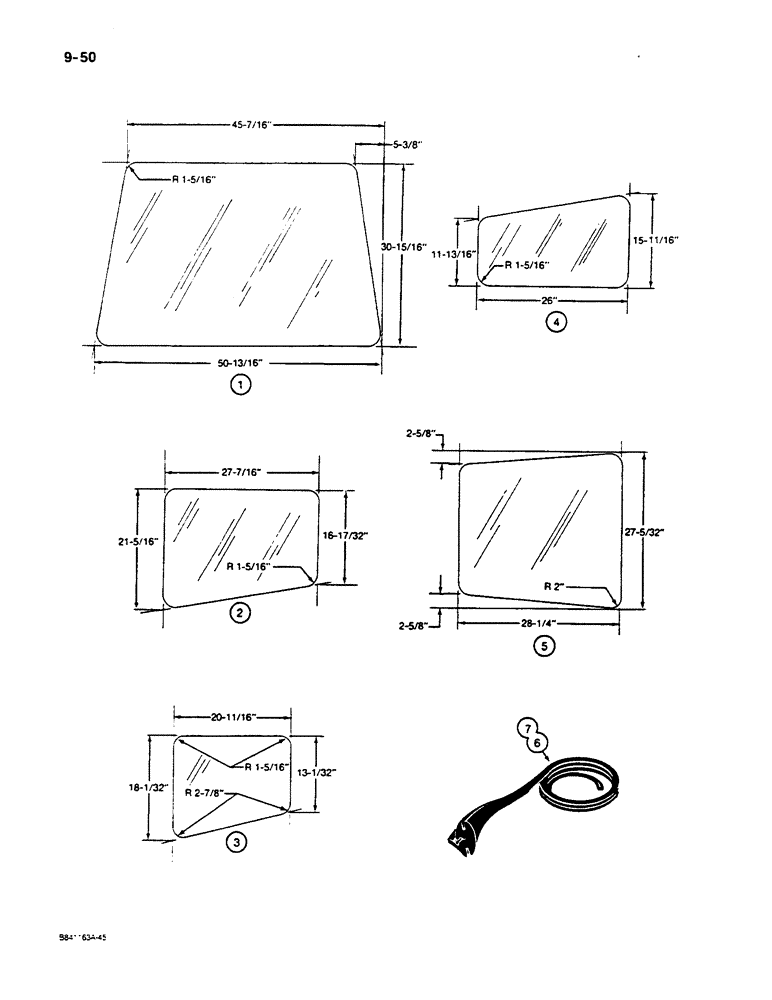

Запчасти Case W14C (9-50) - CAB GLASS, U.S. DIMENSIONS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

GLASS - windshield, see Figure 9-52 for glass with metric dimensions

1шт.

All glass to be obtained from local source and must be 7/32" thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

2

REF

INSTRUCTION

GLASS - side, front, upper, see Figure 9-52 for glass with metric dimensions

2шт.

All glass to be obtained from local source and must be 7/32" thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

3

REF

INSTRUCTION

GLASS - side, front, lower, see Figure 9-52 for glass with metric dimensions

2шт.

All glass to be obtained from local source and must be 7/32" thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

4

REF

INSTRUCTION

GLASS - side, rear, see Figure 9-52 for glass with metric dimensions

2шт.

All glass to be obtained from local source and must be 7/32" thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

5

REF

INSTRUCTION

GLASS - rear, see Figure 9-52 for glass with metric dimensions

2шт.

All glass to be obtained from local source and must be 7/32" thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

6

A42677

MOLDING

SEAL - used around all glass except windshield glass, 600 inch long

1шт.

7

F43628

MOLDING

SEAL - used around windshield glass only, 1200 inch long

1шт.
