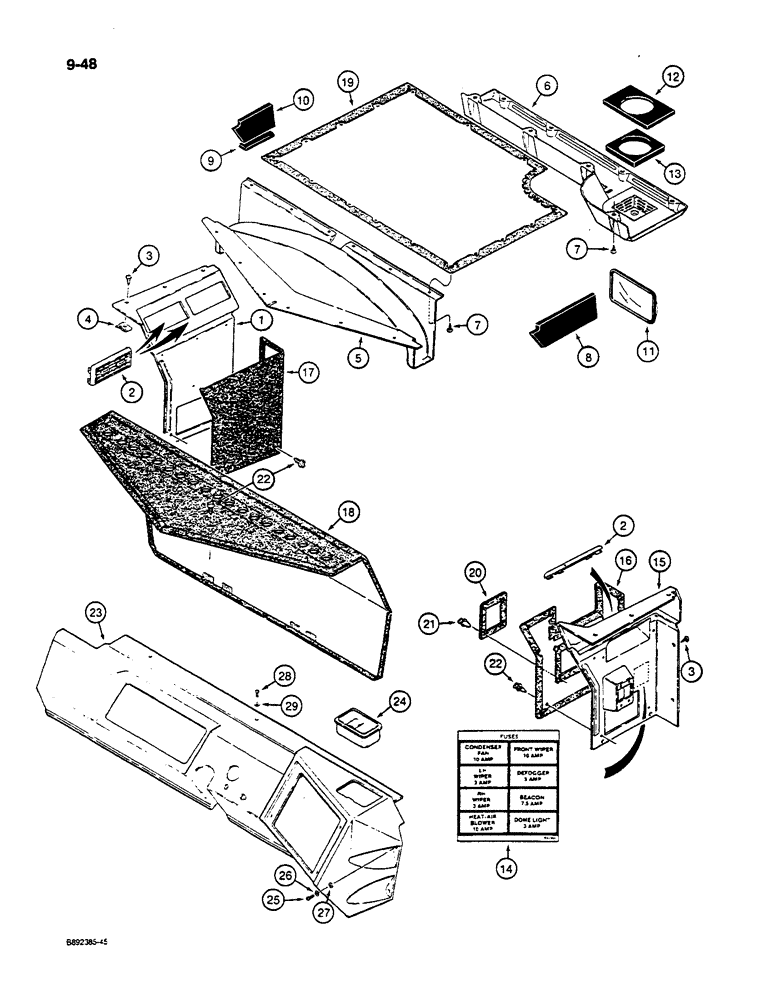

Запчасти Case W14C (9-48) - CAB INTERIOR COVERS (09) - CHASSIS/ATTACHMENTS

1

L108402

PANEL ASSY.

PANEL - left-hand side

1шт.

2

L109555

GUARD

LOUVER - side panel

2-3шт.

3

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - special, self-tapping, Phillips head, with washer, No. 10 - 16 x 3/4 inch

14шт.

4

131-145

NUT,J, #10

- J-type, No. 10

14шт.

5

L108422

PLATE

HEADLINER - rear, plastic

1шт.

6

L109988

ROOF LINING

COVER - defroster, plastic

1шт.

7

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - special, self-tapping, Phillips head, with washer, No. 10 - 16 x 3/4 inch

28шт.

8

NSS

NOT SOLD SEPARAT

SEAL - defroster cover, right-hand, 11-13/16 inch (300 mm) long, cut from F63219, see below

1шт.

For noise reduction pads that are glued to the cab frame weldment see Figure 9-60.

1шт.

9

F45447

SEAL

- defroster cover, right edge

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - defroster cover, left-hand, 7 inch (179 mm) long, cut from F63219, see below

1шт.

For noise reduction pads that are glued to the cab frame weldment see Figure 9-60.

1шт.

11

L74714

MIRROR

- rear view, includes hardware

1шт.

12

L108631

SEAL

- rubber, adhesive-backed, adheres to item 6, defroster cover

1шт.

13

F45304

PAD

- defroster cushion, adhesive-backed, adheres to underside of cab roof

1шт.

14

R52564

DECAL

- fuses, on item 15, right-hand side panel

1шт.

15

R52528

PANEL

- right-hand side

1шт.

16

R52524

PANEL

COVER - padded vinyl, right-hand side panel

1шт.

17

R52525

PANEL

COVER - padded vinyl, left-hand side panel

1шт.

18

R52526

PANEL

COVER - padded vinyl, rear, behind seat

1шт.

19

R52527

ROOF

HEADLINER - center, fabric-covered, if used

1шт.

20

R52523

PANEL

- fuse, right - hand side

1шт.

21

R54556

RETAINER

- fuse panel

4шт.

22

R54557

FASTENER

- padded covers

17шт.

23

L123649

PANEL

COVER - instrument panel, see Figure 4-8 for the instrument panel cluster

1шт.

24

L61261

ASH TRAY

TRAY - ash

1шт.

25

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips head, 1/4 NC x 3/4 inch

4шт.

26

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

- flat, 5/16 x 3/4 x 1/16 inch, Teflon

4шт.

27

A161723

WASHER

- special, flat rubber, 1/4 inch

4шт.

28

182-584

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips head, No. 10 NC x 3/4 inch

3шт.

29

195-100

WASHER,#12

- flat, 1/4 x 9/16 x 3/64 inch

3шт.

F63219

FOAM

SEAL - 47 inch (1194 mm) long

1шт.

For noise reduction pads that are glued to the cab frame weldment see Figure 9-60.

1шт.
