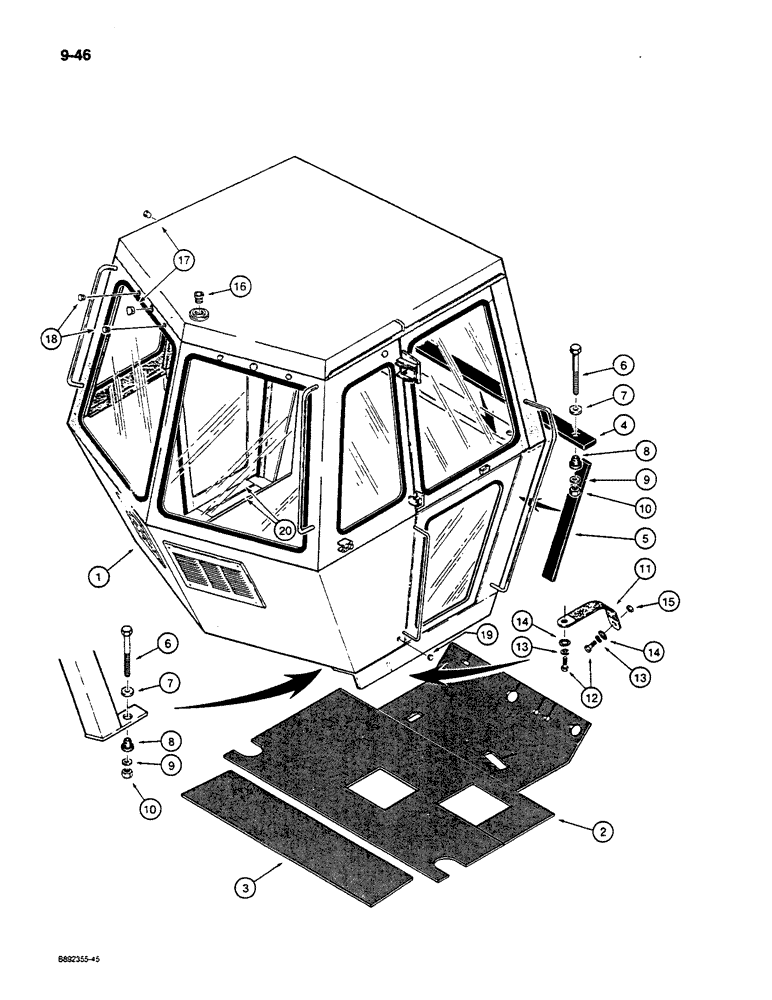

Запчасти Case W14C (9-46) - CAB MOUNTING AND FLOOR MATS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB ASSEMBLY - ROPS, machinery item, order from Machinery Price List

1шт.

2

L127593

MAT

- floor, front

1шт.

3

L127208

MAT

- floor, rear

1шт.

4

L108630

SEAL

- rubber, cab to front of chassis, horizontal

1шт.

5

L108633

SEAL

- rubber, cab to front of chassis, sides, vertical

2шт.

6

L108002

BOLT

- special, hex, 1 NF x 5 inch, grade 8

4шт.

7

L107918

WASHER,26.2mm ID x 70mm OD x 12.7mm Thk

- special, flat, hardened, 1 x 2-3/4 x 1/2 inch

4шт.

8

L105697

ELASTIC MOUNTING

BUSHING - rubber, cab mounting, included with cab

4шт.

9

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened, flat, 1 x 1-7/8 x 1/8 inch

4шт.

10

131-188

LOCK NUT,1"-14, GB

NUT - hex, self-locking, 1 inch NF

4шт.

11

D120366

STRAP

- ground, cab

1шт.

12

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - internal-external tooth lock, 3/8 inch

2шт.

15

425-106

NUT,3/8"-16, Cl 5

1шт.

16

221-846

PLUG,Hex Soc, 1"-11 1/2

- square socket head, 1 inch taper PT, cab roof

1шт.

17

R54170

PLUG

- nylon, 5/8 inch hole size, if used

4шт.

18

353-421

PLUG,Dome, .187" hole, Nylon

If used Dome, .187" hole, Nylon

4шт.

19

353-402

PLUG,Dome, .375" hole, Nylon

If used Dome, .375" hole, Nylon

1шт.

20

D55216

PAD,2" x 9"

PAD - nonskid

2шт.

21

345-61

SEALANT

ADHESIVE - rubber, Scotch Grip No. 1300, 2.8 oz., not shown, use with item 17, R54170 plug

1шт.
