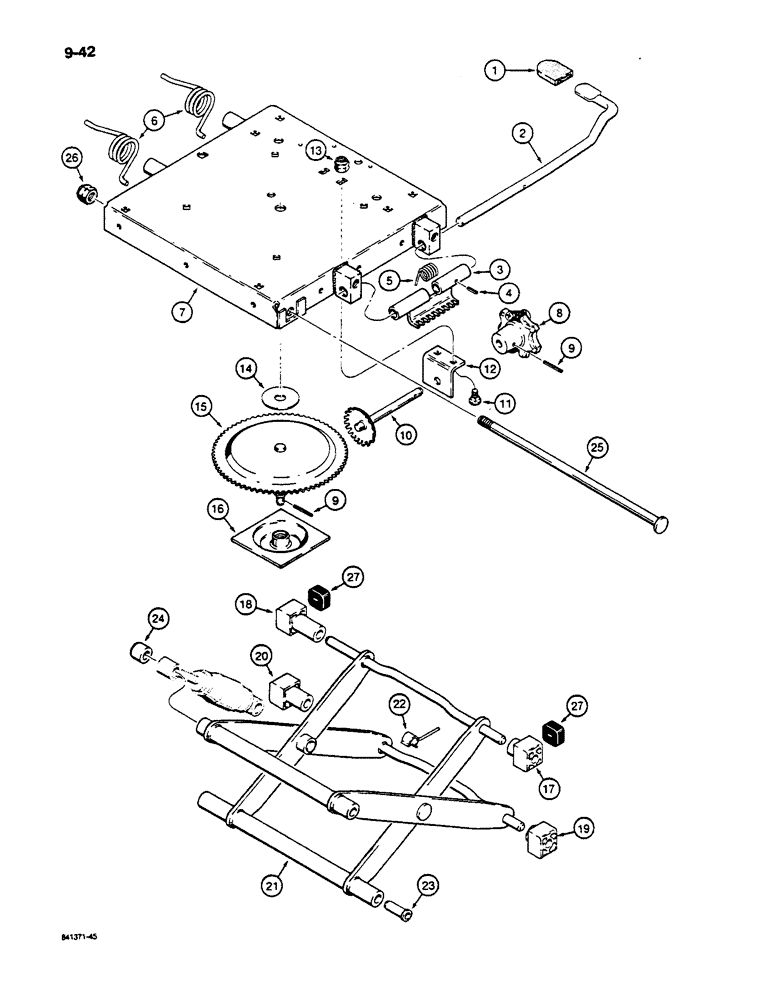

Запчасти Case W14C (9-42) - SUSPENSION SEAT ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

SEAT ASSEMBLY - suspension, includes parts on Figures 9-40 and 9-44

1шт.

1

A45472

CAP

AND DECAL - height adjustment lever

1шт.

2

D82857

LEVER

- height adjustment

1шт.

3

A47381

LATCH

- lever

1шт.

4

138-2057

PIN,5/32" x 5/8", Coiled

1шт.

5

A47382

SPRING

- latch

1шт.

6

D82863

SPRING

- housing

2шт.

7

A47761

PLATE

HOUSING - upper

1шт.

8

A47763

KNOB

- includes handle and decals, which are not serviced separately

1шт.

9

135-45

PIN - groove, 5/32 x 1 inch, full length, tapered

2шт.

10

A45513

GEAR

SHAFT AND GEAR - pinion

1шт.

11

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - round head square neck, 1/4 NC x 1/2 inch

2шт.

12

A45531

BRACKET

- shaft

1шт.

13

86625061

NUT,1/4"-20, GB

NUT - hcx lock, 1/4 inch NC

2шт.

14

D82834

WASHER

- thrust, gear

1шт.

15

A45505

GEAR

- center

1шт.

16

A45504

SPRING WASHER

RETAINER - spring

1шт.

17

P0045517A

WASHER

- right-hand upper

1шт.

18

A45515

BLOCK

- left-hand upper

1шт.

19

A45516

BLOCK

- right-hand lower

1шт.

20

A45512

BLOCK

- left-hand lower

1шт.

21

A47759

ARM

- inner and outer

1шт.

22

A47070

INDICATOR

- height

1шт.

23

A47760

BUSHING

BEARING - nylon

4шт.

24

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

1шт.

25

A47762

SHAFT

- upper housing

1шт.

26

131-1402

THIN NUT,1/2"-13, GB, Thin

NUT, LOCK, 1/2"-13, GB, Thin

1шт.

27

A45054

BUMPER,Neoprene

CUSHION - rubber

2шт.
