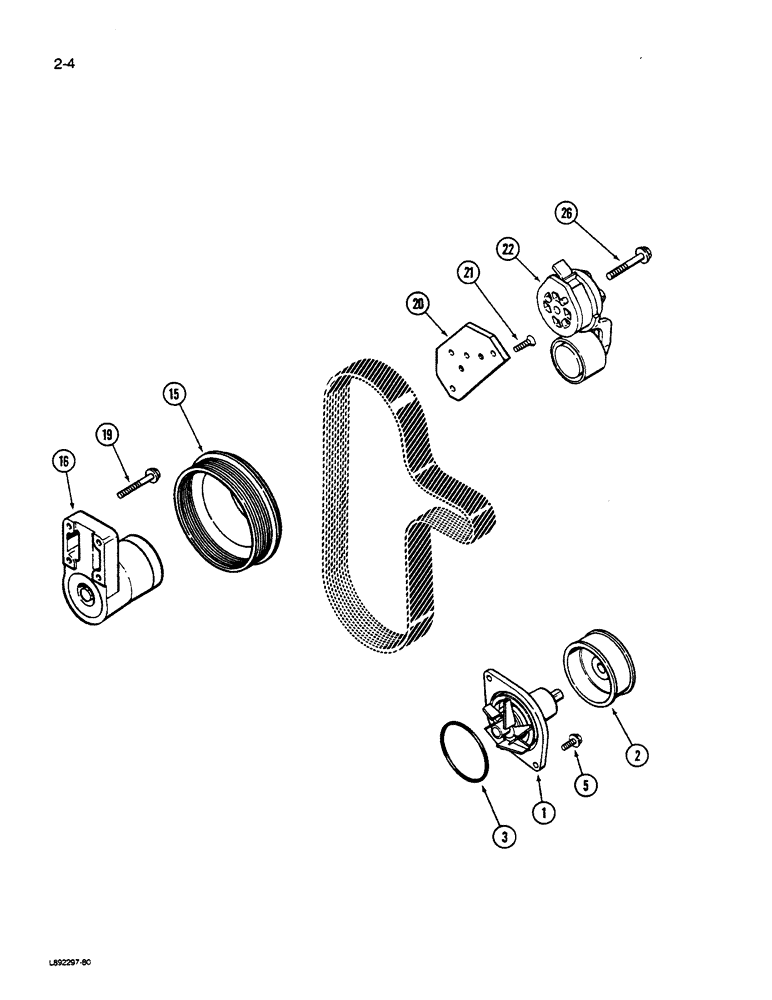

Запчасти Case W14C (2-04) - WATER PUMP SYSTEM, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

AR77471

REMAN-WATER PUMP

PUMP - water, remanufactured

1шт.

J286278R

REMAN-WATER PUMP

W14C

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77471

CORE-WATER PUMP

RETURN NUMBER - use this part number to return pump core for credit

1шт.

A77471

PUMP, WATER

PUMP KIT - water

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

W14C, Replaces P/N A77471 & AR77471

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump (Order A77471)

1шт.

3

22290R1

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

- sealing

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

15

J914462

PULLEY,163mm OD

- fan

1шт.

16

J913433

BRACKET

ASSEMBLY - fan pulley

1шт.

19

J900678

BOLT,Hex Flg, M8 x 40mm, Cl 8.8

- hex flange, 8 x 63 mm

4шт.

20

J904548

BRACKET

- belt tension

1шт.

21

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Flat head cap Torx Soc, M8 x 1.25 x 25

2шт.

22

J914086

BELT TENSIONER

TENSIONER ASSEMBLY - belt

1шт.

Ref: #22 If sub part number J918944 tensioner is used an A77817 pulley replacement kit was released under ECN C931498 which will replace this tensioner. See Root comments on J918944.

1шт.

26

J904446

FLANGE BOLT,Hex, M10 x 70mm, Cl 10.9

BOLT - hex flange, 10 mm - 1.50 x 70 mm

1шт.
