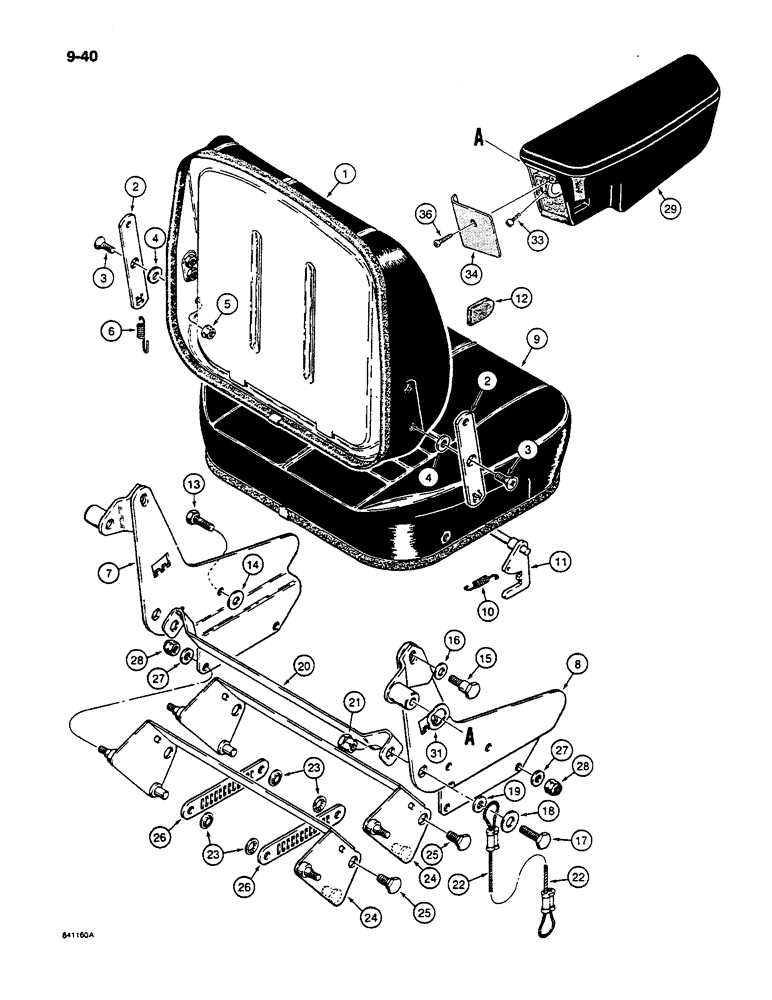

Запчасти Case W14C (9-40) - SUSPENSION SEAT ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

L101788

SEAT ASSY.

SEAT ASSEMBLY - suspension, vinyl, cab or canopy models, includes parts on figures 9-42 and 9-44

1шт.

L106683

SEAT

ASSEMBLY - suspension, cloth, cab models, includes parts on figures 9-42 and 9-44

1шт.

N9208

CUSHION ASSY.

CUSHION ASSEMBLY - seat back, vinyl, used with L101788 seat assembly

1шт.

N9203

CUSHION

ASSEMBLY - seat back, cloth, used with L106683 seat assembly

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - seat back

1шт.

2

N8679

LINK

- seat back

2шт.

3

171-228

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

- machine, flat head slotted, 3/8 NC x 1 inch

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

5

131-1352

LOCK NUT,Flg, 3/8"-16

NUT - hex, flange lock, 3/8 inch NC

2шт.

6

N8680

SPRING

- seat back link

2шт.

7

N9204

BRACKET

- seat, left-hand

1шт.

8

N9205

BRACKET

- seat, right-hand

1шт.

9

N9202

CUSHION

- seat bottom, cloth, used with L106683 seat assembly

1шт.

9

N9207

CUSHION

- seat bottom, vinyl, used with L101780 seat assembly

1шт.

10

D82869

SPRING

- tilt shaft

2шт.

11

D82868

SHAFT

- seat tilt

1шт.

12

A47347

CAP

AND DECAL - tilt lever

1шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

14

A45110

WASHER

- special

2шт.

15

N14251

BOLT

- special, back tilt

2шт.

16

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

17

D82872

BOLT

- special, seat bracket

2шт.

18

195-541

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

19

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

20

D82871

BAR

- spacer

1шт.

21

D82873

SPECIAL NUT

- special, hex

2шт.

22

D82874

CABLE

- side brackets

2шт.

23

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

4шт.

24

N6857

LINK

BRACKET - tie

2шт.

25

A45473

STEP BOLT

BOLT - special

4шт.

26

A47383

LINK

LEVER - adjusting

2шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

28

131-542

LOCK NUT,3/8"-16

NUT - hex, self-locking, 3/8 inch NC

4шт.

29

N9214

ARMREST

- seat, right-hand

1шт.

30

N9213

ARMREST

- seat, left-hand, not shown

1шт.

31

A47352

WASHER

- belleville, armrest, right-hand

2шт.

32

D82791

WASHER

- belleville, armrest, left-hand, not shown

2шт.

33

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Special, Armrest stop Hex Soc Hd, 1/4"-20 x 3/8"

4шт.

34

N9215

PLATE

COVER - armrest, right-hand

1шт.

35

A47377

COVER

- armrest, left-hand, not shown

1шт.

36

187-461

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"

SCREW - self-tapping, pan Phillips head, No. 10 - 16 x 1-1/2

2шт.
