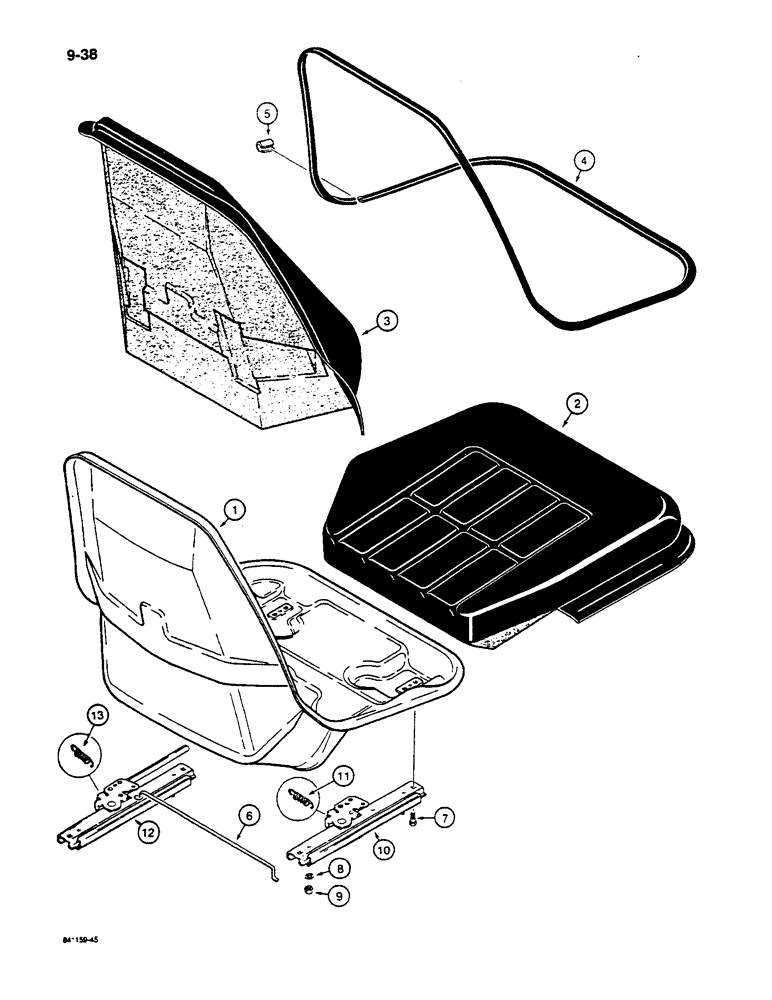

Запчасти Case W14C (9-38) - STANDARD SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

L108783

SEAT

ASSEMBLY - operator

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

N8462

CUSHION

- seat, includes N7802 clip kit, see below

1шт.

3

N8461

CUSHION

- backrest, includes N7802 clip kit, see below

1шт.

4

N14614

GASKET

RETAINER - strip, cushion and shell

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

6

L35492

ROD

- connecting

1шт.

7

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

9

9635082

NUT,5/16" - 18, Gr 5

4шт.

10

A64818

ADJUSTER

SLIDE - seat, right-hand

1шт.

11

L35503

SPRING

- adjusting

1шт.

12

D59688

SLIDE

- seat, left-hand

1шт.

13

L35503

SPRING

- adjusting

1шт.

N7802

CLIP

KIT - clip, includes item 5 and six additional narrow clips

1шт.
