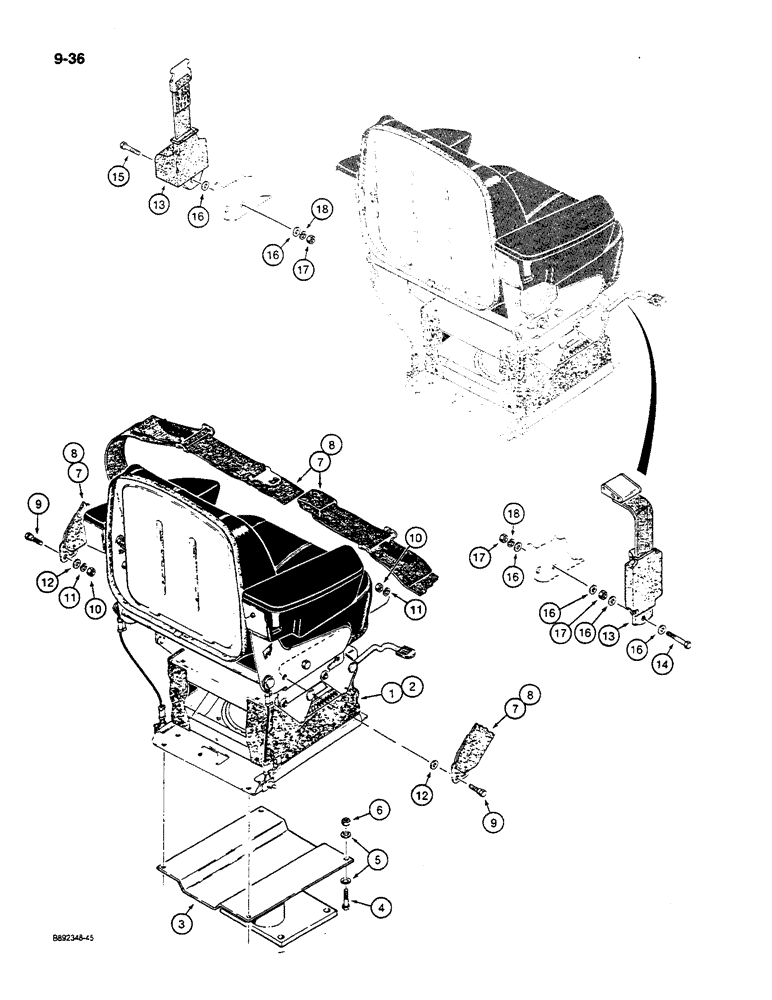

Запчасти Case W14C (9-36) - SEAT AND MOUNTING PARTS, SUSPENSION SEAT (09) - CHASSIS/ATTACHMENTS

1

L101788

SEAT ASSY.

SEAT - suspension, vinyl, cab or canopy, parts list Figures 9-40 through 9-44

1шт.

2

L106683

SEAT

- suspension, cloth, cab only, parts list Figures 9-40 through 9-44

1шт.

3

L61337

SUPPORT

- seat, for suspension seat

1шт.

4

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

4шт.

5

L105055

WASHER

- special

8шт.

6

129-524

NUT,3/8"-24, G8

4шт.

7

L117002

SAFETY BELT

SAFETY BELT, Non-retractable, 2 inch (51 mm) wide, Standard

1шт.

8

D85816

SAFETY BELT

BELT - seat, non-retractable, 3 inch (76 mm) wide, optional

1шт.

9

F42236

STEP BOLT

BOLT - shoulder, special, 7/16 NF X 1-1/4 inch, non retractable seat belts

2шт.

10

425-117

NUT,7/16"-20, G5

- hex, 1/2 inch NC, nonretractable seat belts

2шт.

11

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Nonretractable seat belts 7/16"

2шт.

12

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 3/32 inch, nonretractable seat belts

2шт.

13

L126953

SAFETY BELT

SAFETY BELT, Retractable, 2 inch (51 mm) wide, Optional

1шт.

14

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- hex, 7/16 NF x 1-3/4 inch, right-hand, retractable seat belts

1шт.

15

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

- hex, 7/16 NF x 1-1/4 inch, left-hand, retractable seat belts

1шт.

16

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 3/32 inch, retractable seat belts

6шт.

17

425-117

NUT,7/16"-20, G5

- hex, 1/2 inch NC, retractable seat belts

3шт.

18

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Retractable seat belts 7/16"

2шт.
