Запчасти Case W14C (9-34) - SEAT AND MOUNTING PARTS, STANDARD SEAT (09) - CHASSIS/ATTACHMENTS

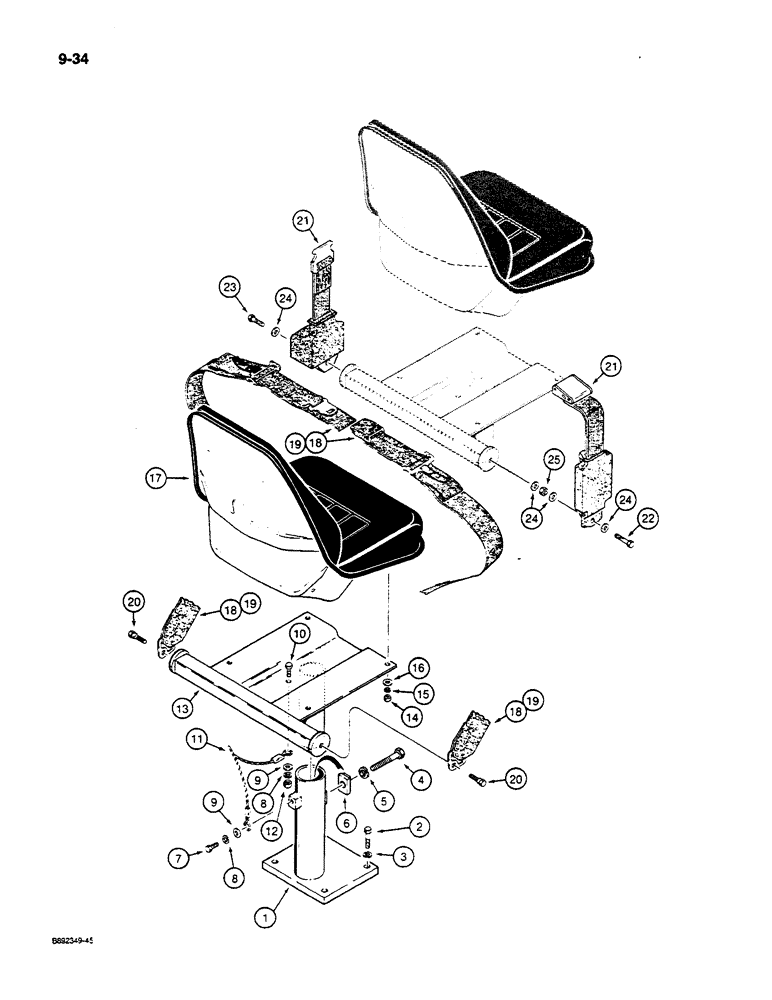

Схема запчастей Case W14C - (9-34) - SEAT AND MOUNTING PARTS, STANDARD SEAT (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

L61338

SUPPORT

- seat, lower

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

4

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

5

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

L59950

NUT

- special

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

11

L110228

CABLE

- wire, seat stabilizer

1шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.

13

97394C2

SUPPORT

- seat, upper

1шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

17

L108783

SEAT

ASSEMBLY - standard, parts list Figure 9-38

1шт.

18

L117002

SAFETY BELT

SAFETY BELT, Non-retractable, 2 inch (51 mm) wide, Standard

1шт.

19

D85816

SAFETY BELT

BELT - seat, non-retractable, 3 inch (76 mm) wide, optional

1шт.

20

F42236

STEP BOLT

BOLT - shoulder, special, 7/16 NF X 1-1/4 inch, nonretractable seat belts

2шт.

21

L126953

SAFETY BELT

SAFETY BELT, Retractable, 2 inch (51 mm) wide, Optional

1шт.

22

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- hex, 7/16 NF x 1-3/4 inch, right-hand, retractable seat belt

1шт.

23

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- hex, 7/16-20 x 1 3/4" gr. 5, left-hand (replaces 414-720), retractable seat belt

1шт.

24

81547

LOCK WASHER,7/16"

WASHER, LOCK, , Retractable seat belt 7/16"

4шт.

25

425-117

NUT,7/16"-20, G5

- hex, 1/2 inch NC, retractable seat belt

1шт.

Added P/N 425-117 Nut 7/16"-20

1шт.
