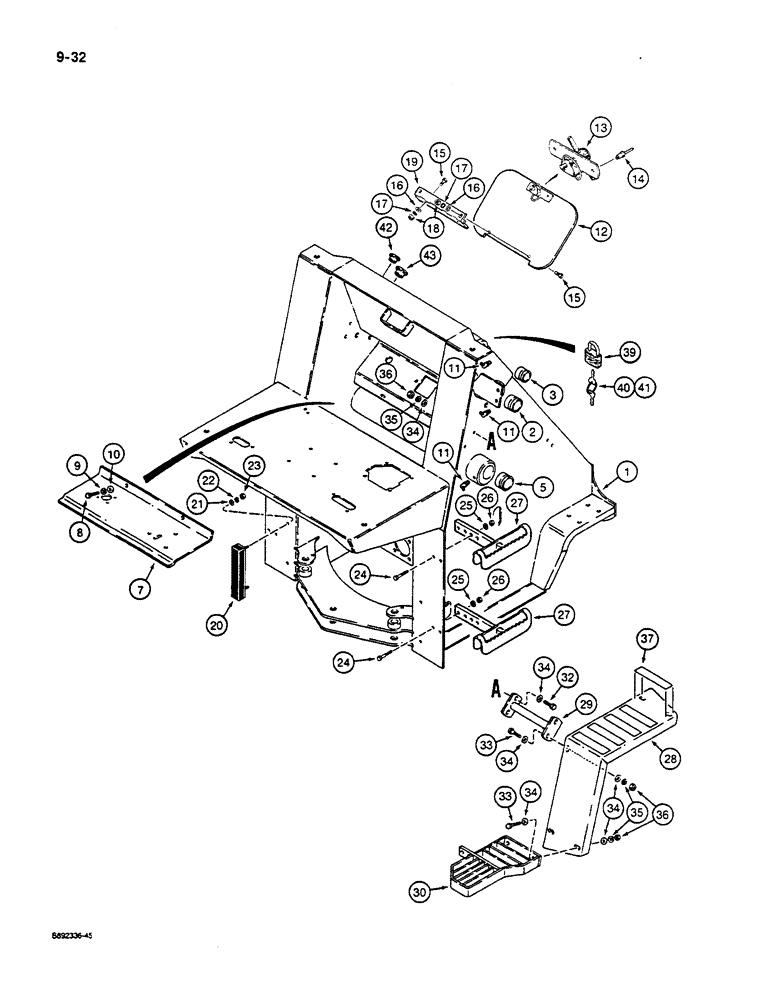

Запчасти Case W14C (9-32) - FRONT FRAME AND FENDERS (09) - CHASSIS/ATTACHMENTS

L127527

CHASSIS

FRAME ASSEMBLY - front

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - front

1шт.

2

L55873

BUSHING,63.75mm ID x 76.22mm OD x 50mm L

- lift frame

2шт.

3

L61108

BUSHING

- pivot, bucket cylinder

2шт.

5

L55873

BUSHING,63.75mm ID x 76.22mm OD x 50mm L

- pivot, lift cylinder

2шт.

7

NSS

NOT SOLD SEPARAT

FLOOR - front frame

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

11

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 55/64 inch long

6шт.

12

L127661

DOOR

- hydraulic access

1шт.

Ref: #12 - This door used prior to SN JAK 0018741.

1шт.

Per S9026-3 @ SN Jak0018741 and after there were changes to the front frame access cover hole that made this hole wider. This requires the use of a wider access door # L128850.

1шт.

Old door L127661 is 571 mm x 413 mm & must be kept for service prior to SN Break

1шт.

New door L128850 is 571 mm x 464 mm & is used on and after JAK0018741 31-May-96

1шт.

13

L102515

LATCH

HANDLE - door

1шт.

14

151-544

RIVET,Pop, 3/16" x .515"

- pop, 3/16 x 1/2 inch

2шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

16

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

17

492-11038

LOCK WASHER,3/8"

4шт.

18

425-106

NUT,3/8"-16, Cl 5

4шт.

19

L127644

HINGE

- access door

1шт.

20

L108504

BUMPER

- rubber, frame

2шт.

21

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

22

492-11038

LOCK WASHER,3/8"

4шт.

23

425-106

NUT,3/8"-16, Cl 5

4шт.

24

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

26

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

27

L77602

STEP

- operator access, front frame

4шт.

28

L115247

FENDER ASSY.

FENDER - front frame

2шт.

29

L74731

SUPPORT

-, Serial Range: fender-frame

2шт.

30

L115279

STEP

- front frame, right-hand, use existing hardware to mount to the hydraulic tank

1шт.

31

L115280

STEP

- front frame, left-hand, not shown, use existing hardware to mount to the hydraulic tank

1шт.

32

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

33

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

8шт.

34

495-21044

WASHER,3/8"

24шт.

35

492-11038

LOCK WASHER,3/8"

12шт.

36

425-106

NUT,3/8"-16, Cl 5

12шт.

37

D55216

PAD,2" x 9"

PAD - non skid

10шт.

38

L76805

STRIP

TAB - access door, if used, not shown

2шт.

39

D93753

PADLOCK

- includes keys, if used

1шт.

40

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

41

R29555

KEY

- for Master padlock only, if used

2шт.

42

353-412

PLUG,Dome, 1.093" hole, Nylon

- nylon, 1-3/32 inch

2шт.

43

353-422

PLUG,Dome, 1.250" hole, Nylon

1шт.

LIFT/TIE DOWN BRKTS AVAIL THRU WHOLEGOODS UNDER KIT L81107. KIT CONTAINS 4 BRKTS ALONG WITH DECALS AND INSTRUCTIONS.
