Запчасти Case W14C (9-30) - REAR FENDERS AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

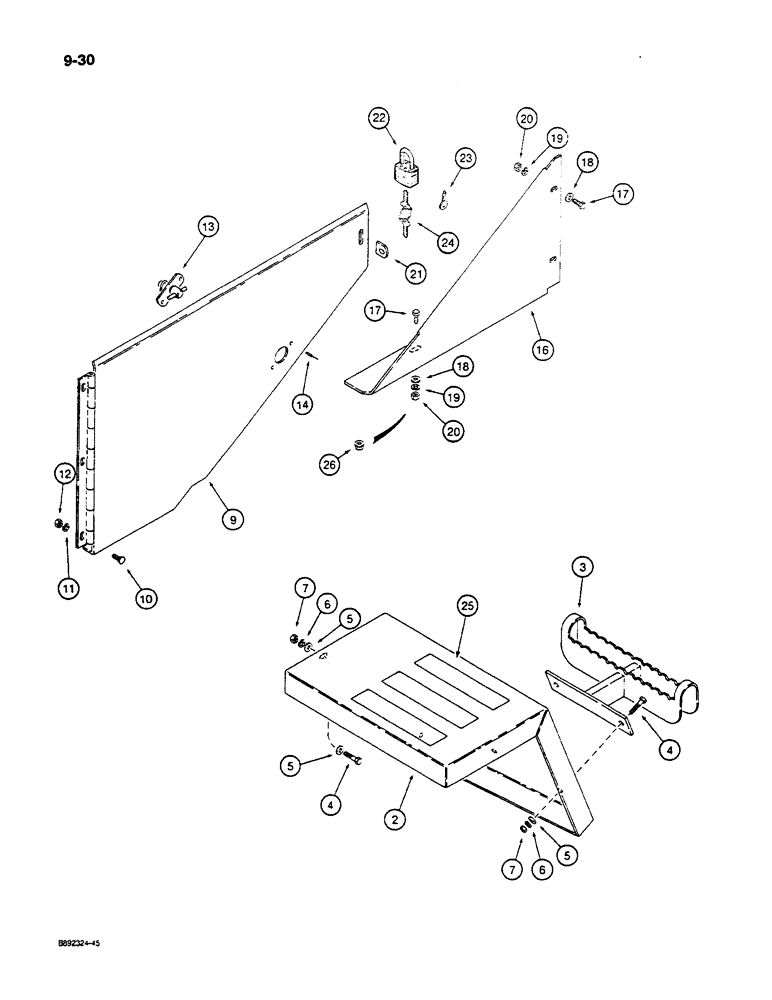

Схема запчастей Case W14C - (9-30) - REAR FENDERS AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

L115244

FENDER

- rear, left-hand, not shown

1шт.

2

L115243

FENDER ASSY.

FENDER - rear, right-hand

1шт.

3

L110240

STEP

- rear fender, right-hand

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

6шт.

5

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

10шт.

6

492-11038

LOCK WASHER,3/8"

6шт.

7

425-106

NUT,3/8"-16, Cl 5

6шт.

8

L115825

PANEL

- engine side, upper left-hand, not shown

1шт.

9

L115824

PANEL

- engine side, upper right-hand

1шт.

10

111-371

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", Full Thd

6шт.

11

492-11038

LOCK WASHER,3/8"

6шт.

12

425-106

NUT,3/8"-16, Cl 5

6шт.

13

L102515

LATCH

- side panel

2шт.

14

151-558

RIVET,Pop, 3/16" x .450"

- pop, 3/16 x 1/2 inch

4шт.

15

L112411

PANEL

- engine side, lower left-hand, not shown

1шт.

16

L112410

PANEL

- engine side, lower right-hand

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

18

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

19

492-11038

LOCK WASHER,3/8"

5-6шт.

20

425-106

NUT,3/8"-16, Cl 5

5-6шт.

21

L76805

STRIP

TAB - side panel lock, welded on, if used

2шт.

22

D93753

PADLOCK

- includes keys, if used

2шт.

23

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

24

R29555

KEY

- for Master padlock only, if used

2шт.

25

D55216

PAD,2" x 9"

PAD - non skid

6шт.

26

131-1352

LOCK NUT,Flg, 3/8"-16

NUT - hex, flange lock, 3/8 inch NC, right-hand side panel only

1шт.

Выбрано товаров: 26
