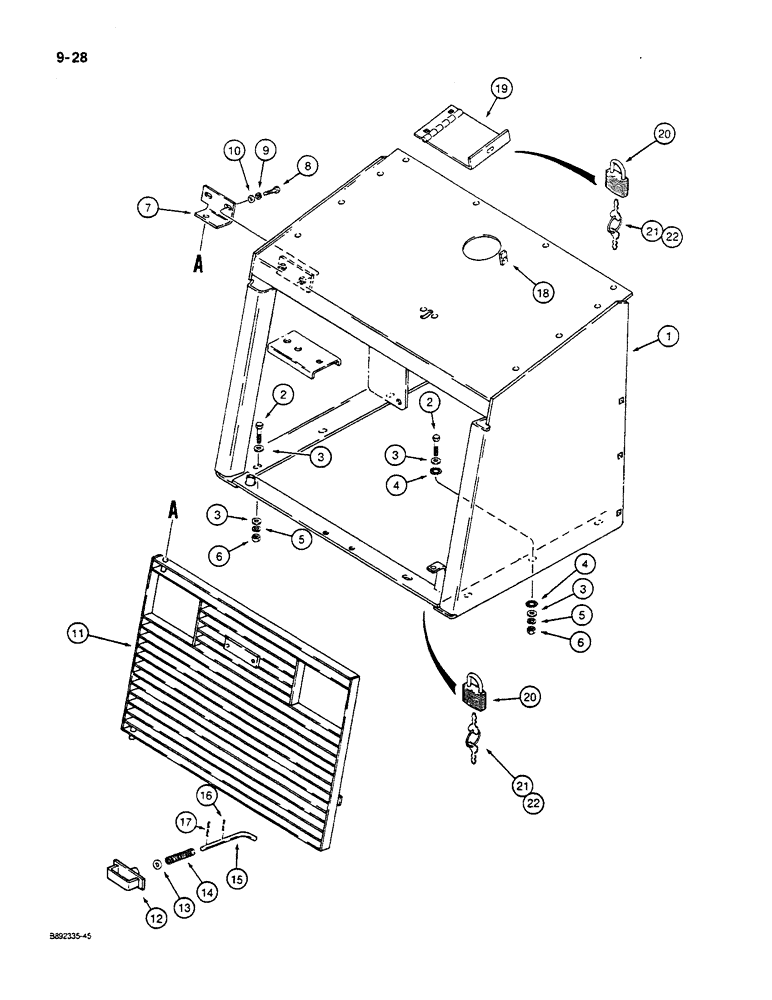

Запчасти Case W14C (9-28) - GRILLE AND RADIATOR GUARD (09) - CHASSIS/ATTACHMENTS

1

L118294

GUARD

- radiator, includes lamp brackets

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

3

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

12шт.

4

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

7

L127747

SUPPORT

BRACKET - upper grille support

1шт.

8

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

11

L118293

GRILLE

- radiator

1шт.

12

L73738

HANDLE

- latch

1шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

14

L76665

SPRING

- latch

1шт.

15

L73742

ROD

- latch

1шт.

16

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

17

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

18

L54190

STRIP

BRACKET - lock, radiator cap cover, welded on, if used

1шт.

19

L112374

COVER

- radiator cap, welded on, if used

1шт.

20

D93753

PADLOCK

- includes keys, if used

2шт.

21

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

22

R29555

KEY

- for Master padlock only, if used

2шт.
