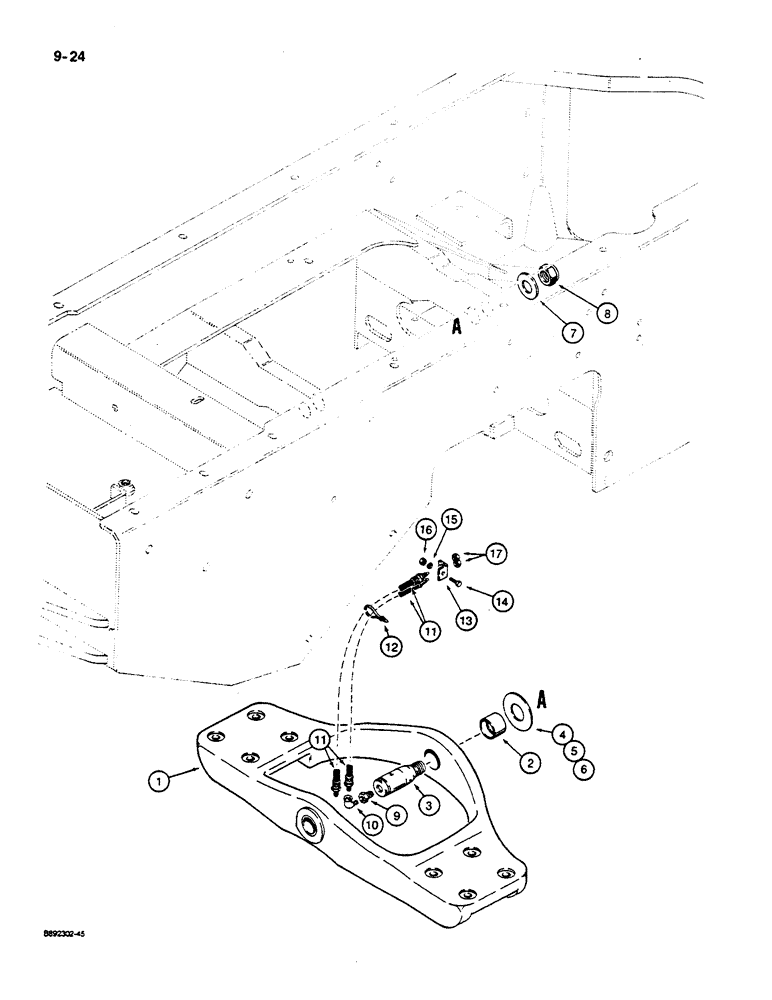

Запчасти Case W14C (9-24) - TRUNNION AND LUBRICATION LINES (09) - CHASSIS/ATTACHMENTS

L127717

TRUNNION

ASSEMBLY - rear frame

1шт.

1

NSS

NOT SOLD SEPARAT

TRUNNION - rear frame

1шт.

2

L50509

BUSHING,51.104mm ID x 63.5mm OD x 38.1mm L

- trunnion

2шт.

3

L112750

PIN

- trunnion

2шт.

4

L60776

WASHER

SHIM - 1/4 inch (6 mm) thick

1шт.

5

L60777

WASHER

SHIM - 1/8 inch (3 mm) thick

1шт.

6

L60778

WASHER,51.3mm ID x 114.3mm OD x 4.8mm Thk

SHIM - 3/16 inch (5 mm) thick

1шт.

7

L47224

WASHER

- special

2шт.

8

131-53

NUT,1 1/2"-12

NUT - hex, self-locking, 1-1/2 inch NF

2шт.

9

L52499

BOLT

ADAPTER - special

2шт.

10

219-402

ADAPTER,90 Degree, 1/4"-1/8 NPTF

ELBOW - street, 90 degree, 1/8 PT x 1/4 inch NF taper

2шт.

11

L54694

HOSE,4.8mm ID x 1041mm L

- 41 inch long, grease, for service order items 18 and 19 below

2шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

13

L115889

BRACKET

- lubrication fitting

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

17

F53473

LOCK NUT,1/8-27 NPSM

- special, lock

2шт.

18

R45862

HOSE,3.17mm ID x 1041.4mm L, SAE 100R7

- 41 inch long, grease, service, not shown

2шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper, Not shown 1/4"-28 NPT x .54" lg

2шт.
