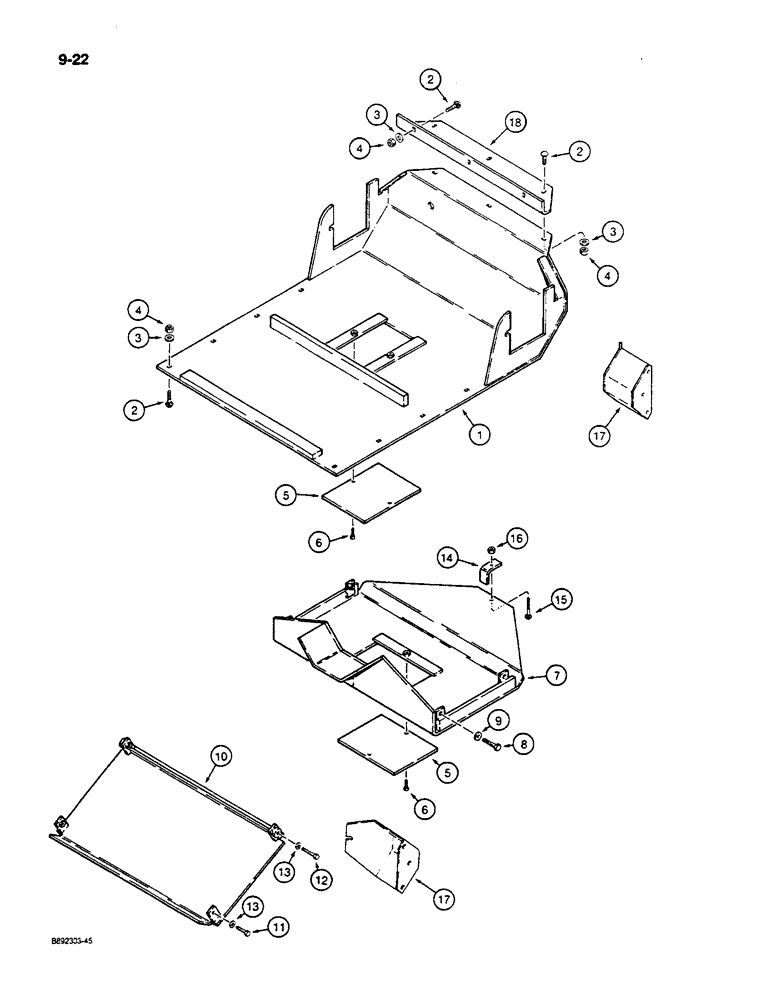

Запчасти Case W14C (9-22) - DRIVE LINE AND BRAKE GUARDS (09) - CHASSIS/ATTACHMENTS

1

L127695

GUARD ASSY.

GUARD - drive line, front

1шт.

2

111-539

CARRIAGE BOLT,Short NK, 1/2"-13 x 2", G5

BOLT - round head square neck, 1/2 NC x 2 inch

14шт.

3

D64050

WASHER

- special, flat, hardened

14шт.

4

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

14шт.

5

L118582

COVER

- drive line

2шт.

6

164-553

BOLT - hex socket button head, 3/8 NC x 1-1/2 inch, grade 8

4шт.

7

L127722

GUARD ASSY.

GUARD - drive line, transmission

1шт.

8

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

9

D64050

WASHER

- special, flat, hardened

4шт.

10

L123628

GUARD

- drive line, rear

1шт.

11

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

12

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

2шт.

13

D64050

WASHER

- special, flat, hardened

4шт.

14

L118586

BRACKET

- belly pan, rear

1шт.

15

111-328

BOLT

- round head square neck, 3/8 NC x 3-1/4 inch

1шт.

16

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

1шт.

17

L127911

GUARD ASSY.

GUARD - brake tube, uses existing lock nuts from axle brake housing shown on Figure 6-42 or 6-44

4шт.

18

L123966

BRACKET

- support

1шт.
