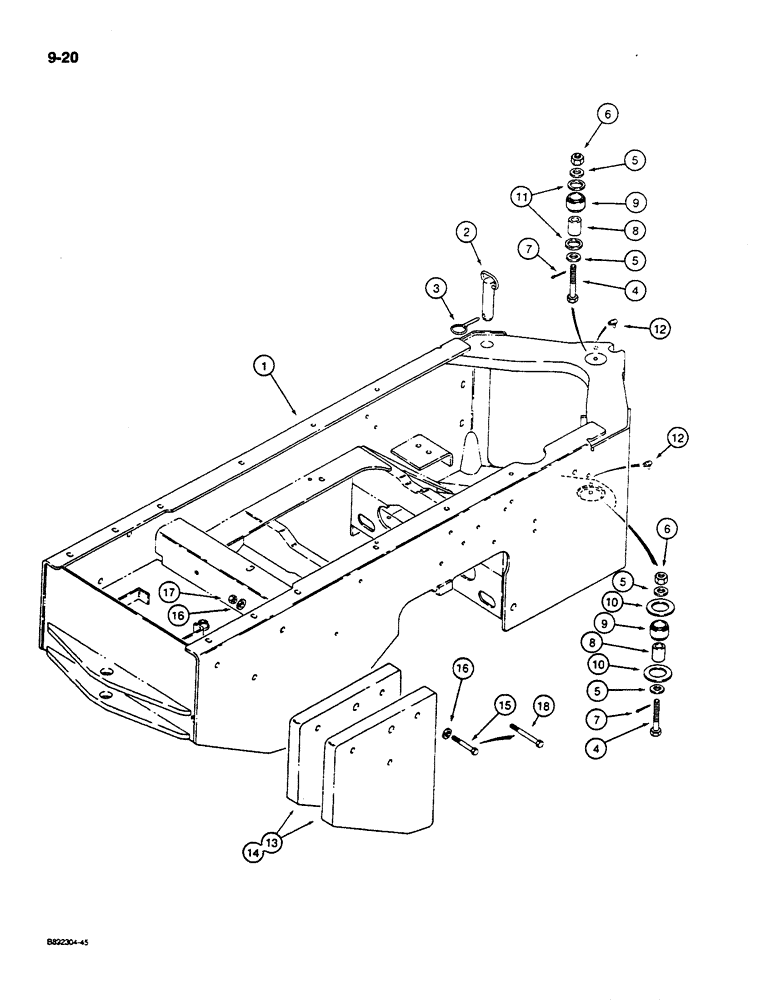

Запчасти Case W14C (9-20) - REAR FRAME, PIVOT, AND COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

L127582

FRAME ASSY

CHASSIS - rear, includes fuel tank

1шт.

2

L104989

STOP

PIN - lock

1шт.

3

D33805

PIN

- self-locking

1шт.

4

L114041

BOLT,Hex, 1 1/4" - 12 x 139.70mm, Gr 8

BOLT - special, upper and lower pivot

2шт.

5

196-60

WASHER,1 1/4" x 2 1/4" x .180", HDN

- flat, 1-1/4 x 2-1/4 x 3/16 inch, hardened

4шт.

6

129-193

NUT,1 1/8"-12, G5

- hex, 1-1/8 inch NF, grade 8

2шт.

ref #6 if dealer needs 1.250" nut - part number should be 29-1120

1шт.

7

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

8

L112625

BUSHING,31.79mm ID x 50.75mm OD x 62.75mm L

- upper and lower pivot

2шт.

9

S109373

BUSHING

- self-aligning, upper and lower pivot, for service order item 9A below

2шт.

9a

R55649

BUSHING,50.8mm ID x 80.96mm OD x 44.45mm W

- self-aligning, upper and lower pivot, not shown

2шт.

10

L114101

WASHER,69mm ID x 117mm OD x 9.32mm Thk

- special, lower pivot

2шт.

11

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 1/8 inch, upper pivot

2шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 55/64 inch long

2шт.

13

L118318

WEIGHT

COUNTERWEIGHT - right-hand

1-2шт.

14

L118319

WEIGHT

COUNTERWEIGHT - left-hand

1-2шт.

15

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Used with one RH and LH counterweights Hex, 3/4"-10 x 4 1/2", G5

6шт.

16

L79179

WASHER

- special, flat, hardened, counterweight

12шт.

17

129-108

NUT,3/4"-10, G5

Counterweight 3/4"-10, G5

6шт.

18

113-759

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch, used with two right-hand and left-hand counterweights

6шт.
