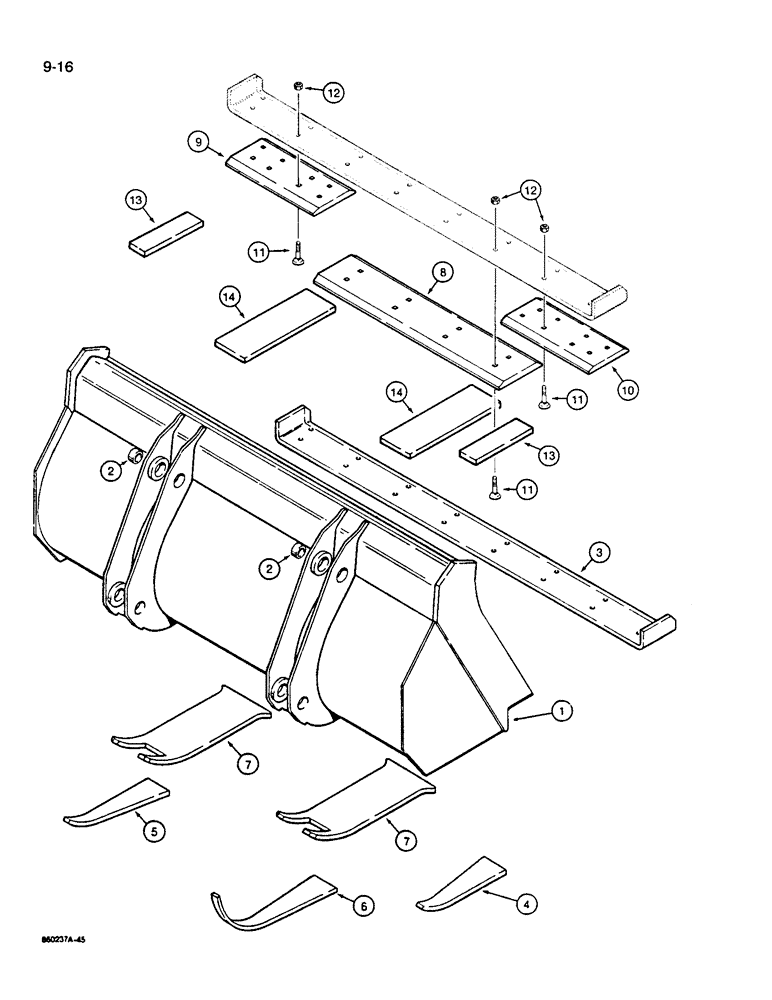

Запчасти Case W14C (9-14) - LOADER BUCKETS (09) - CHASSIS/ATTACHMENTS

L127160

BUCKET ASSEMBLY - loader, machinery item, order from Machinery Price List, 1.6 cubic yard (1.26 cubic meter)

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 1.6 cubic yard (1.26 cubic meter)

1шт.

2

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- bucket, 1.6 cubic yard (1.26 cubic meter)

8шт.

3

L114235

EDGE

- bucket, cutting, weld on, 1.6 cubic yard (1.26 cubic meter)

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - wear, outer, right-hand, 1.6 cubic yard (1.26 cubic meter) bucket

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - wear, outer, left-hand, 1.6 cubic yard (1.26 cubic meter) bucket

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE - wear, center, 1.6 cubic yard (1.26 cubic meter) bucket

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - wear, bucket ear, 1.6 cubic yard (1.26 cubic meter)

2шт.

L127161

BUCKET ASSEMBLY - loader, machinery item, order from Machinery Price List, 1.7 cubic yard (1.3 cubic meter)

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 1.7 cubic yard (1.3 cubic meter)

1шт.

2

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- bucket, 1.7 cubic yard (1.3 cubic meter) bucket

8шт.

3

L114235

EDGE

- cutting, bucket, weld on, 1.7 cubic yard (1.3 cubic meter)

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - wear, outer, right-hand, 1.7 cubic yard (1.3 cubic meter) bucket

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - wear, outer, left-hand, 1.7 cubic yard (1.3 cubic meter) bucket

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE - wear, center, 1.7 cubic yard (1.3 cubic meter) bucket

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - wear, bucket ear, 1.7 cubic yard (1.3 cubic meter)

2шт.

L36284

EDGE

KIT - bolt on cutting edge, service option for buckets with weld on cutting edge

1шт.

8

L116798

EDGE

- cutting, center, bolt on

1шт.

9

L116797

END

EDGE - cutting, end, bolt on

1шт.

10

L116797

END

EDGE - cutting, end, bolt on

1шт.

11

118-415

PLOW BOLT,5/8"-11 x 2 1/4", G8

:ow Bolt - 5/8" -11 NC grade 8, bolt on edge cutting kit

16шт.

12

129-563

NUT,5/8"-11, G8

- hex, 5/8 inch NC, grade 8, bot on cutting edge kit

16шт.

13

L116632

PLATE ASSY.

PLATE - wear, outer, bolt on cutting edge kit

2шт.

14

L116808

LARGE PLATE

PLATE - wear, bucket ear, bolt on cutting edge kit

2шт.
