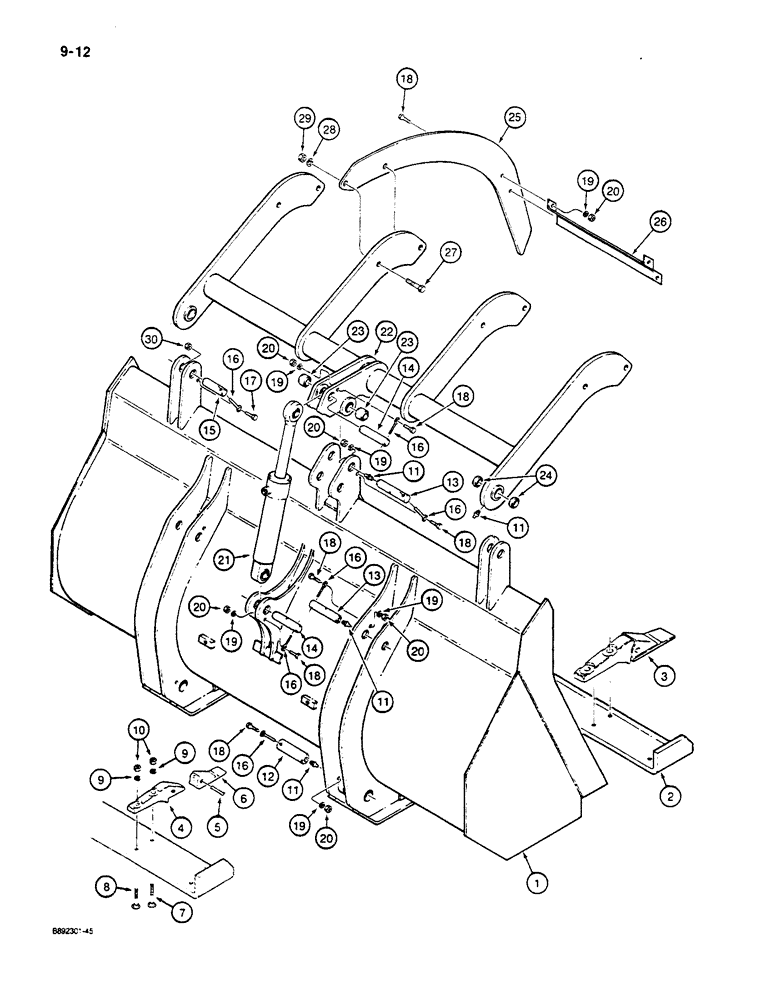

Запчасти Case W14C (9-12) - GRAPPLE BUCKET (09) - CHASSIS/ATTACHMENTS

L127156

BUCKET ASSEMBLY - grapple, machinery item, order from Machinery Price List

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - grapple

1шт.

2

L77994

EDGE, CUTTING

CUTTING EDGE - grapple bucket

1шт.

Ref: #2 No bolt on edges were released for this grapple bucket.

1шт.

3

L109023

TOOTH

ASSEMBLY - bucket

8шт.

4

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

5

D39448

PIN

- flex, tooth

1шт.

6

D39090

POINT

- tooth

1шт.

7

L126992

BOLT

- special, plow, front, 5/8 NC x 3-1/2 inch

8шт.

8

L126991

BOLT

- special, plow, rear, 5/8 NC x 3 inch

8шт.

9

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

10

129-107

NUT,5/8"-11, G5

16шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

7шт.

12

L79796

AXLE PIN

PIN - bucket, at lift frame

2шт.

13

L112502

PIN,38.1mm OD x 159mm L

- bucket and grapple

3шт.

14

L74886

PIN

- cylinder

2шт.

15

D51244

AXLE PIN,38.1mm OD x 99.06mm L

PIN - grapple

2шт.

16

R17756

ROD,12.7mm OD x 109.54mm L

PIN - rod eye

9шт.

17

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

18

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

15шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

15шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

15шт.

21

G100723

CYLINDER ASSY.

CYLINDER ASSEMBLY - grapple, parts list Figure 8-36

1шт.

22

L108590

GRIPPER

GRAPPLE ASSEMBLY - bucket, order L36226 grapple kit shown below for service

1шт.

23

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- grapple, cylinder and center bucket mounting bracket

2шт.

24

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- grapple, side bucket mounting brackets

4шт.

25

L78058

TINE

S - fork

4шт.

26

L78060

SPACER

- tines

3шт.

27

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

8шт.

28

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

29

129-108

NUT,3/4"-10, G5

8шт.

30

131-1402

THIN NUT,1/2"-13, GB, Thin

NUT, LOCK, 1/2"-13, GB, Thin

2шт.

L36226

ATTACHMENT

KIT - grapple, includes item 22 and instruction sheet

1шт.
