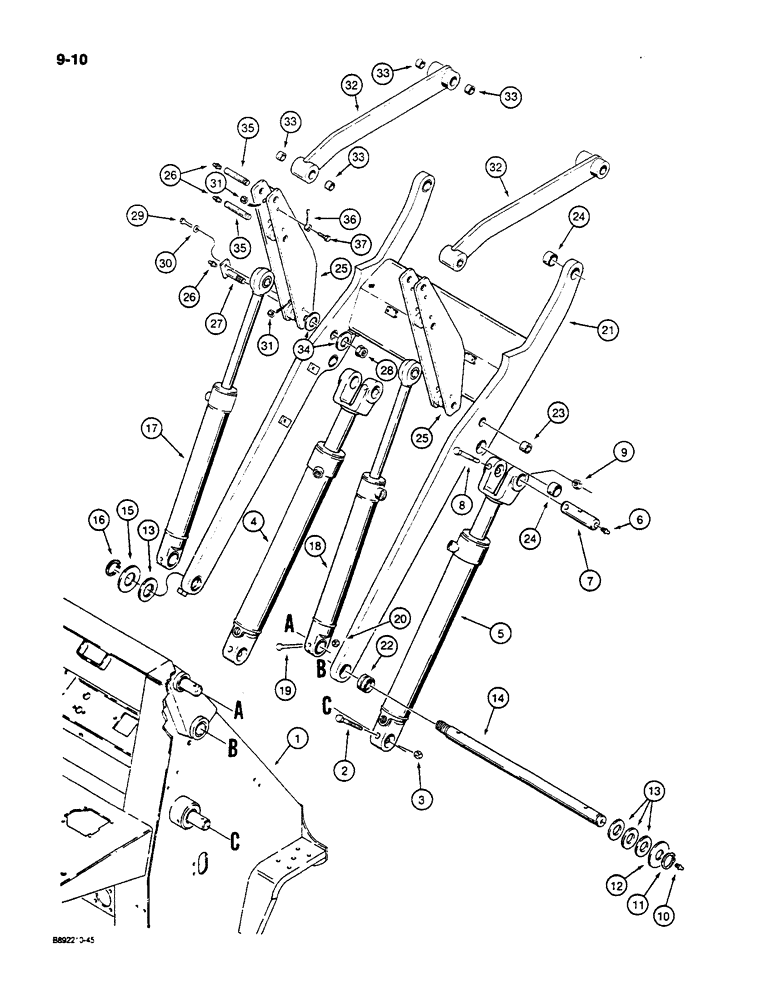

Запчасти Case W14C (9-10) - LOADER LIFT FRAME, MODELS WITH GRAPPLE BUCKET (09) - CHASSIS/ATTACHMENTS

1

L127527

CHASSIS

FRAME ASSEMBLY - front, see Figure 9-32 for component parts

1шт.

2

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

2шт.

3

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

4

G101987

CYLINDER

ASSEMBLY - lift, left-hand, see Figure 8-32

1шт.

5

G101986

CYLINDER

ASSEMBLY - lift, right-hand, see Figure 8-32

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

2шт.

7

L51558

PIN,50.8mm OD x 121.92mm L

- mounting, lift cylinder to lift arm frame

2шт.

8

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

2шт.

9

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

2шт.

11

L16015

RING

- pin retaining, lift frame

1шт.

12

L47700

WASHER

- special, flat

1шт.

13

74298

WASHER

SPACER - hardened, 2-1/2 ID x 3-9/16 OD x 1/8 inch thick

1шт.

14

L112499

SHAFT

- lift frame pivot

1шт.

15

L115063

WASHER

- special, retaining

1шт.

16

L101691

RING, SNAP

RING - snap, lift arm

1шт.

17

G108393

CYLINDER

ASSEMBLY - grapple bucket, left-hand, see page 8-37

1шт.

18

G108394

CYLINDER

ASSEMBLY - grapple bucket, right-hand, see page 8-37

1шт.

19

426-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

- hex, 3/8 NC x 4-1/2 inch, grade 8

2шт.

20

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

L117132

ARM/LIFTING DEVICE

FRAME ASSEMBLY - loader lift

1шт.

21

NSS

NOT SOLD SEPARAT

FRAME - lift

1шт.

22

L50508

BUSHING,63.75mm ID x 76.2mm OD x 40mm L

- 2-1/2 inch (63 mm) ID, lift arm pivot

2шт.

23

L55747

BUSHING

- 2-1/8 inch (53 mm) OD, lift cylinder to lift arm

2шт.

24

L50509

BUSHING,51.104mm ID x 63.5mm OD x 38.1mm L

- 2 inch (51 mm) ID, bucket bellcrank and bucket

4шт.

25

L55302

DIPPER

BELLCRANK - grapple bucket

2шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

6шт.

27

L107790

PIN,38.1mm OD x 172.72mm L

- bellcrank to lift arm

2шт.

28

131-53

NUT,1 1/2"-12

NUT - hex, self-locking, 1-1/2 inch NF

2шт.

29

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

30

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

31

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

6шт.

32

L105077

LINK

- bucket

2шт.

33

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- used in right-hand and left-hand links

4шт.

34

L47224

WASHER

- special, hardened

2шт.

35

L112502

PIN,38.1mm OD x 159mm L

- bellcrank to grapple bucket link and grapple bucket cylinder

4шт.

36

R17756

ROD,12.7mm OD x 109.54mm L

PIN - bellcrank

4шт.

37

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.
