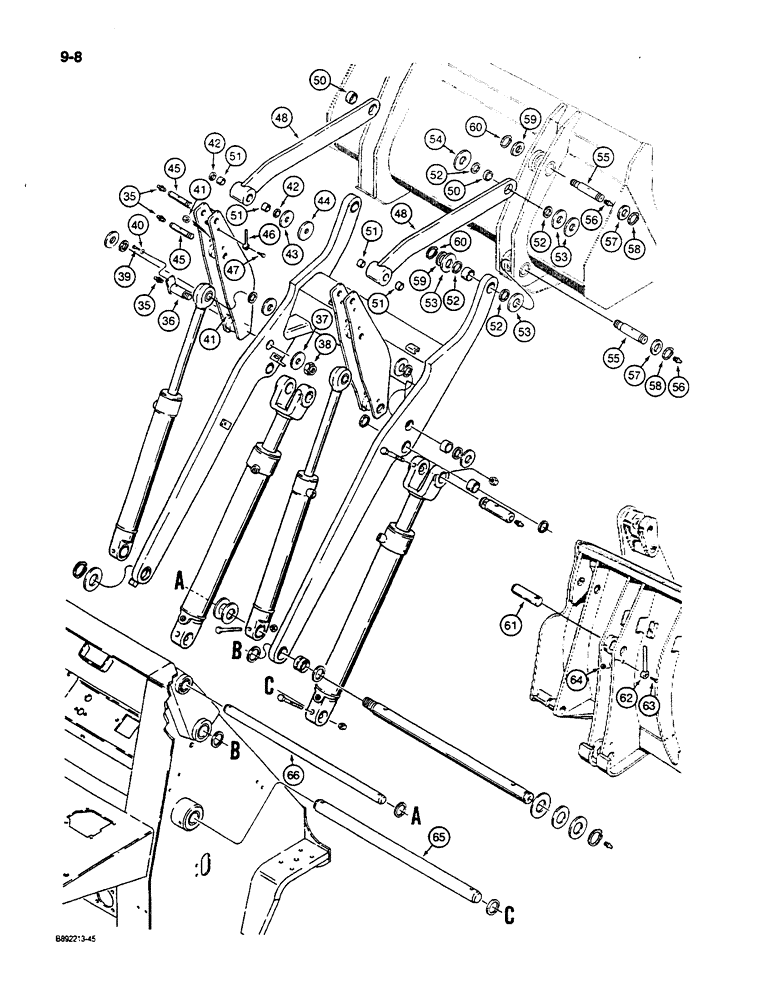

Запчасти Case W14C (9-08) - LOADER LIFT FRAME, MODELS WITH STANDARD OR CLAM BUCKET (09) - CHASSIS/ATTACHMENTS

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

6шт.

36

L114907

PIN

- bellcrank to lift arm

2шт.

37

D36478

WASHER

- special, flat, hardened

2шт.

38

131-53

NUT,1 1/2"-12

NUT - hex, self-locking, 1-1/2 inch NF

2шт.

39

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

40

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

41

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

6шт.

42

L112480

WASHER

WIPER - seal, 1-1/2 ID x 1-7/8 OD x 1/8 inch thick

4шт.

43

A11990

WASHER

- special, flat

1шт.

44

L47224

WASHER

- special, flat, hardened

2шт.

45

L112502

PIN,38.1mm OD x 159mm L

- bellcrank to bucket link and bucket cylinder

4шт.

46

R17756

ROD,12.7mm OD x 109.54mm L

LOCK - pin retaining, bellcrank

4шт.

47

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

48

L114734

LINK

- standard bucket

2шт.

49

L113552

LINK ASSY.

LINK - clam bucket, not shown

2шт.

50

L50539

BUSHING,51.05mm ID x 63.5mm OD x 25.4mm L

- L114734 or L113552, Serial Range: link-bucket

1шт.

51

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

- L114734 or L113552, Serial Range: link-bellcrank

2шт.

52

L113520

SEAL

WIPER - seal, 2 ID x 2-1/2 OD x 3/16 inch thick

8шт.

53

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 1/8 inch

1шт.

54

L76643

SPACER

- link, 3 OD x 3/8 inch thick

2шт.

55

L113368

PIN,50.8mm OD x 168mm L

- bucket, models with standard bucket

4шт.

56

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

4шт.

57

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 1/8 inch

4шт.

58

D26919

SNAP RING,#200, Ext

Ring, Snap, , outer, pin #200, Ext

4шт.

59

195-2156

WASHER,1 13/16" x 2 3/4" x .109"

- flat, 1-13/16 x 2-3/4 x 1/8 inch

4шт.

60

D25280

SNAP RING,#175, Ext

Ring, Snap, , inner, pin #175, Ext

4шт.

61

L123938

PIN

- bucket, use only on models with clam bucket

4шт.

62

R17756

ROD,12.7mm OD x 109.54mm L

- retaining, mounting pin, bucket to bucket link and lift arm

1шт.

63

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

64

131-1402

THIN NUT,1/2"-13, GB, Thin

NUT, LOCK, 1/2"-13, GB, Thin

4шт.

65

L112747

SHAFT

- pivot, lift cylinder

1шт.

66

L114271

SHAFT

- pivot, bucket cylinder

1шт.
