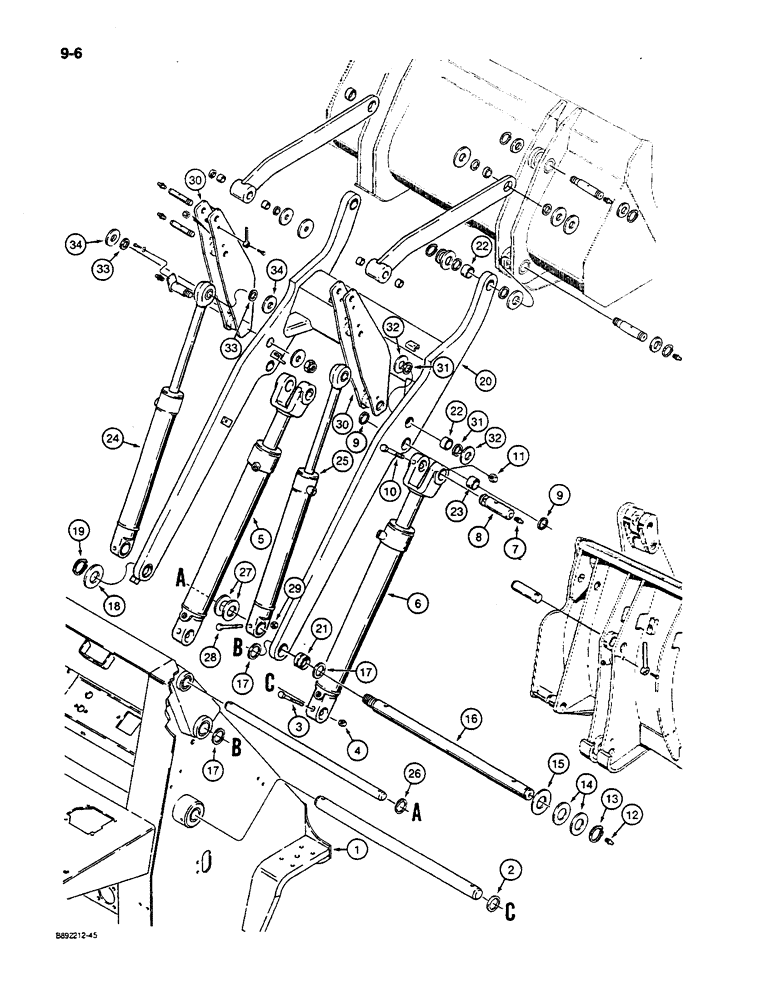

Запчасти Case W14C (9-06) - LOADER LIFT FRAME, MODELS WITH STANDARD OR CLAM BUCKET (09) - CHASSIS/ATTACHMENTS

1

L127527

CHASSIS

FRAME ASSEMBLY - front, see Figure 9-32 for component parts

1шт.

2

L113522

SEAL

WIPER - seal, 2-1/2 ID x 3 OD x 3/16 inch thick

2шт.

3

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

2шт.

4

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

5

G107575

CYLINDER

ASSEMBLY - lift, left-hand, parts list Figure 8-30

1шт.

6

G107576

CYLINDER

ASSEMBLY - lift, right-hand, parts list Figure 8-30

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

2шт.

8

L113816

PIN

- mounting, lift cylinder to lift arm frame

2шт.

9

L112483

SEAL

WIPER - seal, 2-1/4 ID x 2-3/4 OD x 3/16 inch thick

4шт.

10

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

2шт.

11

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

2шт.

13

L16015

RING

- snap, pin retaining, lift frame

1шт.

14

74298

WASHER

SPACER - hardened, 2-1/2 ID x 3-9/16 OD x 1/8 inch thick

1шт.

15

L47700

WASHER

- special, flat

1шт.

16

L112499

SHAFT

- lift frame pivot

1шт.

17

L113522

SEAL

WIPER - seal, 2-1/2 ID x 3 OD x 3/16 inch thick

6шт.

18

L115063

WASHER

- special, retaining

1шт.

19

L101691

RING, SNAP

RING - snap, lift arm

1шт.

L116980

ARM ASSY.

FRAME ASSEMBLY - loader lift

1шт.

20

NSS

NOT SOLD SEPARAT

FRAME - loader lift

1шт.

21

L112478

BUSHING

- lift arm pivot

2шт.

22

L112479

BUSHING,51.05mm ID x 63.5mm OD x 33.1mm L

- lift arm, bucket bellcrank and bucket

4шт.

23

L112489

BUSHING,57.4mm ID x 69.85mm OD x 33.1mm L

- lift cylinder to lift arm

2шт.

24

G108393

CYLINDER

ASSEMBLY - bucket, left-hand, parts list Figure 8-34

1шт.

25

G108394

CYLINDER

ASSEMBLY - bucket, right-hand, parts list Figure 8-34

1шт.

26

L113520

SEAL

WIPER - seal, 2 ID x 2-1/2 OD x 3/16 inch thick

2шт.

27

L11917

WASHER

SPACER - flat, hardened, 2-1/32 ID x 3-1/2 inch OD

1шт.

28

426-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

- hex, 3/8 NC x 4-1/2 inch, grade 8

2шт.

29

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

30

L114948

CRANK LEVER

BELLCRANK - bucket

2шт.

31

L113520

SEAL

WIPER - seal, 2 ID x 2-1/2 OD x 3/16 inch thick

4шт.

32

D37449

SHIM,.0747" Thk

WASHER - flat, 2-1/32 ID x 4 OD x 1/16 inch thick

4шт.

33

L112480

WASHER

WIPER - seal, 1-1/2 ID x 1-7/8 OD x 1/8 inch thick

4шт.

34

A11990

WASHER

- flat, 1-1/2 ID x 2-1/2 OD x 1/16 inch thick

1шт.
