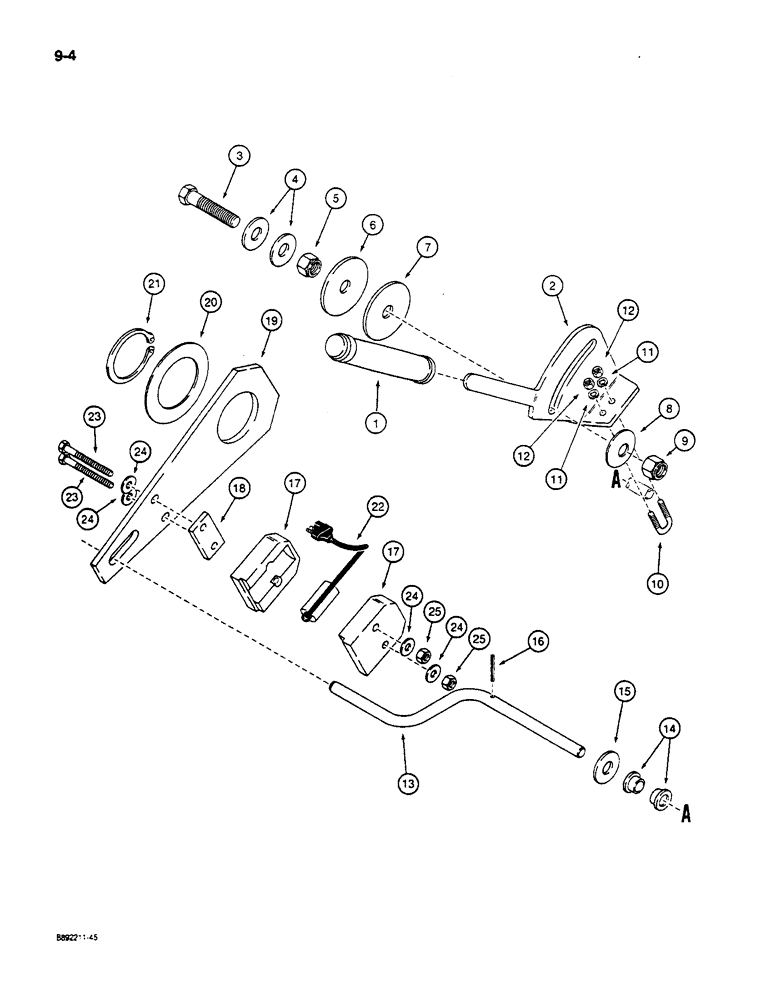

Запчасти Case W14C (9-04) - LOADER BUCKET HEIGHT CONTROL (09) - CHASSIS/ATTACHMENTS

1

L52477

GRIP

- height control lever

1шт.

2

L116795

LEVER

- height control

1шт.

3

113-531

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd

1шт.

4

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

5

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

6

D60251

WASHER

- special, flat

1шт.

7

D139323

FRICTION WASHER

DISC - friction

1шт.

8

R14771

WASHER

SPRING - Belleville, lever

1шт.

9

131-1402

THIN NUT,1/2"-13, GB, Thin

NUT, LOCK, 1/2"-13, GB, Thin

1шт.

10

H166421

HARDWARE

U-BOLT - special, lever mounting

1шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

13

L114693

ROD

- height control

1шт.

14

L114854

BUSHING

- flanged, 1/2" ID, rod

2шт.

15

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

1шт.

16

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, 1/8" x 1 1/4", Slotted

1шт.

17

L117005

CLAMP

- switch

2шт.

18

L116982

SPACER

- plate

1шт.

19

L114696

BRACKET

- height control

1шт.

20

H334516

SHIM,.031" Thk

(2-1/4" ID x 3-1/2" OD) .031" Thk

1шт.

21

F40807

SNAP RING,#225, Ext

Ring, Snap, , bracket #225, Ext

1шт.

22

R47120

SWITCH

- height control

1шт.

23

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

24

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

4шт.

25

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4 inch NC

2шт.
