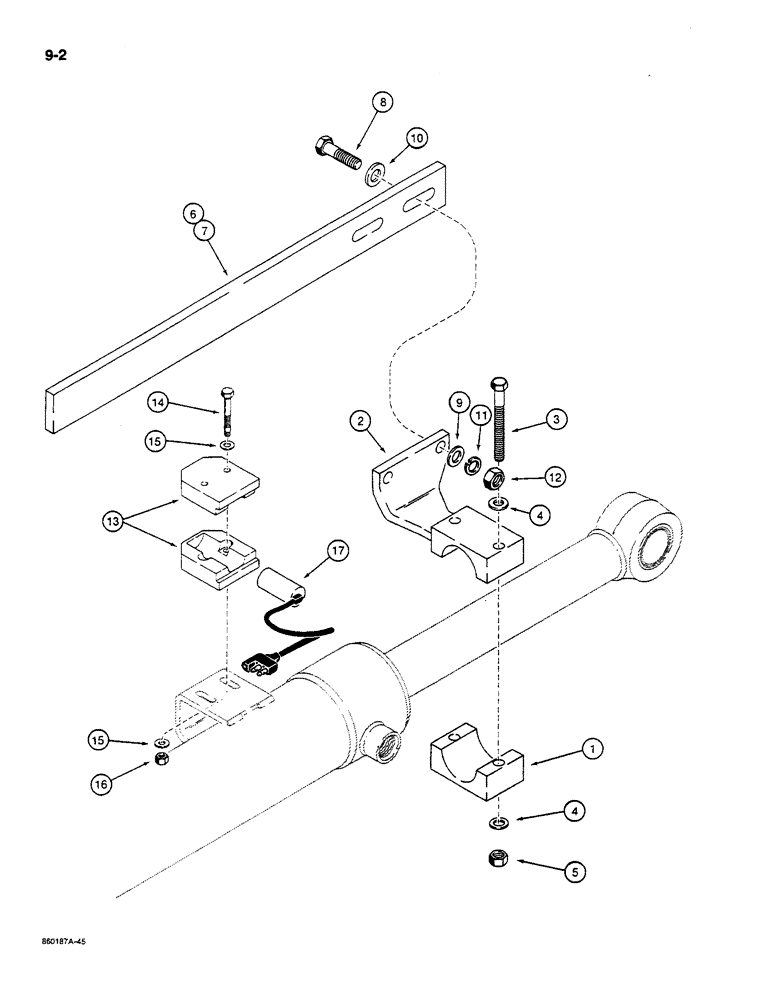

Запчасти Case W14C (9-02) - LOADER BUCKET RETURN-TO-DIG (09) - CHASSIS/ATTACHMENTS

1

L118371

CLAMP

- lower, cylinder rod

1шт.

2

L118372

BRACKET

CLAMP - bracket, upper

1шт.

3

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

2шт.

4

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32 inch, hardened

4шт.

5

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8 inch NC

2шт.

6

L118153

BAR

- sensing, return-to-dig, 22-5/8 inch (575 mm) long

1шт.

7

L123850

BAR

- sensing, return-to-dig 19-1/2 inch (495 mm) long, used on feedlot special units

1шт.

8

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

9

R24718

WASHER

- special, flat, hardened

2шт.

10

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

13

L117005

CLAMP

- switch

2шт.

14

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

15

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

4шт.

16

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4 inch NC

2шт.

17

R47120

SWITCH

- proximity

1шт.
