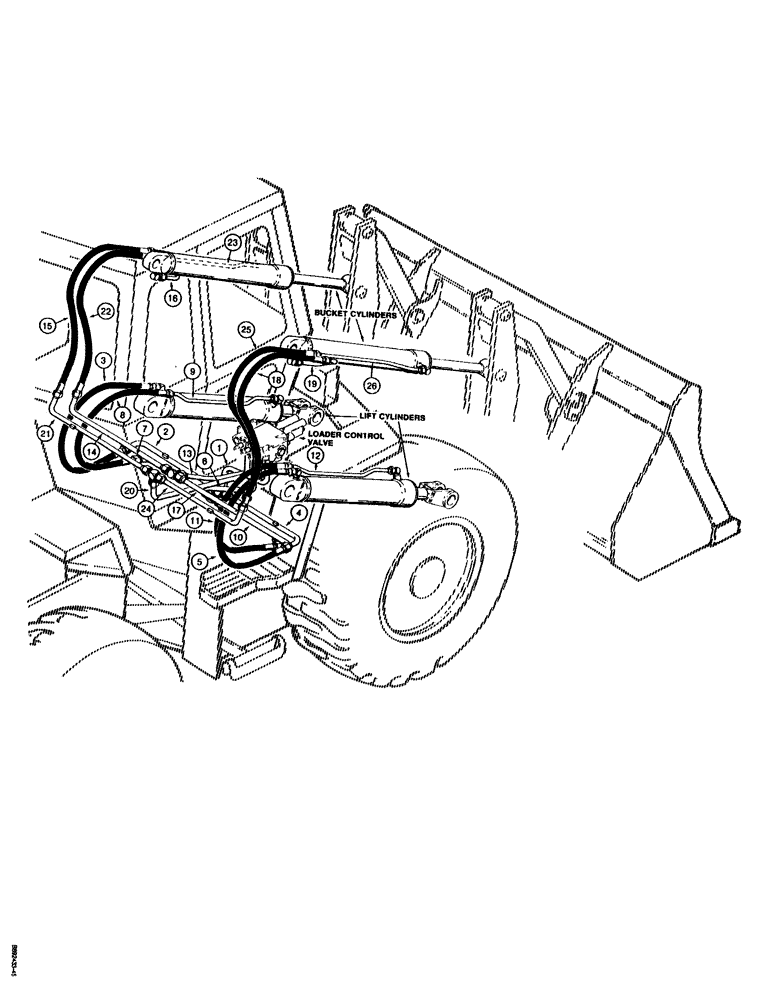

Запчасти Case W14C (1-16) - PICTORIAL INDEX, LOADER LIFT AND DUMP HYDRAULIC CIRCUITS (00) - PICTORIAL INDEX

1

Lift tube, "B" port to closed end of cylinder, Page 8-9

1шт.

2

Left-hand lift tube, tee to closed end of lift cylinder, Page 8-9

1шт.

3

Hose, left-hand lift tube to closed end of lift cylinder, Page 8-9

1шт.

4

Right-hand lift tube, tee to closed end of lift cylinder, Page 8-9

1шт.

5

Hose, right-hand lift tube to closed end of lift cylinder, Page 8-9

1шт.

6

Lift tube, "A" port to rod end of cylinder, Page 8-9

1шт.

7

Left-hand lift tube, tee to rod end of lift cylinder, Page 8-9

1шт.

8

Hose, left-hand lift tube to rod end of lift cylinder, Page 8-9

1шт.

9

Tube, at rod end of left-hand lift cylinder, Page 8-9

1шт.

10

Right-hand lift tube, tee to rod end of lift cylinder, Page 8-9

1шт.

11

Hose, right-hand lift tube to rod end of lift cylinder, Page 8-9

1шт.

12

Tube, at rod end of right-hand lift cylinder, Page 8-9

1шт.

13

Bucket tube, "B" port to rod end of cylinder, Page 8-11

1шт.

14

Left-hand bucket tube, tee to rod end of bucket cylinder, Page 8-11

1шт.

15

Hose, left-hand bucket tube to closed end of bucket cylinder, Page 8-11

1шт.

16

Tube, at closed end of left-hand bucket cylinder, Page 8-11

1шт.

17

Right-hand bucket tube, tee to rod end of bucket cylinder, Page 8-11

1шт.

18

Hose, right-hand bucket tube to closed end of bucket cylinder, Page 8-11

1шт.

19

Tube, at closed end of right-hand bucket cylinder, Page 8-11

1шт.

20

Bucket tube, "A" port to closed end of cylinder, Page 8-11

1шт.

21

Left-hand bucket tube, tee to closed end of bucket cylinder, Page 8-11

1шт.

22

Hose, left-hand bucket tube to rod end of bucket cylinder, Page 8-11

1шт.

23

Tube, at rod end of left-hand bucket cylinder, Page 8-11

1шт.

24

Right-hand bucket tube, tee to closed end of bucket cylinder, Page 8-11

1шт.

25

Hose, right-hand bucket tube to rod end of bucket cylinder, Page 8-11

1шт.

26

Tube, at rod end of right-hand bucket cylinder, Page 8-11

1шт.
