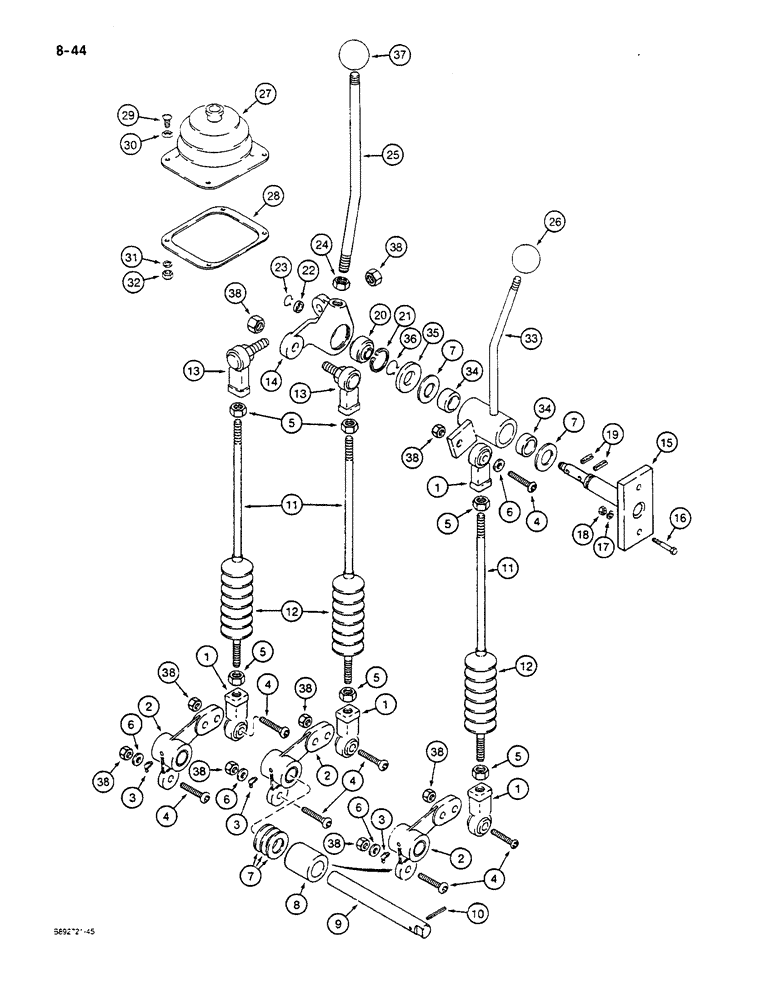

Запчасти Case W14C (8-44) - LOADER CONTROL LINKAGE AND LEVERS, SINGLE (COMBINATION) LEVER AND AUXILIARY LEVER (08) - HYDRAULICS

1

L115782

BALL JOINT

END - rod, female

2-4шт.

2

L116427

ARM ASSY.

BELLCRANK - lower, control rod

2-3шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2-3шт.

4

61-75024

HEX SOC SCREW,Btn Hd, 1/2"-13 x 1 1/2"

BOLT - hex socket button head, 1/2 NF x 1-1/2 inch, grade 8 (replaces 164-173)

4-7шт.

5

129-165

JAM NUT,Jam, 1/2"-20, G5

4-6шт.

6

L116413

SPACER

- rod mounting bolt

1шт.

7

L115918

WASHER

SPACER - nylon, bellcranks and auxiliary control lever

1шт.

8

L116557

SPACER

- bellcrank pivot shaft, two spool valve models

1шт.

Ref: #8 Per ECN # S9126-13 238-5021 O-ring will be added by Spacer. 31-May-96

1шт.

9

L116346

PIN

SHAFT - pivot, lower, bellcranks

1шт.

10

138-323

LOCK PIN,1/8" x 1 3/4", Slotted

Pin, 1/8" x 1 3/4", Slotted

1шт.

11

L115930

ROD

- control

2-3шт.

12

L114003

BOOT

- control rod

2-3шт.

13

L116002

ROD

JOINT - ball, bucket and lift control rods

2шт.

14

L116011

ARM ASSY.

BELLCRANK - bucket and lift control levers

1шт.

15

L116421

PIN ASSY.

SHAFT - bellcrank and auxiliary control lever mounting

1шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

138-91

LOCK PIN,3/16" x 11/16", Slotted

PIN, 3/16" x 11/16", Slotted

2шт.

20

L116003

BUSHING

- self-aligning, bellcrank

1шт.

21

L116168

SNAP RING,1.562", Int, #156

Ring, Snap, , bushing 1.562", Int, #156

1шт.

22

L56063

BLOCK

RING - wear, bellcrank

1шт.

23

A11538

SNAP RING,#50, Ext

Ring, Snap, , wear ring #50, Ext

1шт.

24

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex jam, 5/8 inch NF

1шт.

25

L118178

LEVER

- control, bucket and lift

1шт.

26

A23885

KNOB

- auxiliary control lever

1шт.

27

L105188

INSULATOR BLOCK

BOOT - bucket and lift control lever

1шт.

28

L117582

CAP

RETAINER - boot

1шт.

29

179-163

SCREW,Cross Oval Hd, #10 - 24 x 1"

- machine, oval Phillips head, No. 10 NC x 1 inch

4шт.

30

F43576

WASHER

- special shoulder, finishing, No. 10

4шт.

31

495-21025

WASHER

- flat, 1/4 x 9/16 x 3/64 inch

4шт.

32

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.

33

L116426

LEVER ASSY.

LEVER - control, auxiliary

1шт.

34

L115781

BUSHING

- control lever

2шт.

35

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, auxiliary control lever retaining

1шт.

36

B18208

SNAP RING,#100, Ext

auxiliary control lever #100, Ext

1шт.

37

L56064

KNOB

- bucket and lift control lever

1шт.

38

425-148

JAM NUT,Jam, 1/2"-13, G5

- light hex thin, 1/2 inch NF (Replaces 131-34)

6-9шт.
