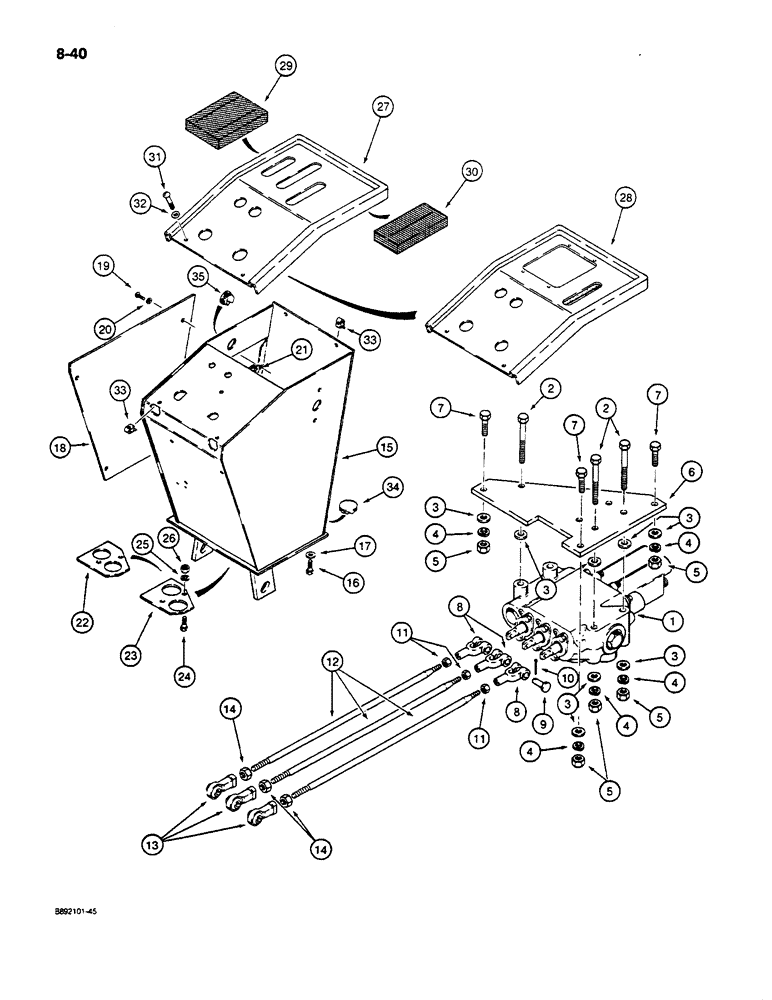

Запчасти Case W14C (8-40) - LOADER CONTROL LINKAGE, VALVE TO TOWER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, two or three spool, parts list Figure 8-16 or 8-18

1шт.

2

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

3шт.

3

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

9шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

6

L112631

PLATE

- control valve mounting

1шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

8

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - adjustable yoke, 5/16 inch NF, female thread

2-3шт.

9

141-53

CLEVIS PIN,5/16" x .940"

hardened 5/16" x .940"

2-3шт.

10

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2-3шт.

11

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

2-3шт.

12

L116289

ROD

- control valve to linkage at control tower

2-3шт.

13

L115782

BALL JOINT

END - rod, female

2-3шт.

14

425-158

JAM NUT,Jam, 1/2"-20, G5

2-3шт.

15

L127498

BOOM

TOWER - control, loader linkage and levers

1шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

17

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

18

L116419

DOOR

COVER - access, inner side of control tower

1шт.

19

164-401

HEX SOC SCREW,Btn Hd, 1/4" - 20 x 1/2"

BOLT - hex socket button head, No. 4 NC x 1/2 inch, grade 8

4шт.

20

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21

131-610

SPRING NUT,U, Ret, 1/4"-20

4шт.

22

L117860

PLATE

- control tower base, used on models with dual lever lift and bucket control

1шт.

23

L117880

COVER

PLATE - control tower base, used on models with single lever lift and bucket control

1шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

25

492-11038

LOCK WASHER,3/8"

2шт.

26

425-106

NUT,3/8"-16, Cl 5

2шт.

27

L127495

COVER ASSY

COVER - control tower, top, models with dual lever loader control, includes decal shown on Figure 9-82

1шт.

28

L127492

COVER ASSY

COVER - control tower, top, models with single lever loader control, includes decal shown on Figure 9-82

1шт.

29

L116095

SEAL

- foam, levers, models with dual lever loader control only

1шт.

30

L116096

SEAL

- foam, auxiliary lever

1шт.

31

179-166

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, oval Phillips head, No. 10 NC x 3/4 inch

4шт.

32

F43576

WASHER

- special shoulder, finishing

4шт.

33

131-700

NUT

- U-type, No. 10 inch NC

4шт.

34

353-415

PLUG,Dome, 1.500" hole, Nylon

- nylon, 1-1/2 inch, control tower base, if used

1шт.

35

L116169

PLUG

- special, upper left-hand side of control tower, models with single lever loader control only

1шт.
