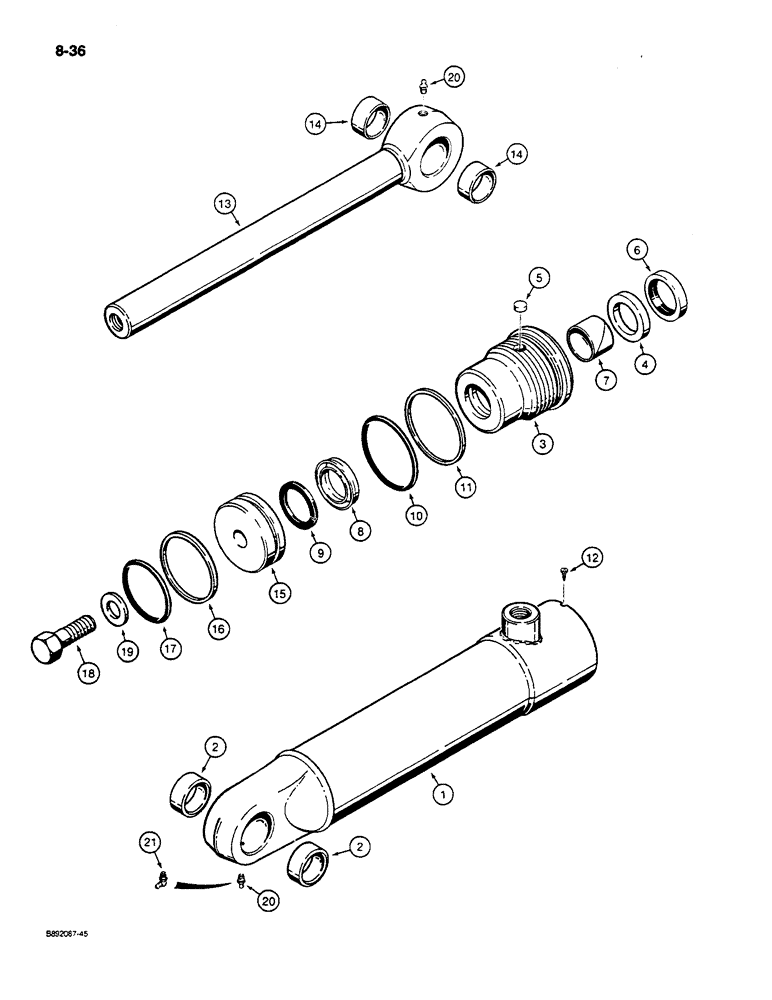

Запчасти Case W14C (8-36) - GRAPPLE CYLINDER (08) - HYDRAULICS

G100723

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3 inch (76 mm) ID x 10-1/2 inch (266 mm) stroke

1шт.

1

G100677

TUBE,18.13" L

- cylinder

1шт.

2

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

2шт.

G104222

GLAND

ASSEMBLY - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

5

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G109418.

1шт.

7

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of seal kit P/N G109418.

1шт.

8

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of seal kit P/N G109418.

1шт.

9

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G109418.

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland seal

1шт.

Part of seal kit P/N G109418.

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland

1шт.

Part of seal kit P/N G109418.

1шт.

12

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex head slotted, self-tapping, No. 8 NC x 3/8 inch, if used

1шт.

13

G100679

ROD

- piston, 1-1/2 inch (38 mm) diameter

1шт.

14

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod

2шт.

15

G104108

PISTON

- cylinder, single groove

1шт.

16

G32034

RING

- backup, piston

1шт.

Part of seal kit P/N G109418.

1шт.

17

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- piston

1шт.

Part of seal kit P/N G109418.

1шт.

18

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long, supplied with cylinder

2шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Used on closed end of cylinder for service 90º, 1/8" NPT x .84" lg

1шт.

G109418

GASKET KIT

KIT - seal, Includes: Ref. 6 - 11, 16 and 17

1шт.
