Запчасти Case W14C (8-28) - EQUIPMENT OIL FILTER (08) - HYDRAULICS

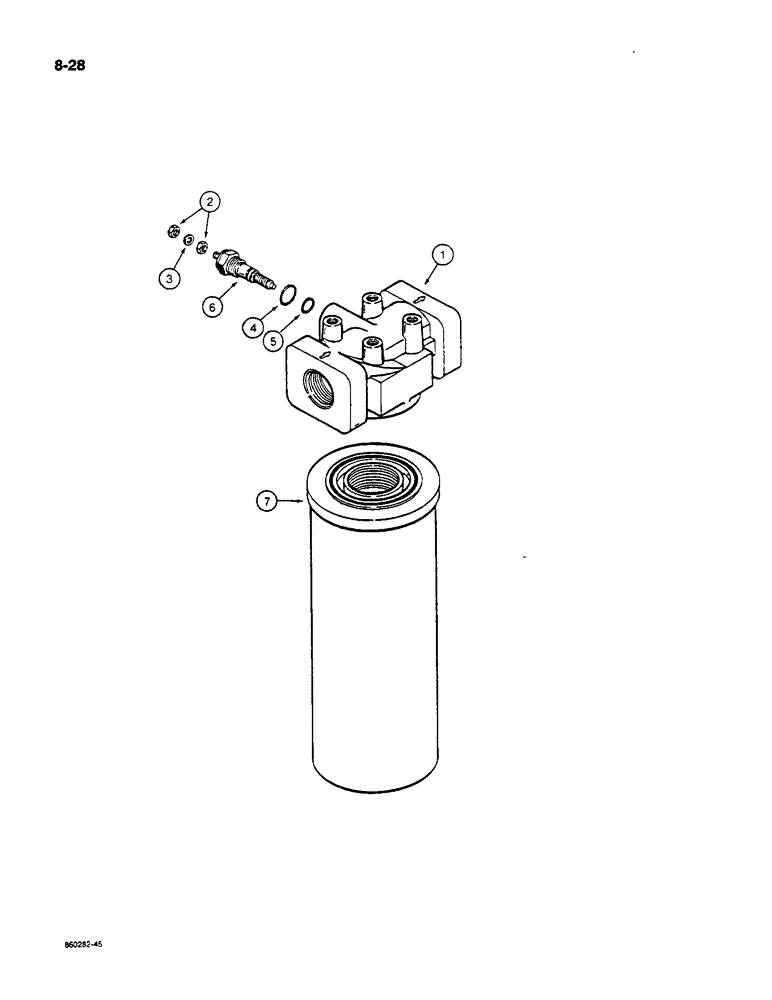

Схема запчастей Case W14C - (8-28) - EQUIPMENT OIL FILTER (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

A167610

FILTER

ASSEMBLY - hydraulic oil

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

N6755

PRESSURE SWITCH

SENDER - filter restriction indicator

1шт.

N6941

KIT

- repair, indicator

1шт.

2

129-37

NUT,#10-32

2шт.

3

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Seal, Piston

1шт.

6

NSS

NOT SOLD SEPARAT

SWITCH - sender

1шт.

7

N9086

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Sender

1шт.

Выбрано товаров: 10
