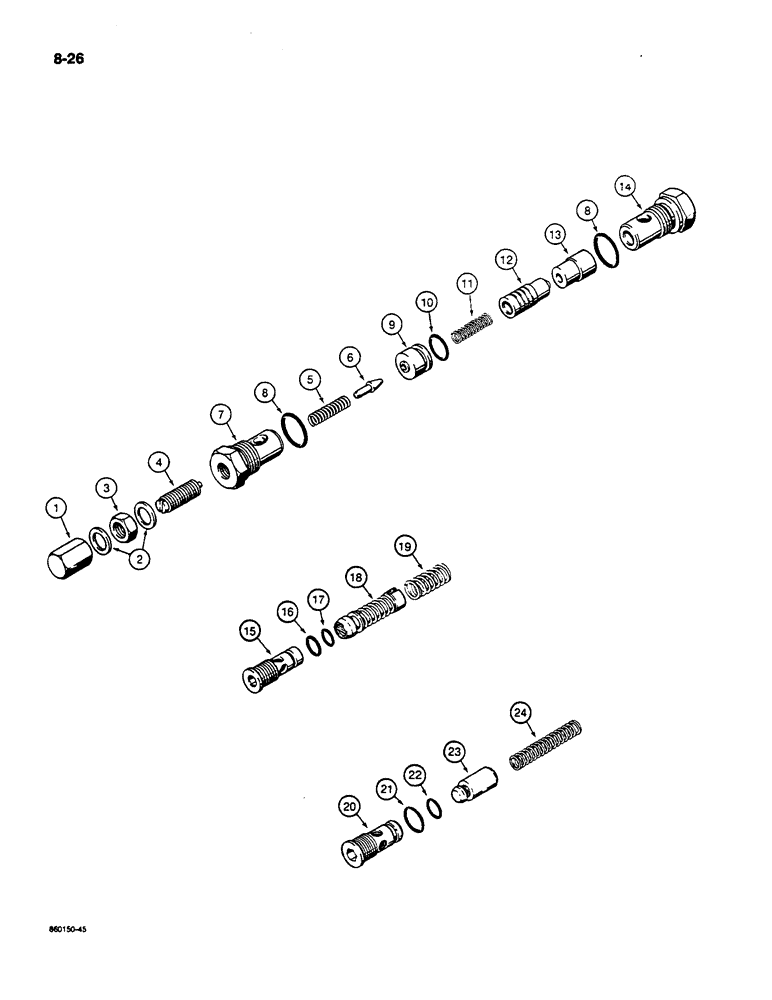

Запчасти Case W14C (8-26) - RELIEF VALVES (08) - HYDRAULICS

1

L32299

NUT

- special, hex, cap, main relief valve

1шт.

2

D26763

WASHER

- special, main relief valve

2шт.

3

129-165

JAM NUT,Jam, 1/2"-20, G5

- hex, lock, 1/2 inch NF, main relief valve

1шт.

4

L32298

ADJUSTMENT SCREW,1/2" - 20 x 1.50"

- special, main relief valve

1шт.

5

D24763

SPRING

- plunger, main relief valve

1шт.

6

D24762

VALVE

PLUNGER - relief valve, main

1шт.

7

D82718

BODY

CAP - valve, main relief

1шт.

8

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- cap and plug, main relief valve

2шт.

9

D82716

VALVE

SEAT - plunger, main relief valve

1шт.

10

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- seat, main relief valve

1шт.

11

D82724

SPRING

- poppet, main relief valve

1шт.

12

D72745

VALVE

POPPET - relief valve, main

1шт.

13

D82715

VALVE

SEAT - poppet, main relief valve

1шт.

14

D82719

PLUG

- relief valve, main

1шт.

N13527

VALVE

CARTRIDGE ASSEMBLY - A port, bucket spool, circuit relief valve

1шт.

N6716

VALVE

CARTRIDGE ASSEMBLY - A and B ports, auxiliary spool, B port, bucket spool, circuit relief valve

1шт.

15

N6717

PLUG

- seat, circuit relief valve

1шт.

16

D24754

GASKET

O-RING - plug, large, circuit relief valve

1шт.

17

N7330

O-RING

- plug, small, circuit relief valve

1шт.

18

NSS

NOT SOLD SEPARAT

CARTRIDGE - relief valve, circuit

1шт.

19

N6594

VALVE SPRING

SPRING - relief valve, circuit

1шт.

20

D83128

PLUG

SEAT - check valve

1шт.

21

D24754

GASKET

O-RING - seat, large, check valve

1шт.

22

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- seat, small, check valve

1шт.

23

D83129

VALVE

PISTON - check valve

1шт.

24

D24774

SPRING

- check valve

1шт.
