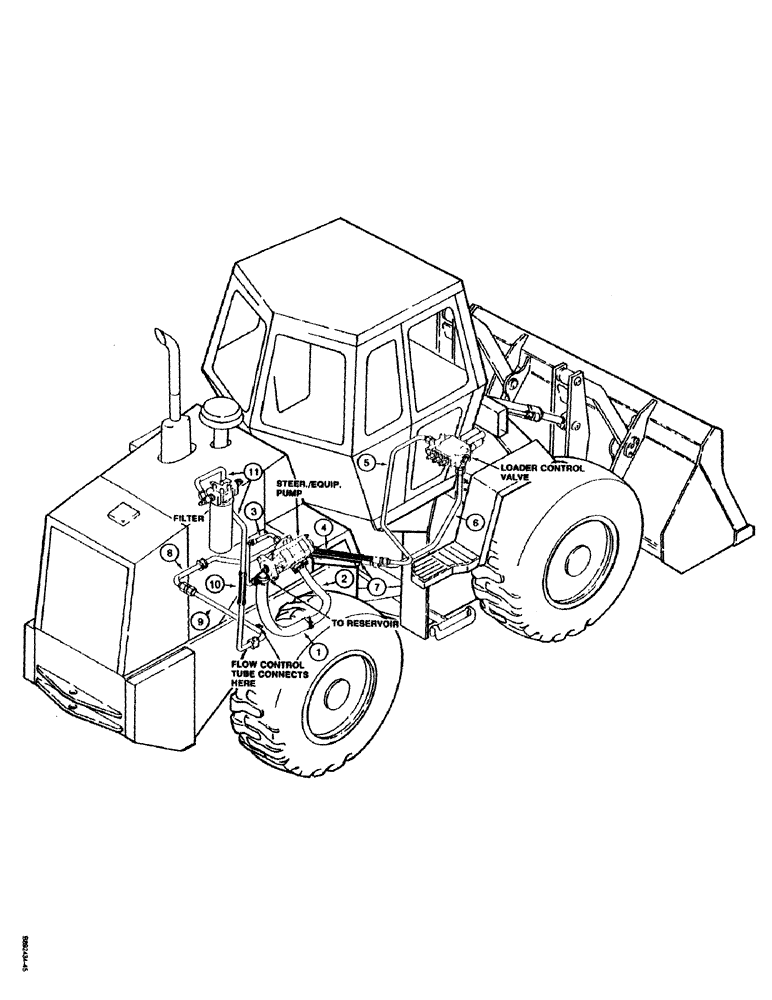

Запчасти Case W14C (1-14) - PICTORIAL INDEX, SUPPLY AND RETURN HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Supply hose, hydraulic reservoir to steering/equipment pump, Page 8-5

1шт.

2

Supply tube, hose at reservoir to steering/equipment pump, Page 8-5

1шт.

3

Supply tube, steering/equipment pump to loader control valve, Page 8-5

1шт.

4

Supply hose, tube at pump to tube at loader control valve, Page 8-5

1шт.

5

Supply tube, at loader control valve, Page 8-5

1шт.

6

Return tube, at loader control valve, Page 8-7

1шт.

7

Return hose, tube at loader control valve to tubes to filter, Page 8-7

1шт.

8

Return tube, left-hand, to filter, Page 8-7

1шт.

9

Return tube, crossover, to filter, Page 8-7

1шт.

10

Return hose, crossover tube to tube at filter, Page 8-7

1шт.

11

Return tube, at filter, Page 8-7

1шт.
