Запчасти Case W14C (8-18) - LOADER CONTROL VALVE - THREE SPOOL (08) - HYDRAULICS

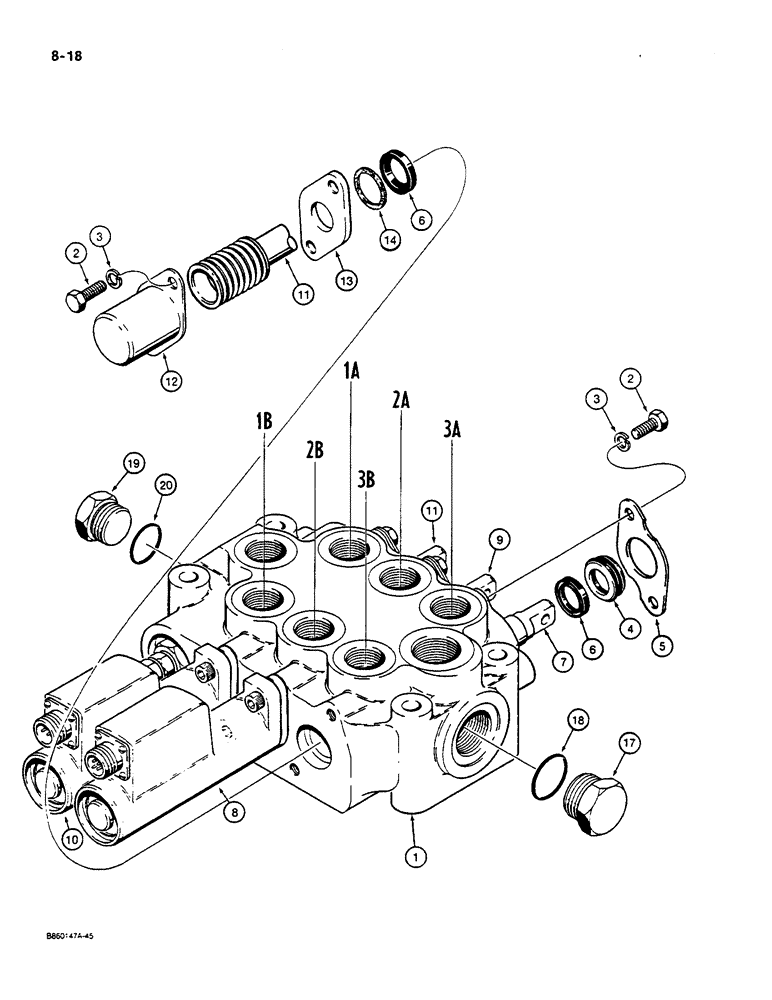

Схема запчастей Case W14C - (8-18) - LOADER CONTROL VALVE - THREE SPOOL (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

L115160

VALVE

CONTROL VALVE ASSEMBLY - loader, three spool

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

4

D82728

RING

WIPER - spool

3шт.

5

N8212

PLATE ASSY.

PLATE - retaining

3шт.

6

D82727

SEAL

- spool

6шт.

7

REF

INSTRUCTION

SPOOL ASSEMBLY - lift, parts list Figure 8-20

1шт.

8

D82929

VALVE

DETENT ASSEMBLY - lift, parts list Figure 8-22

1шт.

9

REF

INSTRUCTION

SPOOL ASSEMBLY - bucket, parts list Figure 8-20

1шт.

10

N13528

DETENT

ASSEMBLY - bucket, parts list Figure 8-24

1шт.

11

REF

INSTRUCTION

SPOOL ASSEMBLY - auxiliary, parts list Figure 8-20

3шт.

12

D24779

COVER

- spool, auxiliary

1шт.

13

D82722

PLATE

- retaining

1шт.

14

D82723

BACK-UP RING

RING - backup, seal

1шт.

15

REF

INSTRUCTION

VALVE ASSEMBLY - circuit relief, parts list Figure 8-26

4шт.

16

REF

INSTRUCTION

VALVE ASSEMBLY - main relief, parts list Figure 8-26

1шт.

17

273916

PLUG,Hex, 1-5/16" - 12 ORB

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

19

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

Выбрано товаров: 21
